Atlas 4 O4 Pro LR FPV Frame

Description

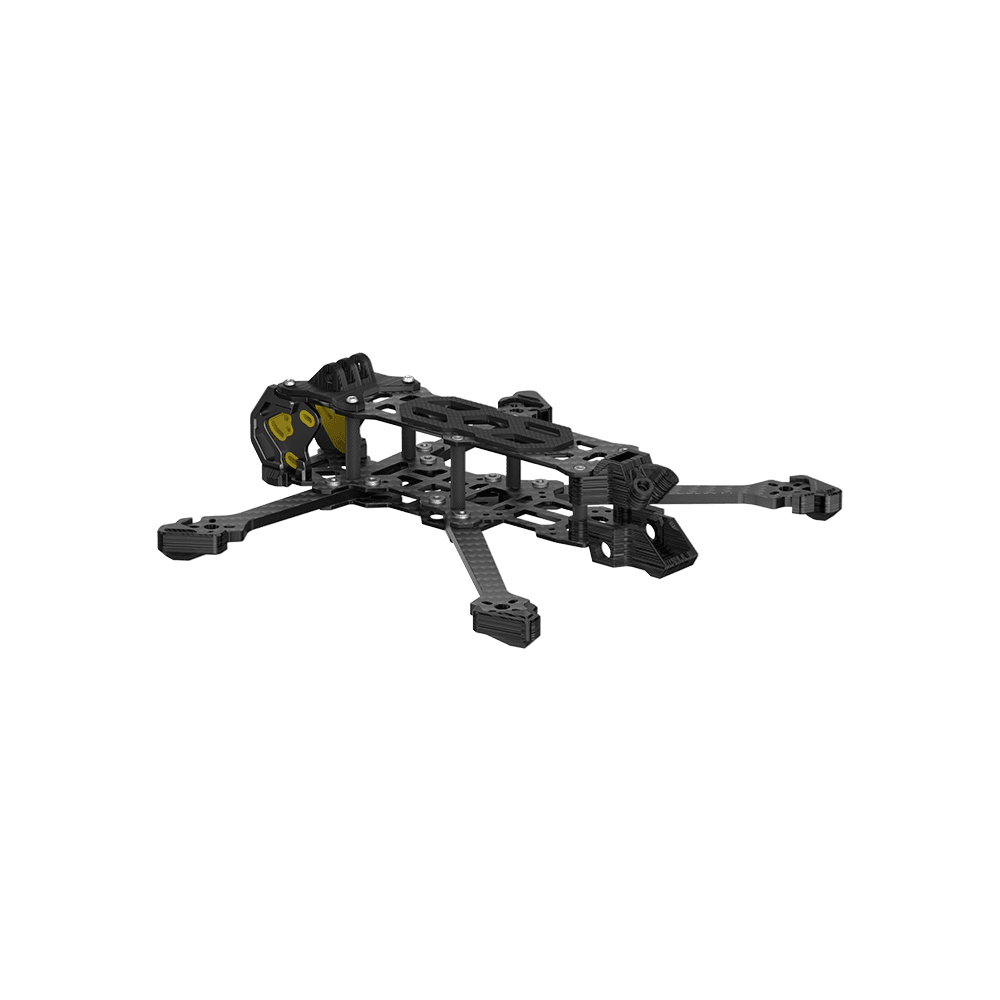

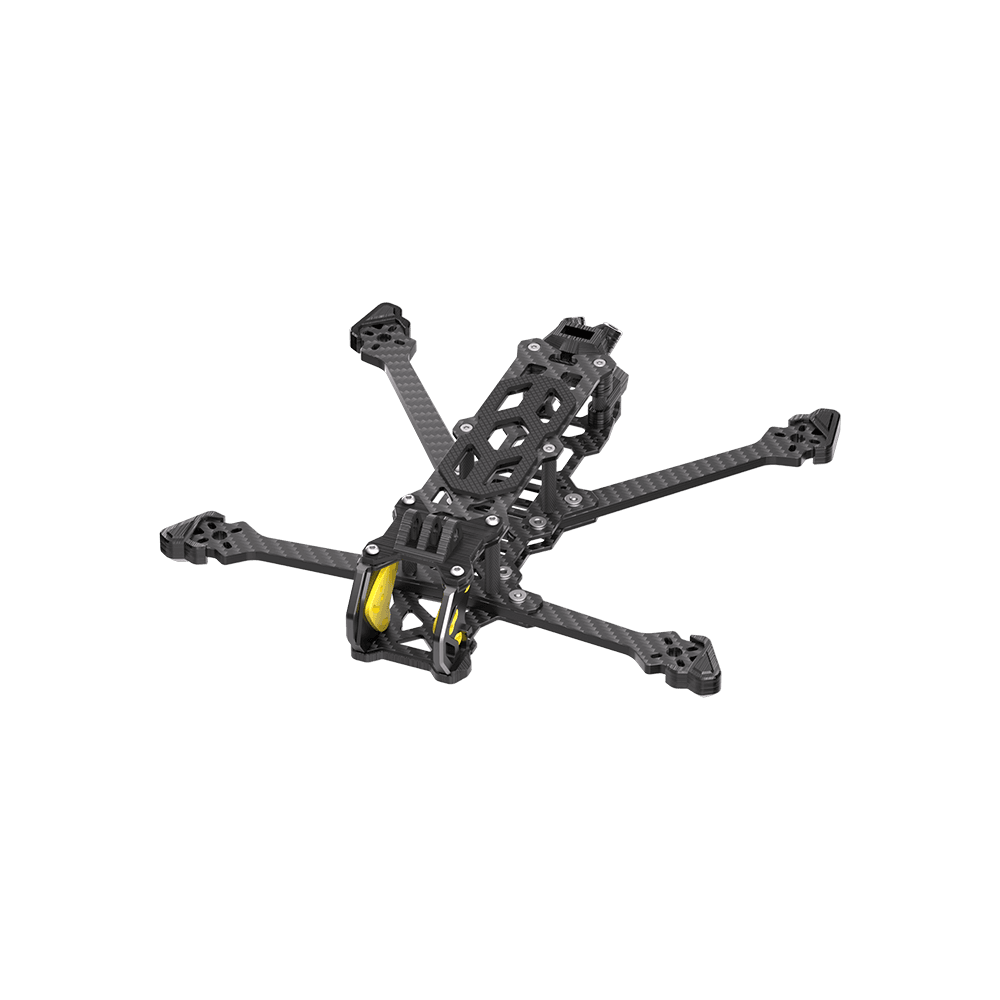

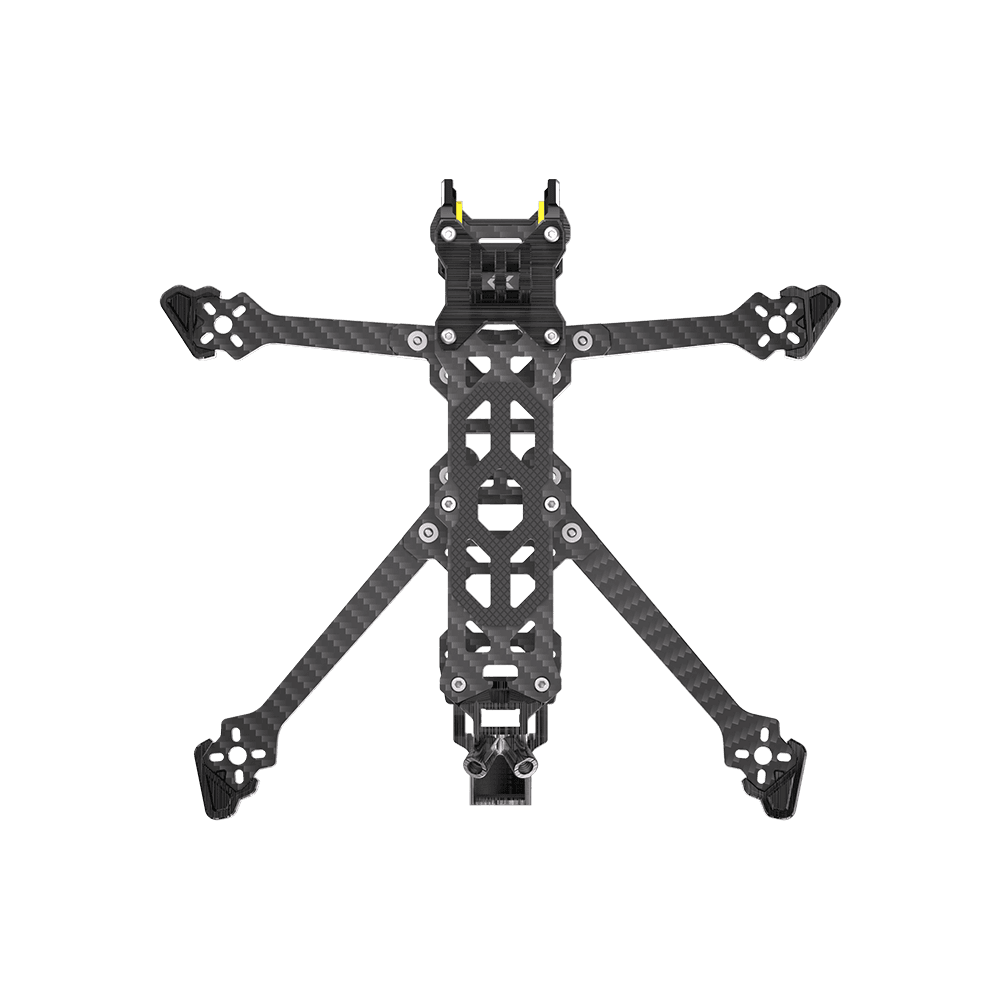

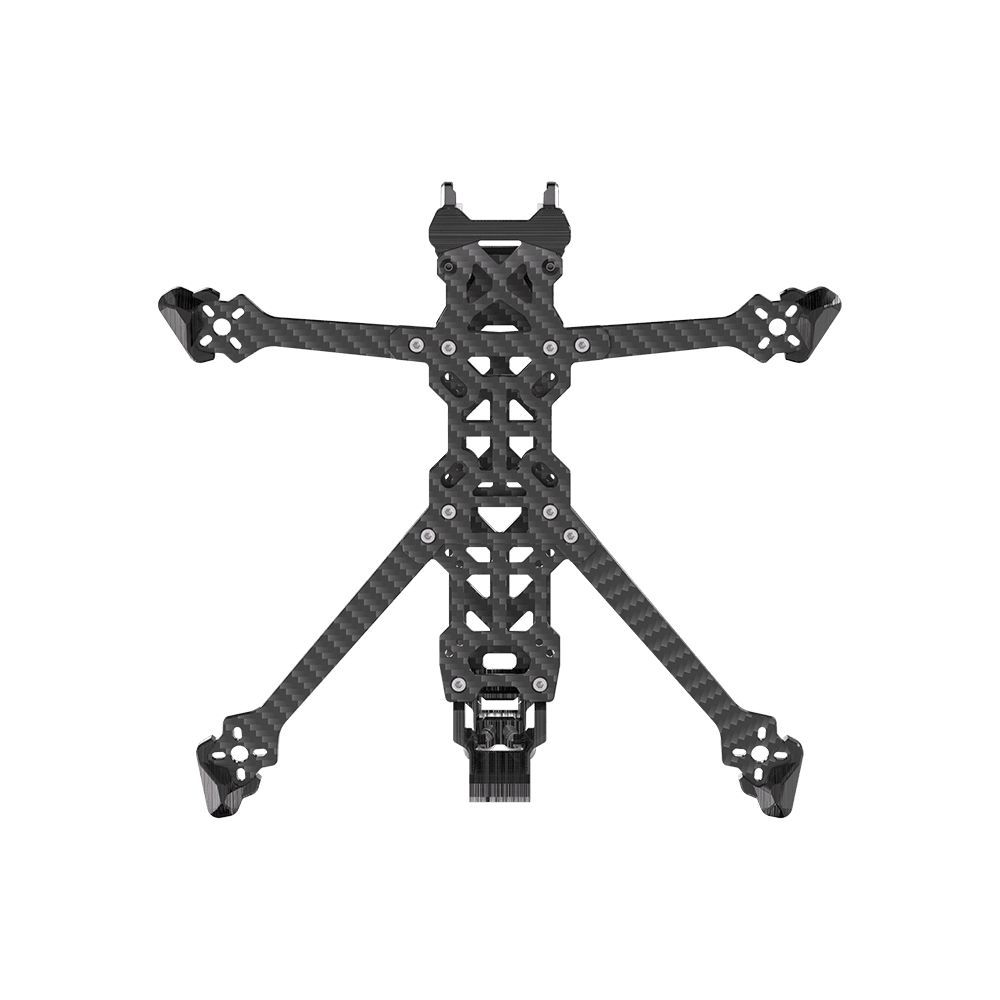

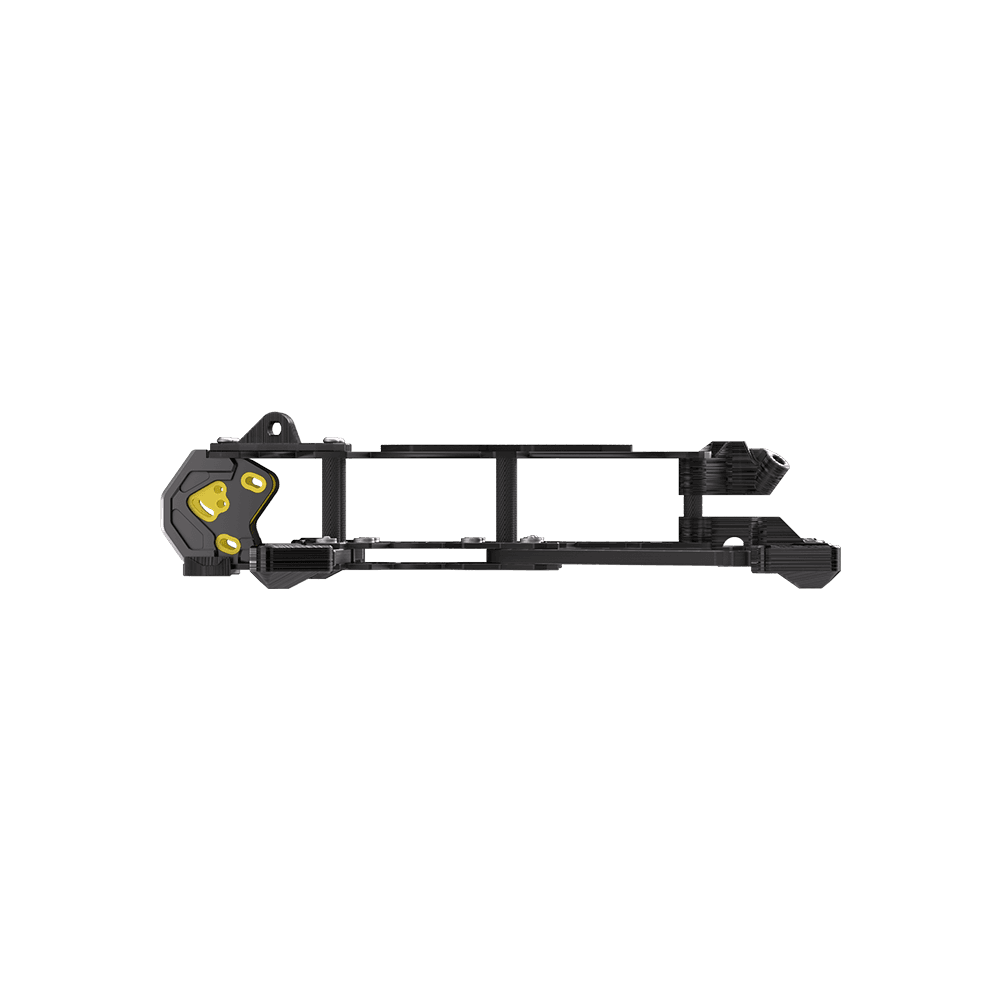

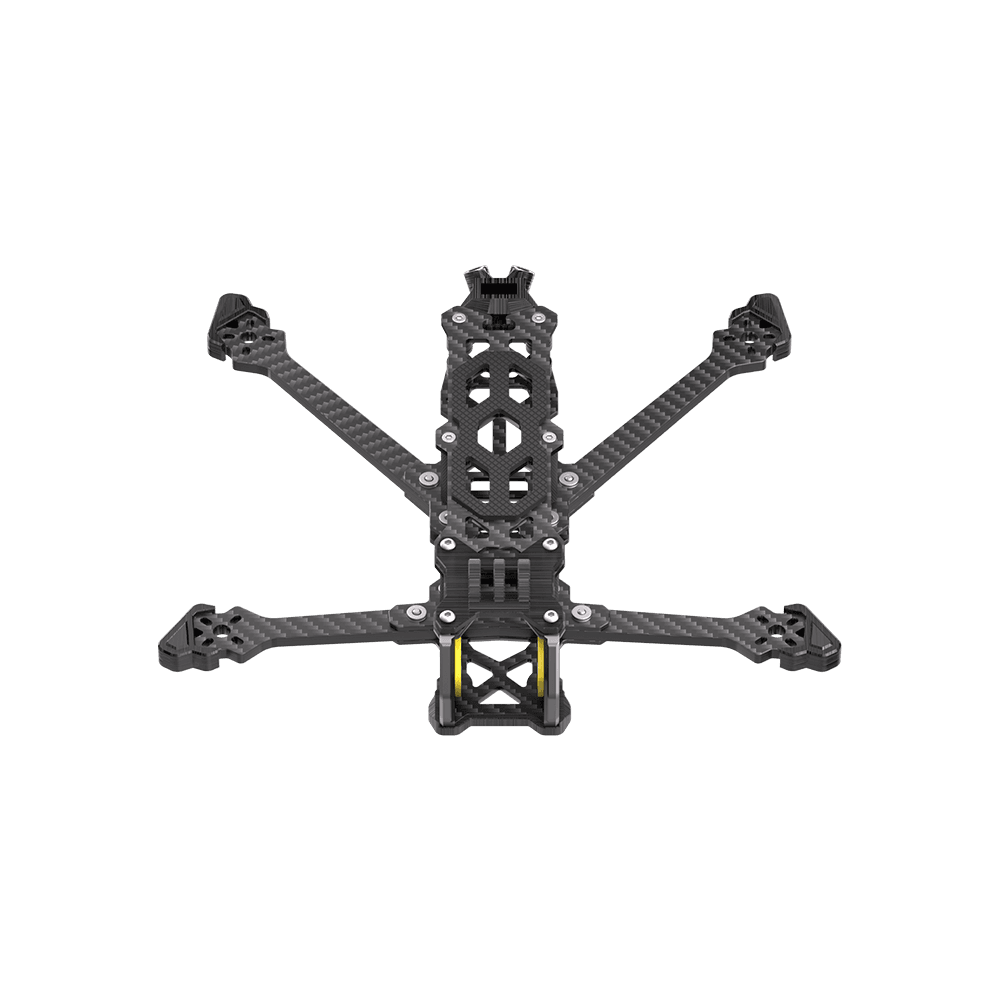

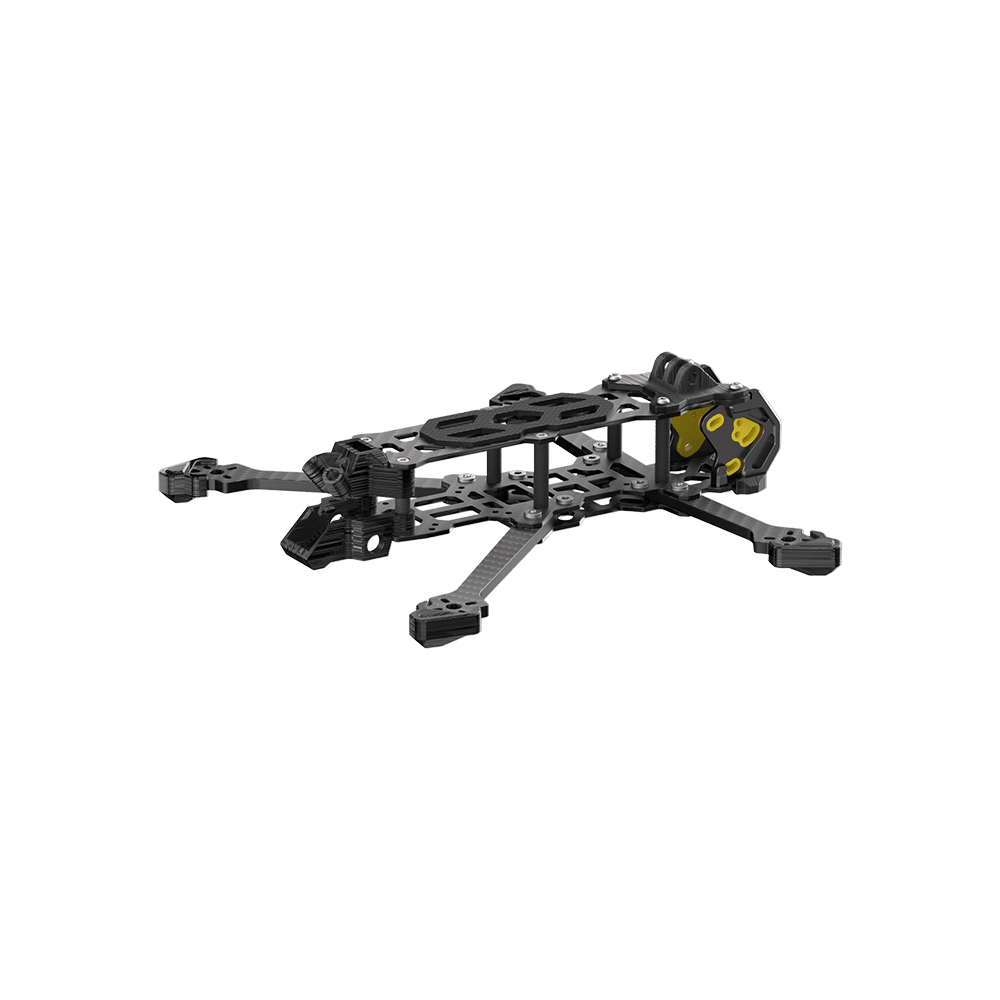

Introducing Atlas, our new 4-inch frame. Weighing in at a mere 55g, Atlas emerges as a formidable contender in the realm of sub-250g frames.

Atlas is anything but your typical long-range or endurance frame. While it excels in extending flight times, its true strength lies in versatility. At FlyFishRC, we’ve thoroughly enjoyed occasional park freestyle sessions with this frame, and it consistently delivers!

With meticulous design that seamlessly combines light weight and a good level of durability, Atlas is ready to tackle any challenge. Equipped with FlyFishRC’s signature CNC aluminum camera plates with silicone shock absorbers and a deadcat-style layout, Atlas not only takes flight; it does so exceptionally well, offering a unique and gratifying flying experience.

And as always, something we take great pride in is our open-source 3D prints, which are readily accessible and remixable on our
Thingiverse
account. Atlas maintains a mere 55g weight with the complete TPU kit, including arm protectors, action camera base mount, VTX+RX antenna mount, mini GPS holder, and even an XT30 mount that enables integration of an XT30 connector right into the frame. However, our commitment to choice doesn’t end here. We’ve carefully considered your preferences, knowing that not everyone desires an integrated connector. If you prefer an alternative route, there’s a cutout in the back of the top plate and one in the front, just behind the action camera base. And, of course, you can always run the lead on the side.

Atlas 4 empowers you to establish your own rules. Want a true sub250g quad? 30-40A AIO, DJI O4 Pro/Vista/WS/Analog, FlyFishRC 1804 motors and a 380mAh 6S battery will easily get you below the 250g mark. Want something a bit more spicy? Same setup with FlyFishRC 2004 motors and a bigger battery is what you’ll need!

Share your experiences online, tag us on social media, and let us know what you love or what you’d like to see improved in our products. We promise to treat every piece of feedback with utmost attention.

Thank you for choosing FlyFishRC!

Features:

High-end T700 carbon fiber

Sub-250 build capable

Well thought through structure design

Just 55g with all TPU parts

No props in view

CNC aluminum camera plates

Silicone shock-absorbers for the O4 AU

Compatible with both 19/20mm cameras

High-quality TPU parts

XT30 can be integrated

Dedicated small capacitor cutout

Made for endurance flights

Equipped with all accessories needed for analog and HD builds

12.9-grade strength hardware with Loctite pre-applied

Specifications:

Model: Atlas 4

Geometry: Deadcat

Wheelbase: 173mm

Arm thickness: 3.5mm

Top plate thickness: 1.5mm

Middle plate thickness: 1.5mm

Bottom plate thickness: 1.5mm

Propeller size: 4inch

CNC plate thickness: 4mm

FPV cam spacing: 19mm/20mm

Weight: 55.6g(with TPU parts)

Total Dimensions:108mm*139*28mm

Motor Mounting holes:9mm*9mm/12mm*12mm(M2)

Stack mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)

VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)

Motor mounting holes: 9*9mm/12*12mm(φ2mm)

Includes:

1x Atlas 4 Frame Kit

Recommended(Not included)

Flash 1804 Motor

HQProp T4x2.5 Props

HQProp T4x2x3
