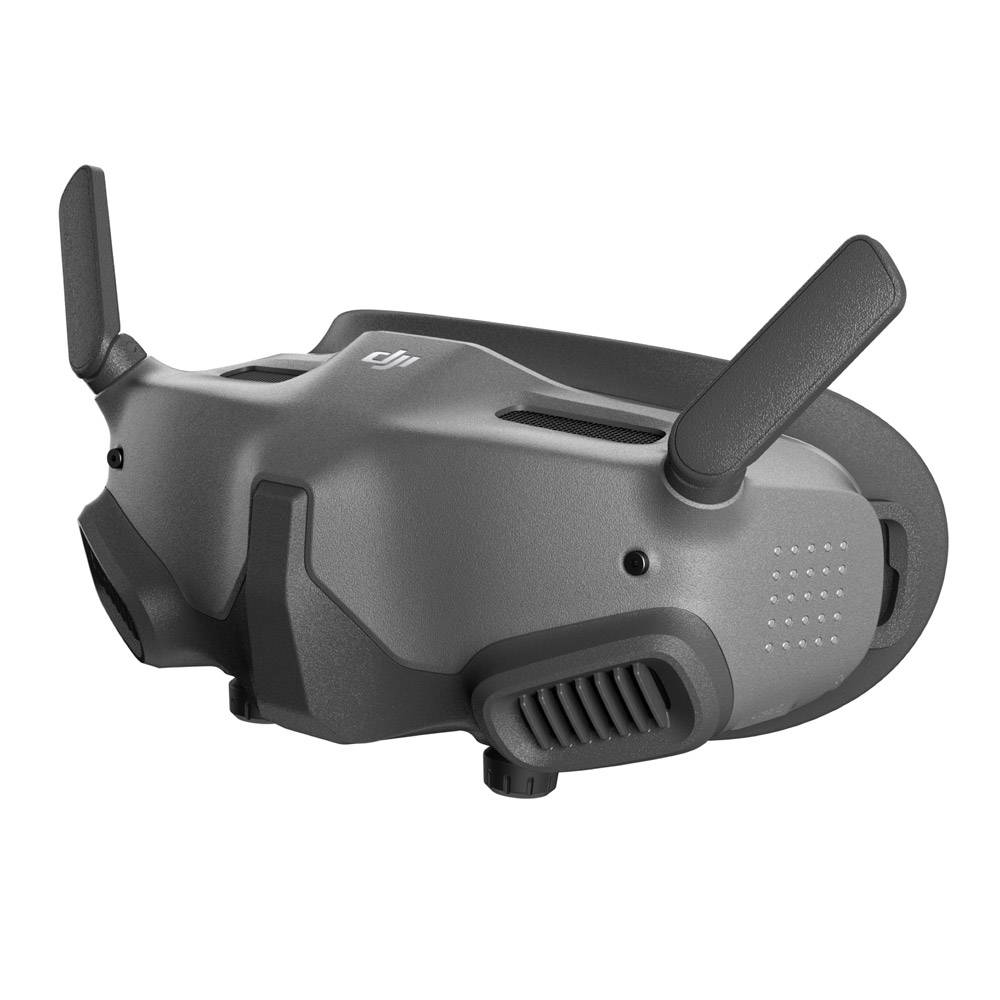

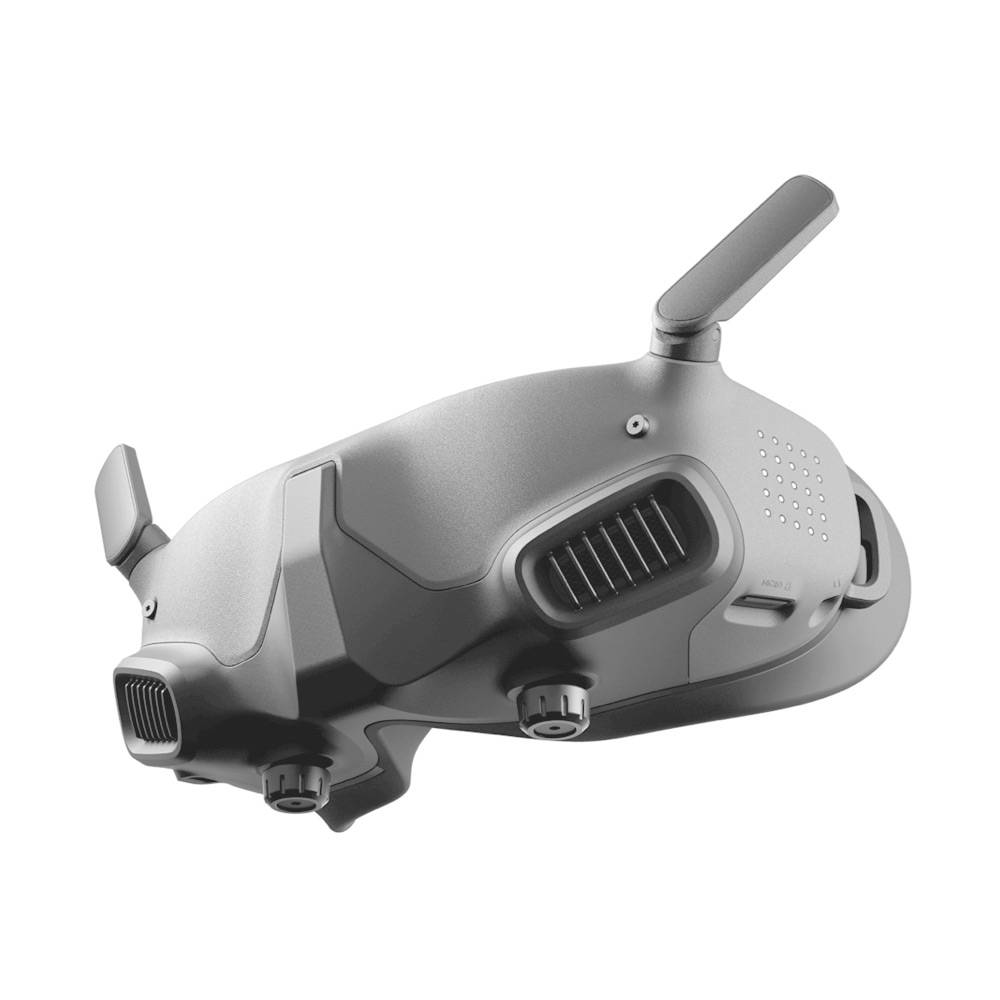

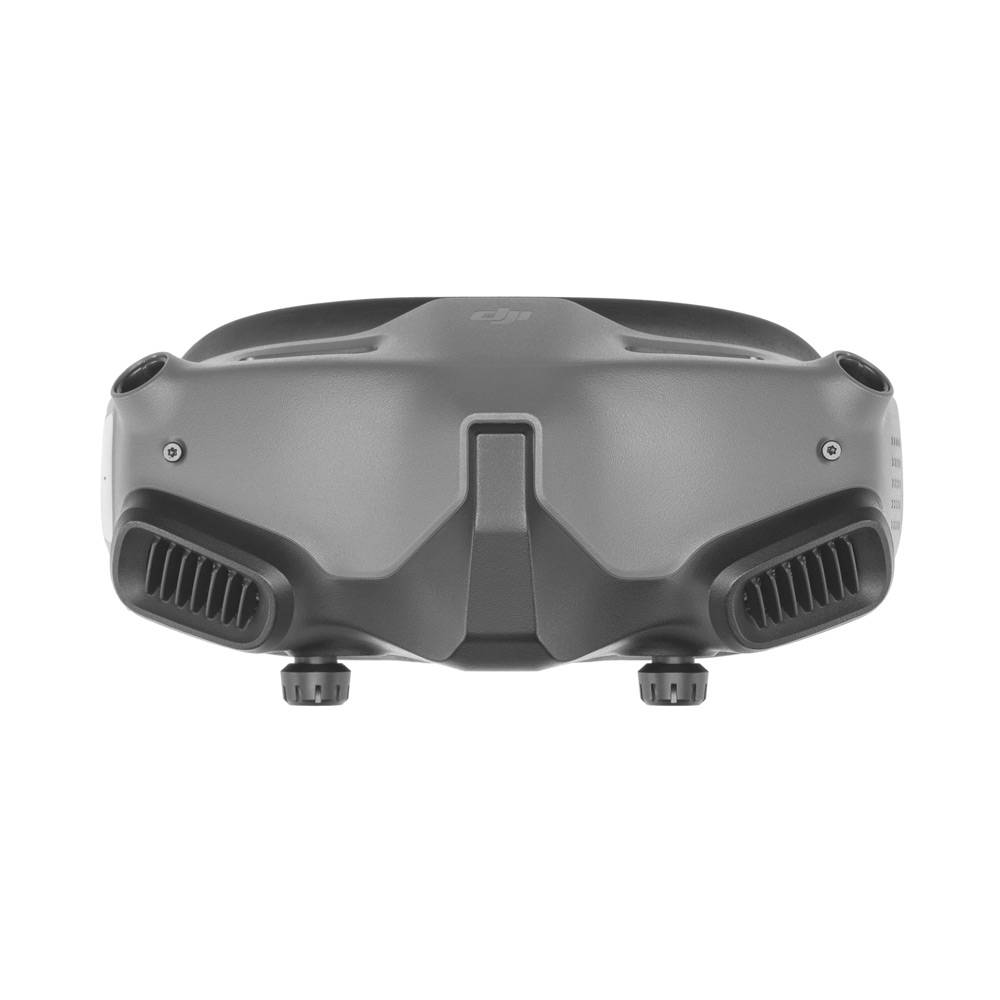

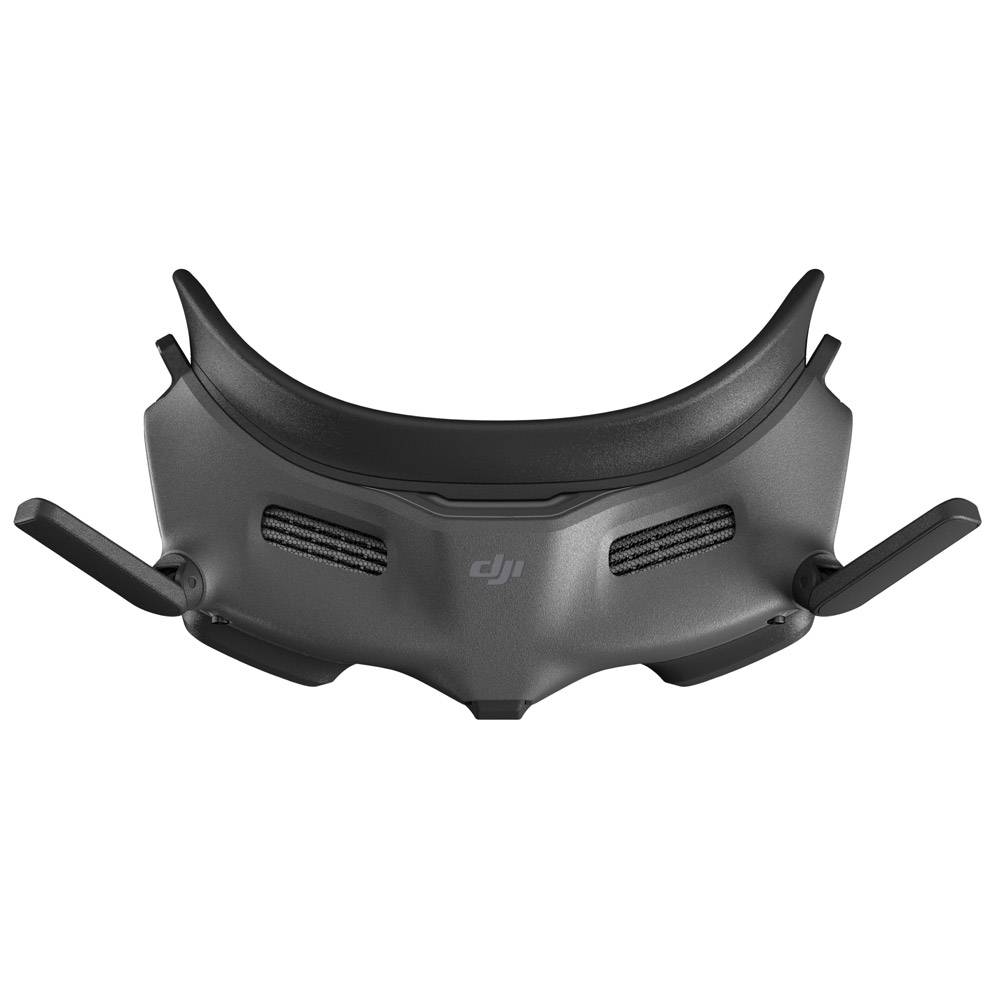

DJI Goggles 2

The DJI Goggles 2 provide next-level comfort and convenience. Now smaller, lighter, and equipped with Micro-OLED screens, so you experience outstanding clarity as you navigate the sky! DJI Goggles 2 are compact and ultra-portable. The foldable antenna and lightweight design make them easy to store, comfortable to wear, and suitable for long-term use. With two-hour battery life and super-fast charging speeds, you can always be ready for an immersive flight.

Features

Supports MP4 and MOV Video and Audio Playback Formats

Smaller, Lighter, and More Comfortable

Two Micro-OLED Screens

2 Hour Battery Time

Diopter Adjustment

DJI Goggles 2

51 FOV

GET IN THE PILOT’S SEAT

Enjoy next-level comfort and convenience with DJI Goggles 2. Now smaller, lighter, and equipped with Micro-OLED screens, so you experience outstanding clarity as you navigate the sky! Feel every flight with DJI Avata and Goggles 2. The two HD Micro-OLED screens offer stunning clarity and a refresh rate of up to 100 Hz. The goggles present a smooth full-screen live feed in front of your eyes, creating an immersive world of limitless potential.

DIOPTER ADJUSTMENT

DJI Goggles 2 offer diopter adjustment from +2.0 D to -8.0 D for optimized viewing and comfort. Lock the adjustment knob to fix the diopter in place and prevent accidental touches during use or storage.

Specifications

DJI GOGGLES 2

Supported Video and Audio Playback Formats: MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)

Wi-Fi Transmission Power (EIRP)

2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)

5.1 GHz [8]: < 20 dBm (FCC/CE/KC)

5.8 GHz [4]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)

Transmission Power (EIRP):

2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)

5.8 GHz: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Bluetooth Communication Frequency: 2.400-2.4835 GHz

Wi-Fi Wireless Streaming: Supports DLNA Protocol

Bluetooth Transmission Power (EIRP): < 8 dBm

Supported SD Cards: microSD (up to 256 GB)

Max Video Transmission Bitrate: 50 Mbps

Wi-Fi Communication Frequency:

2.400-2.4835 GHz

5.150-5.250 GHz (indoor use only)

5.725-5.850 GHz

Wi-Fi Protocol: Wi-Fi 802.11b/a/g/n/a

Power Input: DJI Goggles 2 Battery

Bluetooth Protocol: Bluetooth 5.2

Video Recording Format: MOV

Communication Frequency

2.400-2.4835 GHz

5.725-5.850 GHz

FOV (single screen): 51

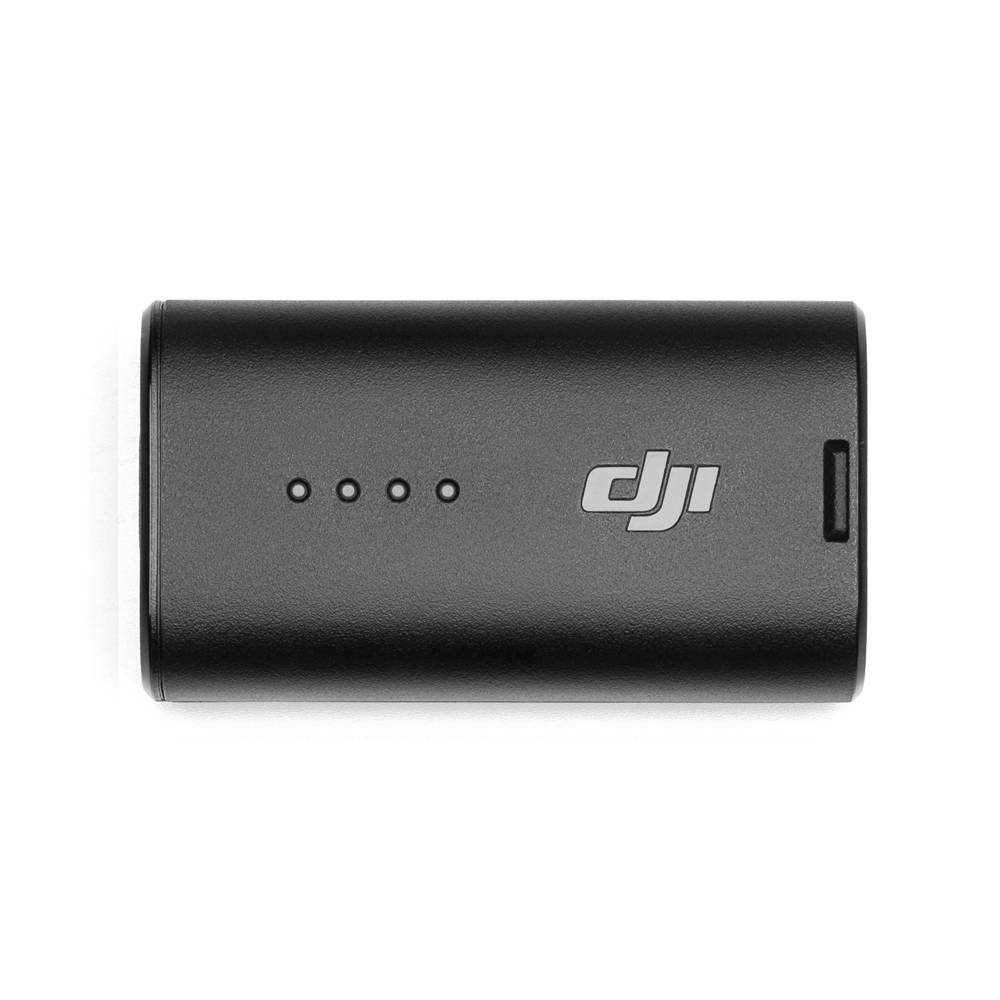

DJI GOGGLES 2 BATTERY

Charging Temperature Range: 70° to 45° C (32° to 113° F)

Max Charging Power: 712.6 W (5 V/2 A, 9 V/1.4 A)

Dimensions (L×W×H): 73.04×40.96×26 mm

Operating Time: Approx. 2 hours

Chemical System LiNiMnCoO2

Weight: Approx. 122 g

Voltage: 7-9 V (1.5 A)

Capacity: 1800 mAh

Energy: 18 Wh

Type: Li-ion

IMPORTANT NOTES

HorizonSteady is only available in Normal mode FOV with an aspect ratio of 16:9 and video recording specification of 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps. RockSteady is unavailable when the video recording specification is 2.7K@100/120fps or 1080p@100/120fps.

The 155° FOV is only available when the aspect ratio is 4:3, and the video recording specification is 2.7K@50/60fps or 1080p@50fps/60fps; the aspect ratio is 16:9, and the video recording specification is 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.

DJI Goggles 2 does not support astigmatism correction. If you have specific vision requirements, please consult your doctor before use.

The DJI Goggles 2 are not backward compatible with existing DJI Air units or Vista systems.

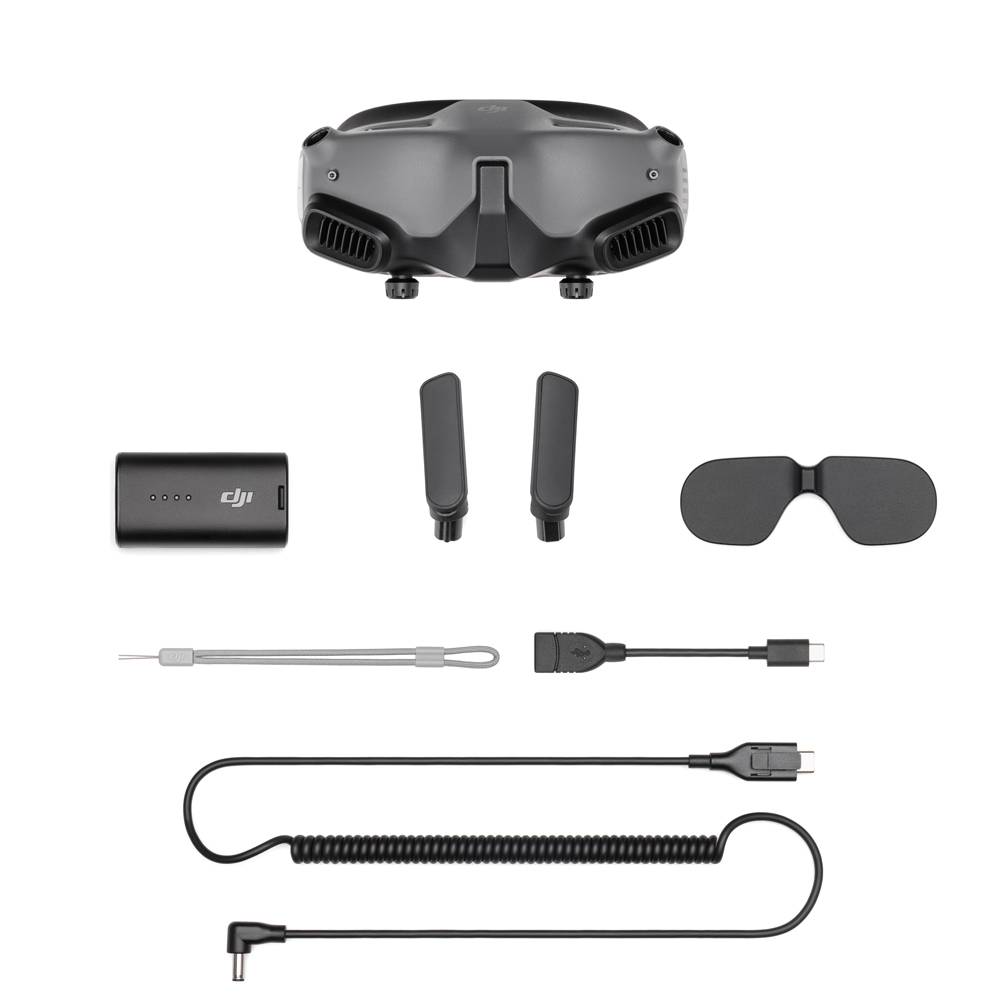

Includes

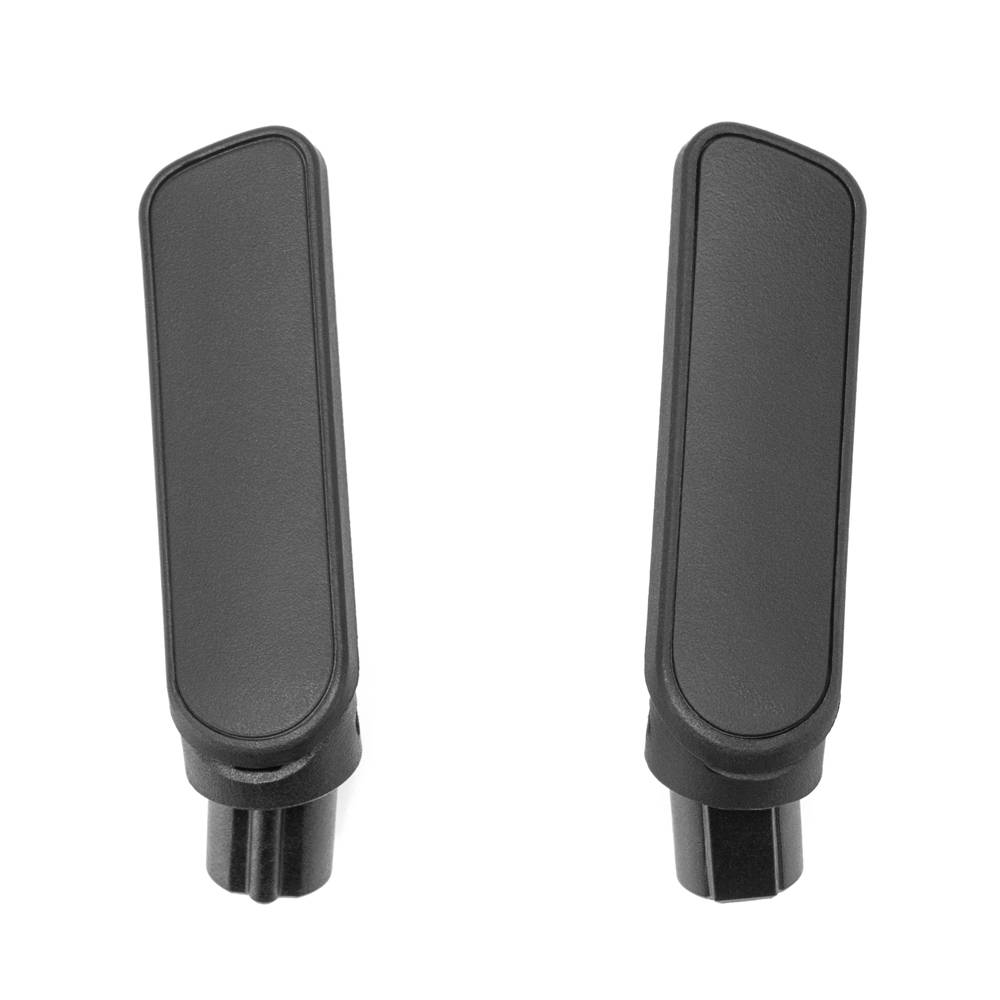

1x DJI Goggles 2 Dual-Band Antenna (Set of 2)

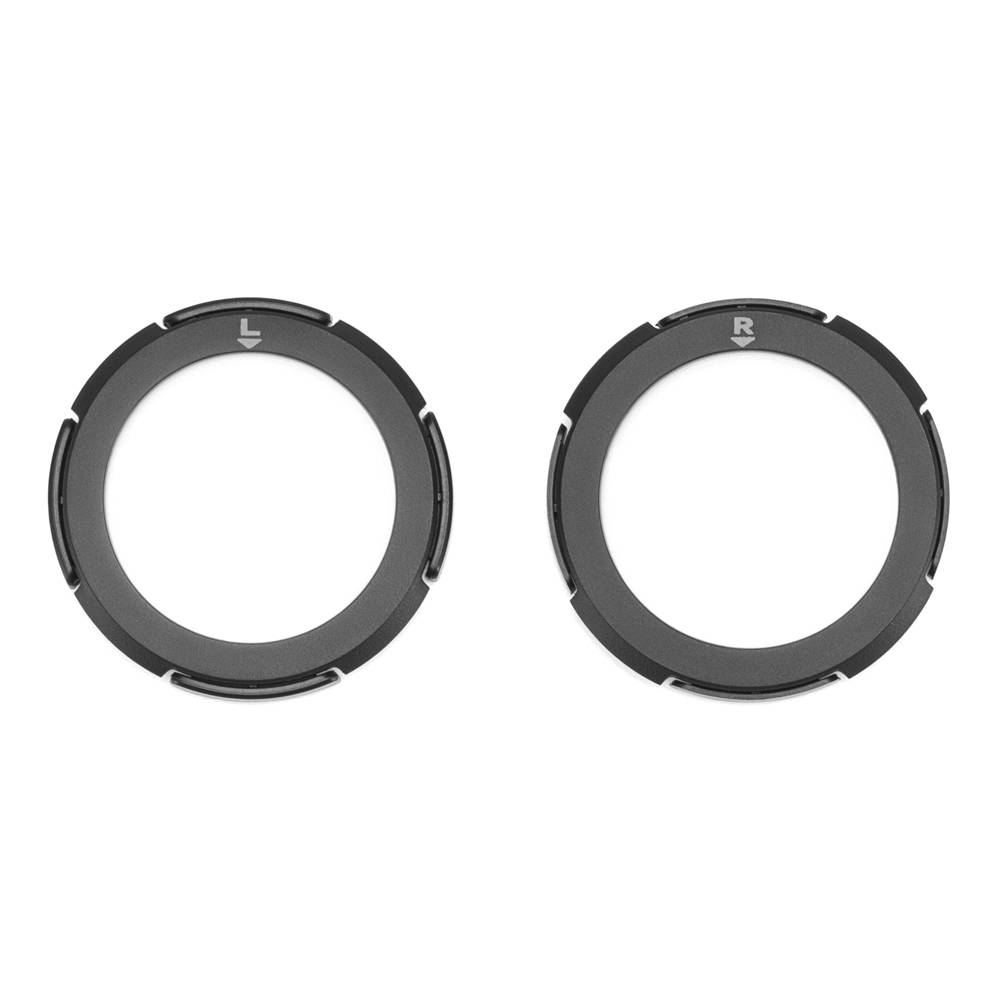

1x DJI Goggles 2 Eyeglass Frames (Set of 2)

1x DJI Goggles 2 Screen Protector

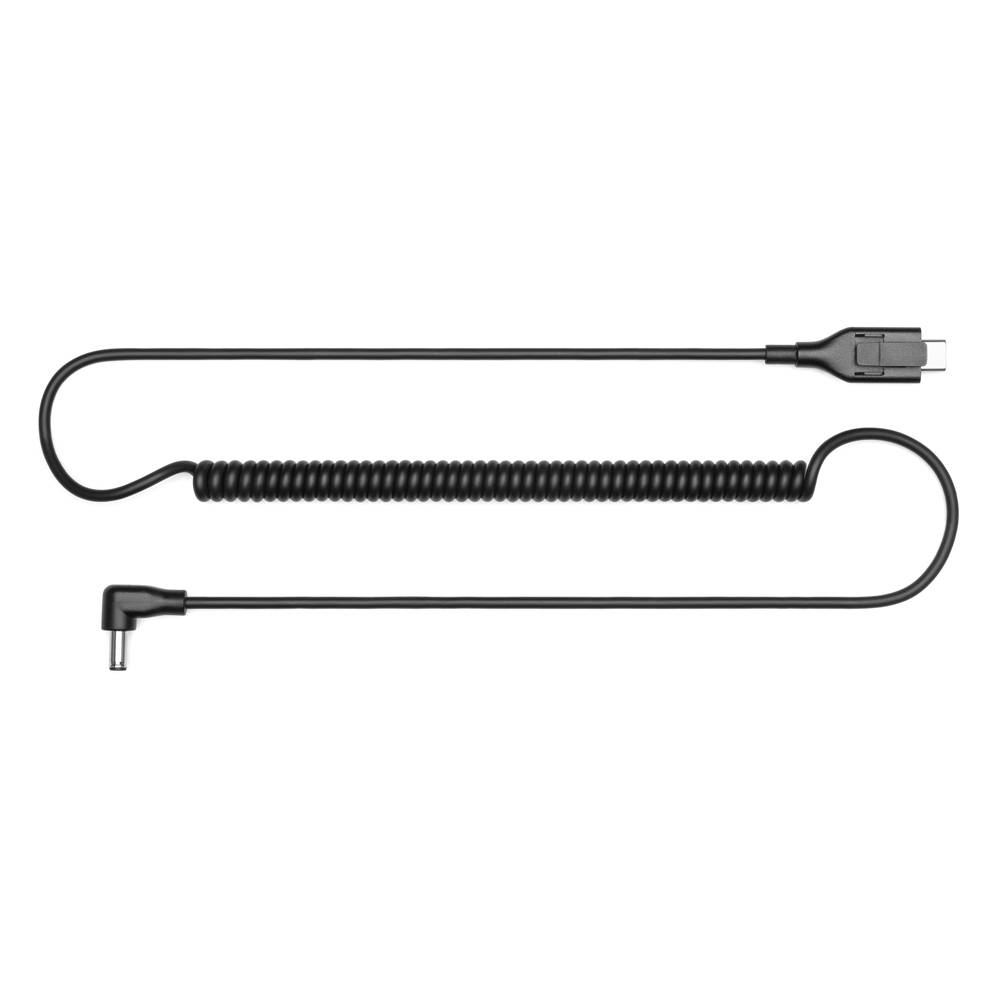

1x DJI Goggles 2 Power Cable

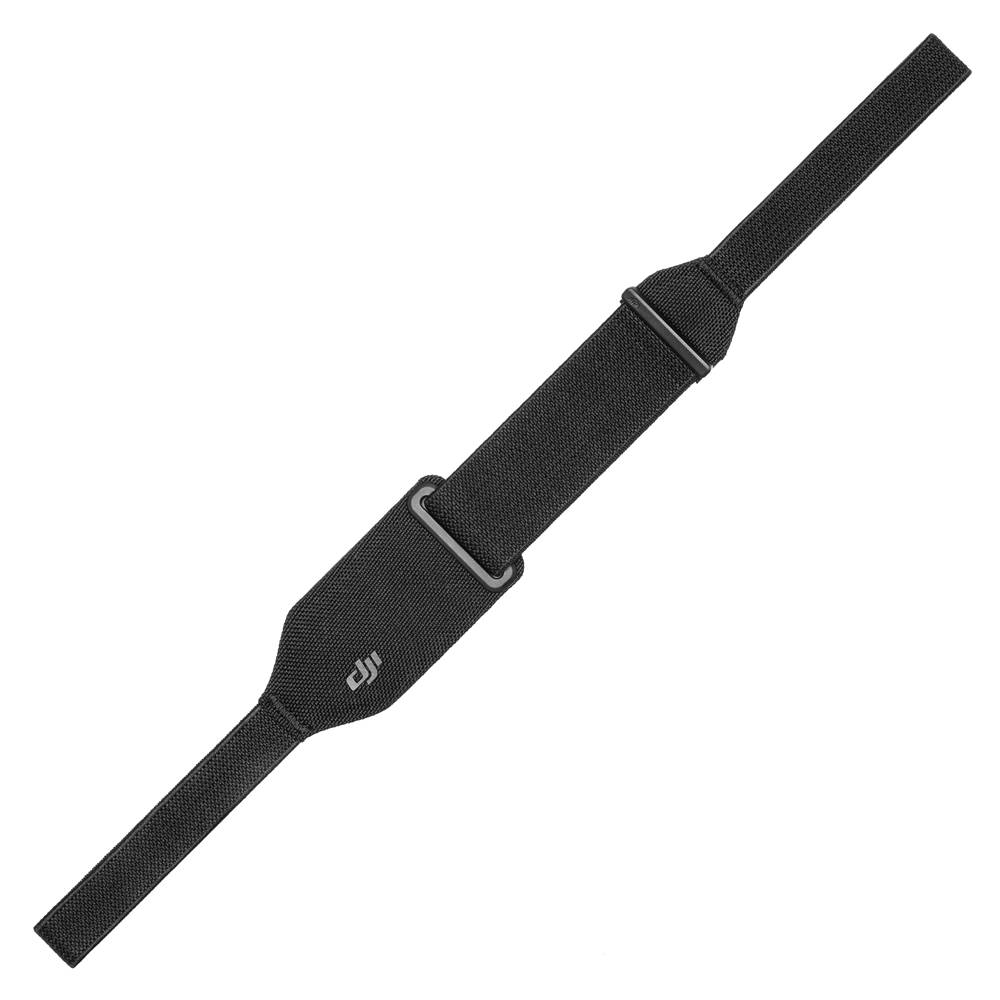

1x DJI Goggles 2 Headband

1x DJI Goggles 2 Battery

1x DJI Goggles 2

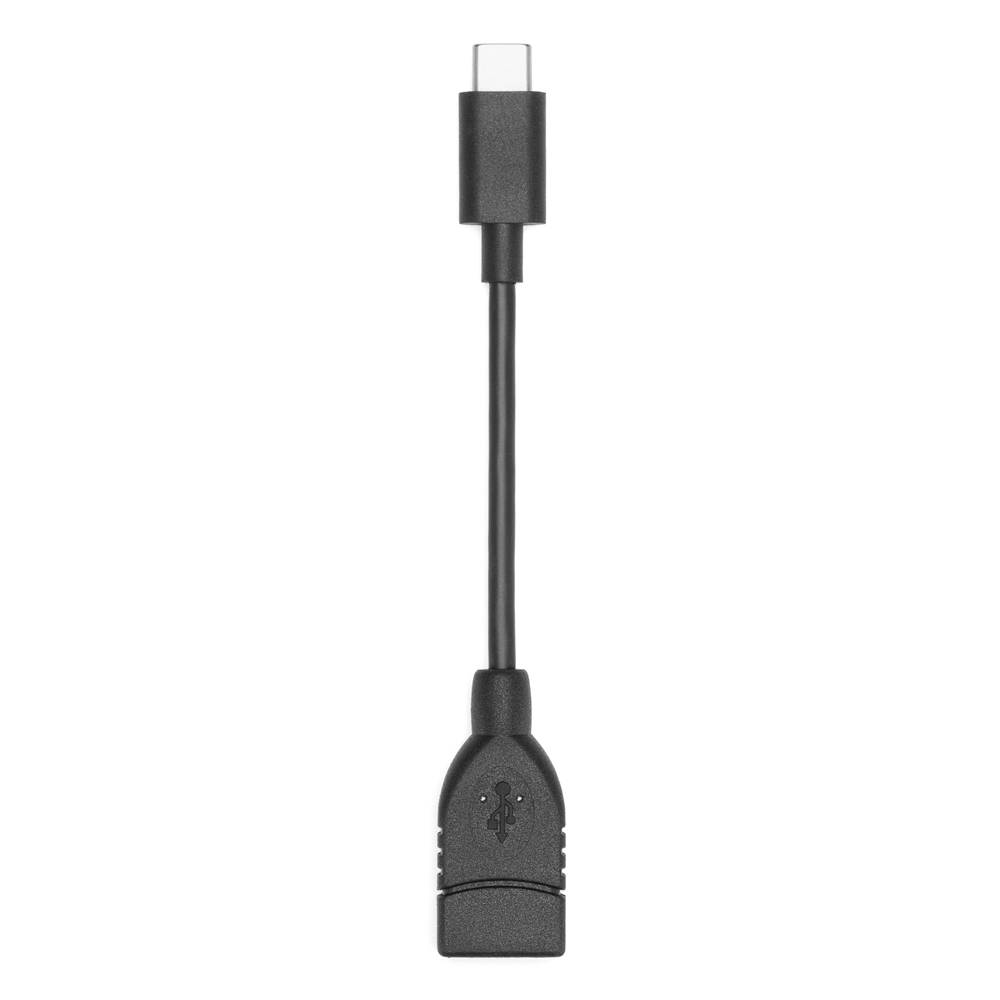

1x OTG Cable
