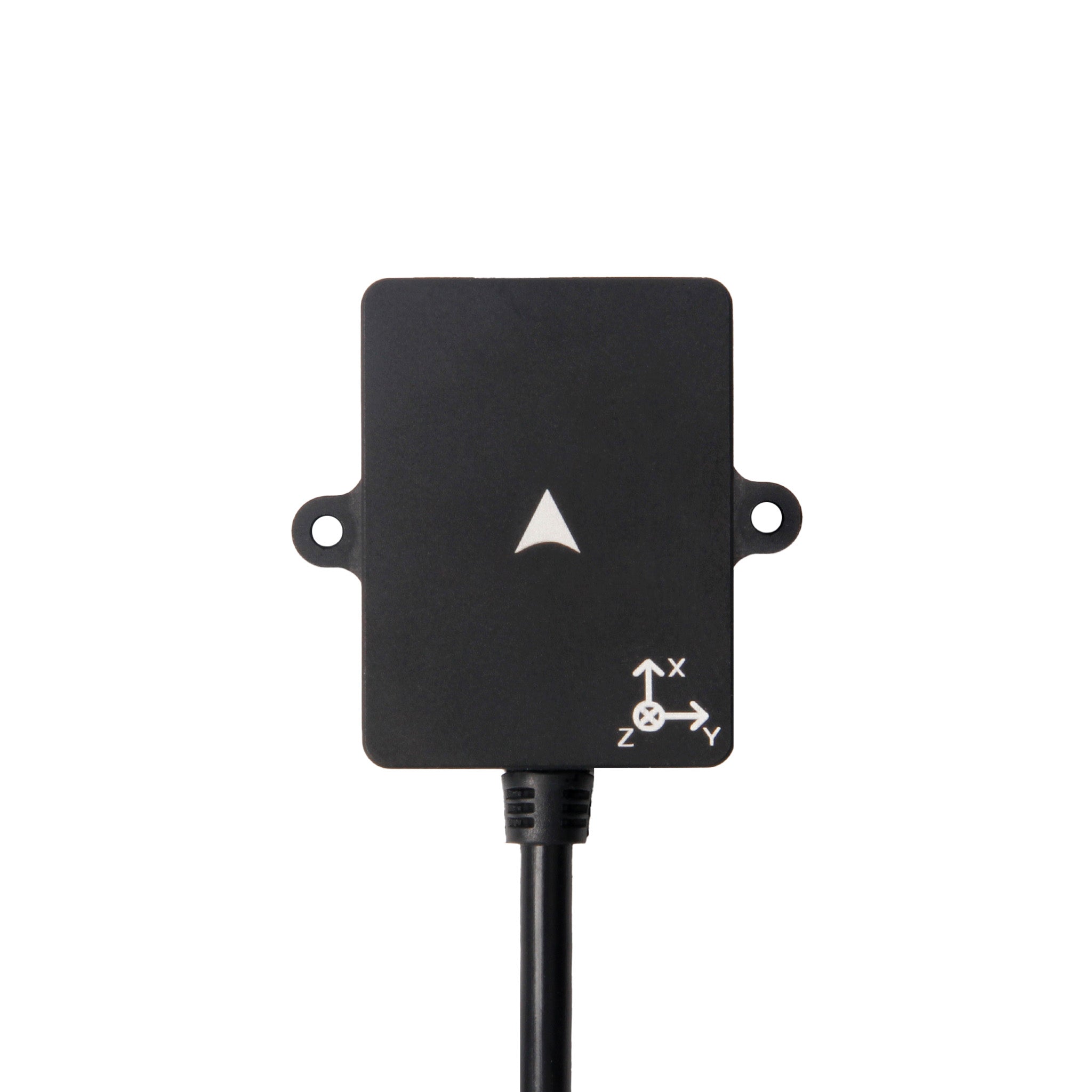

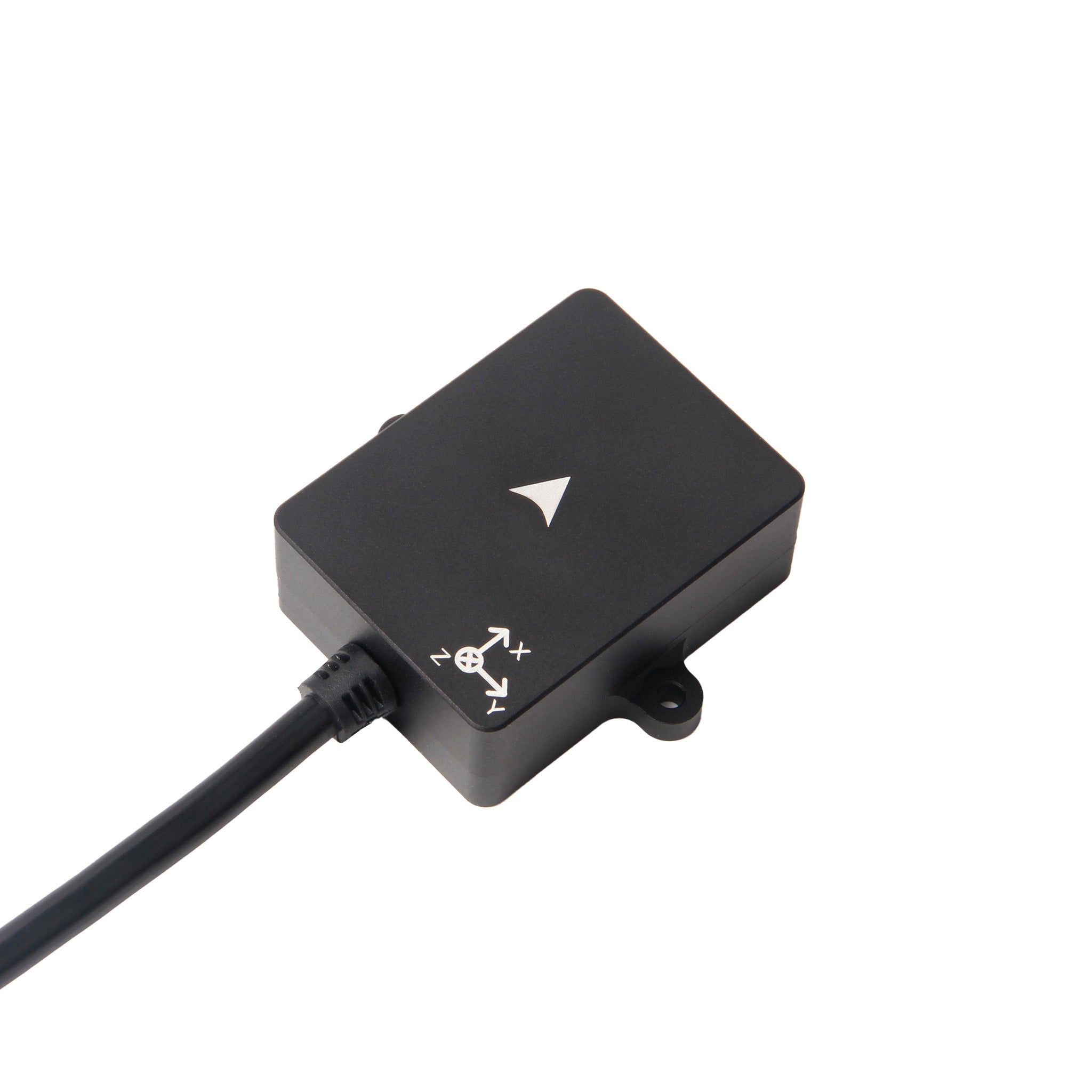

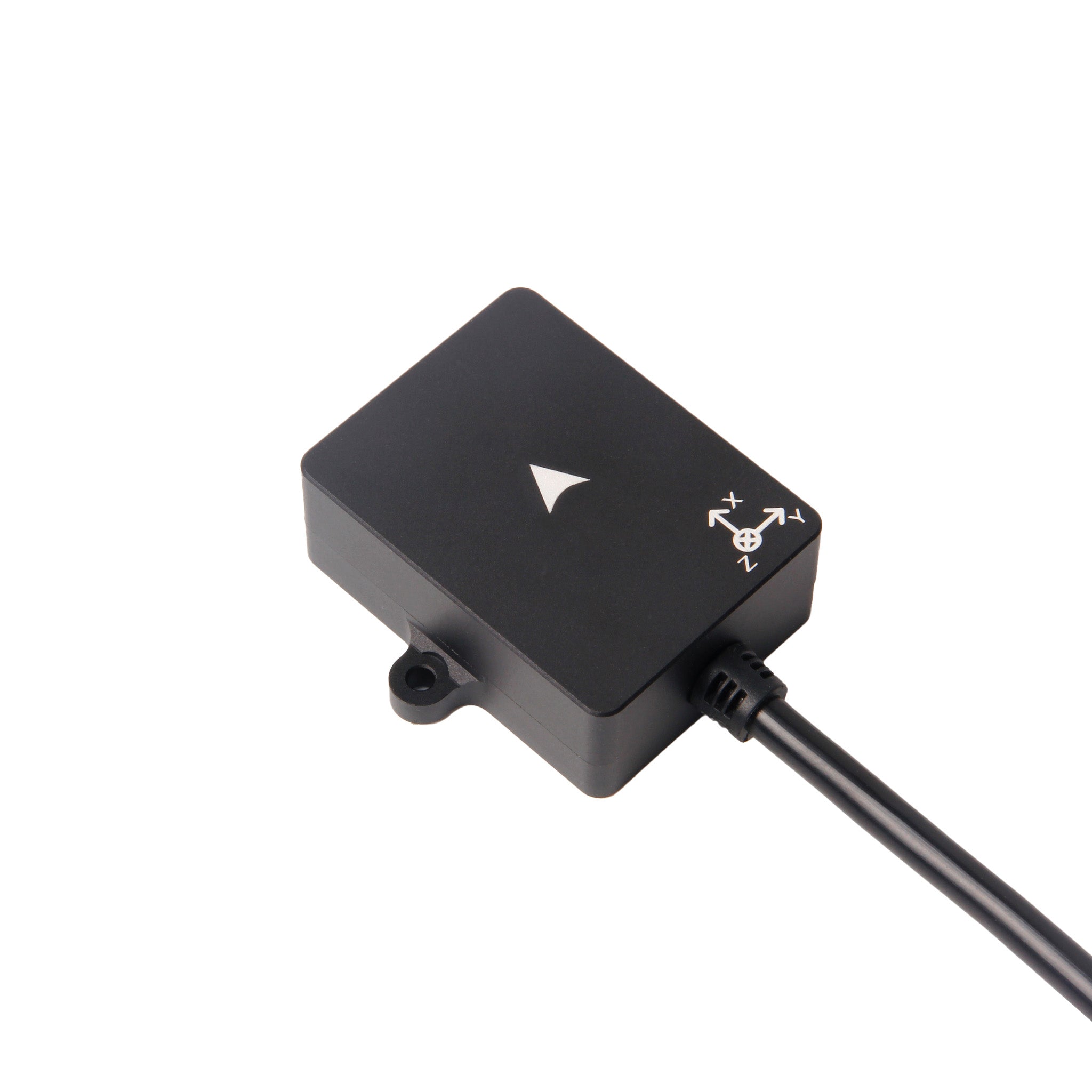

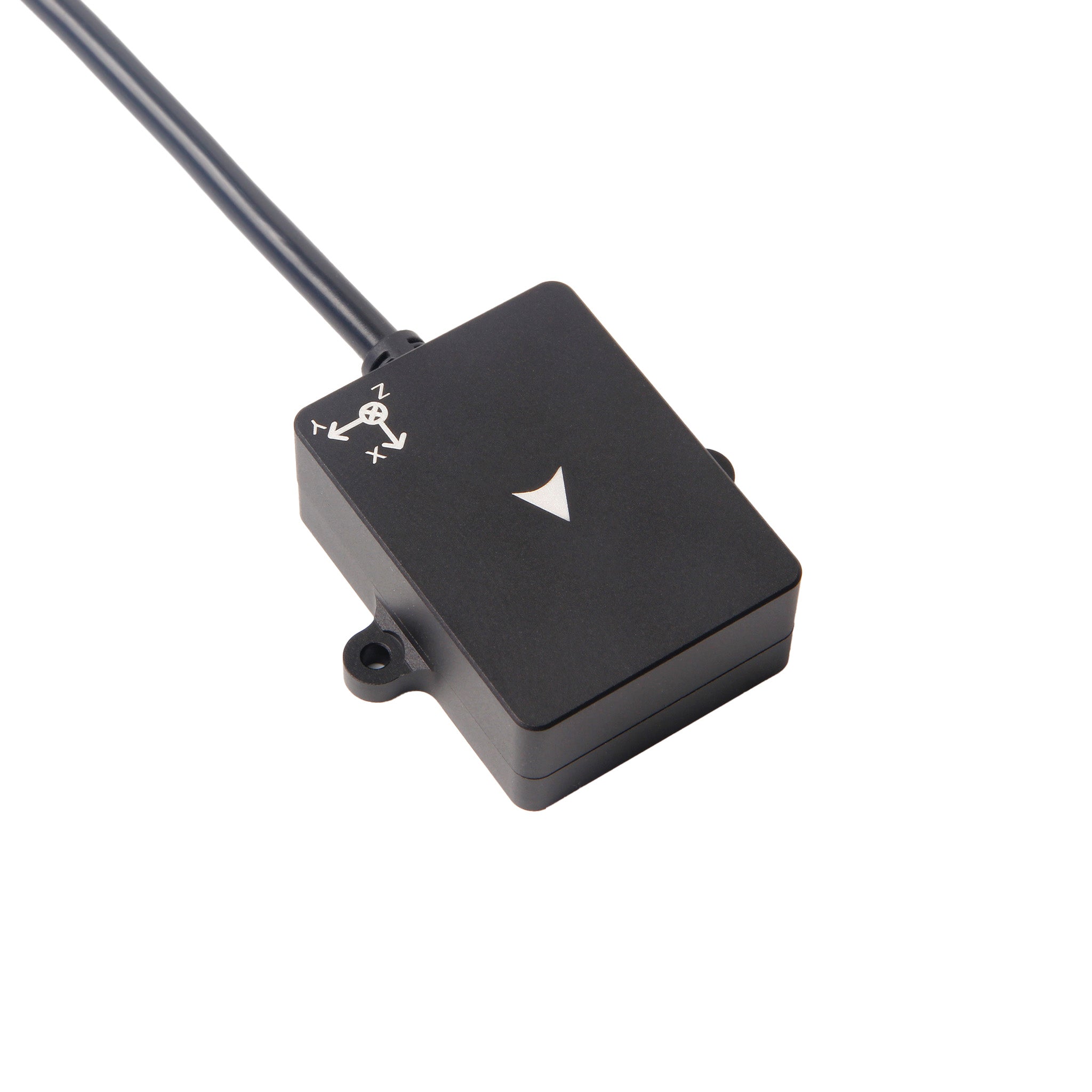

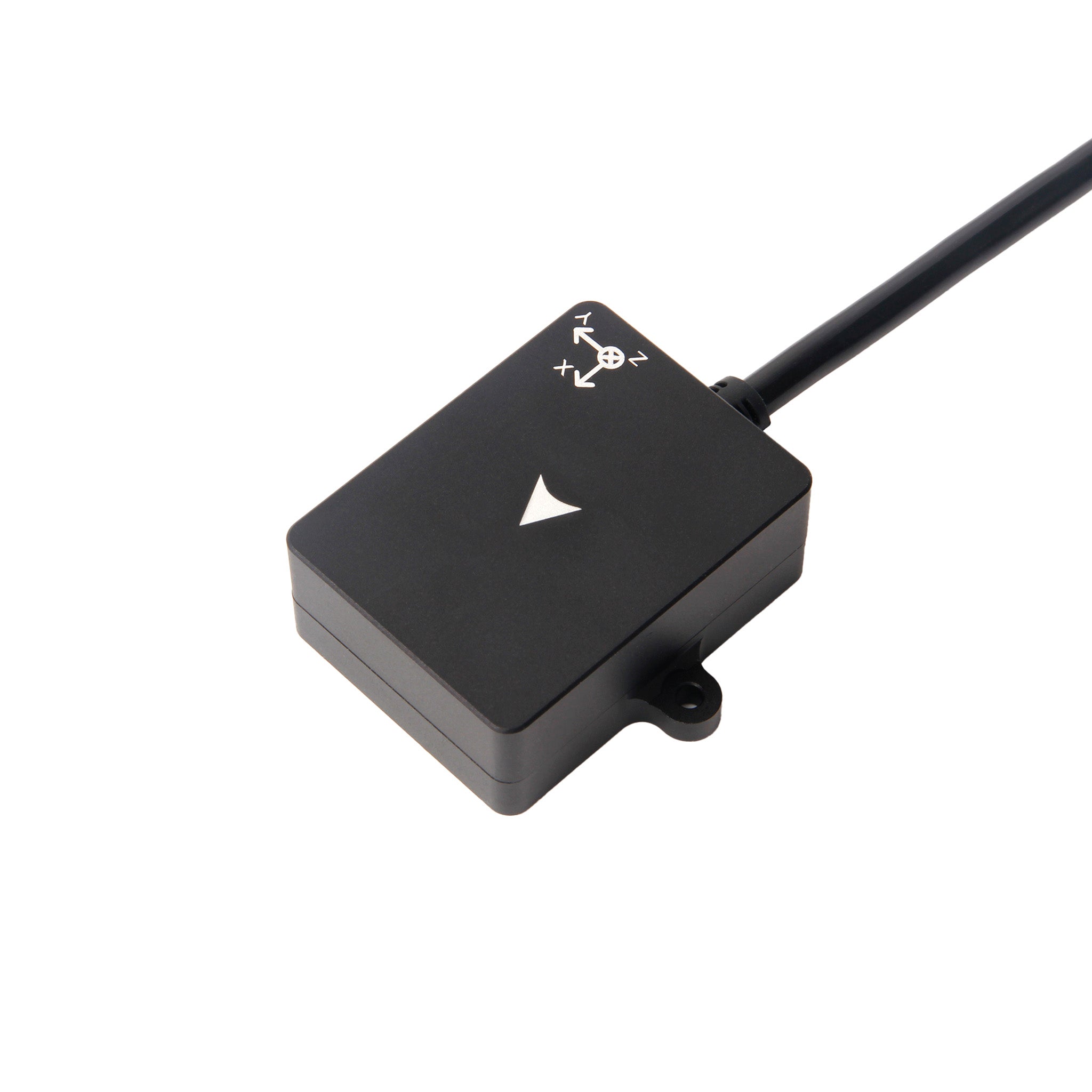

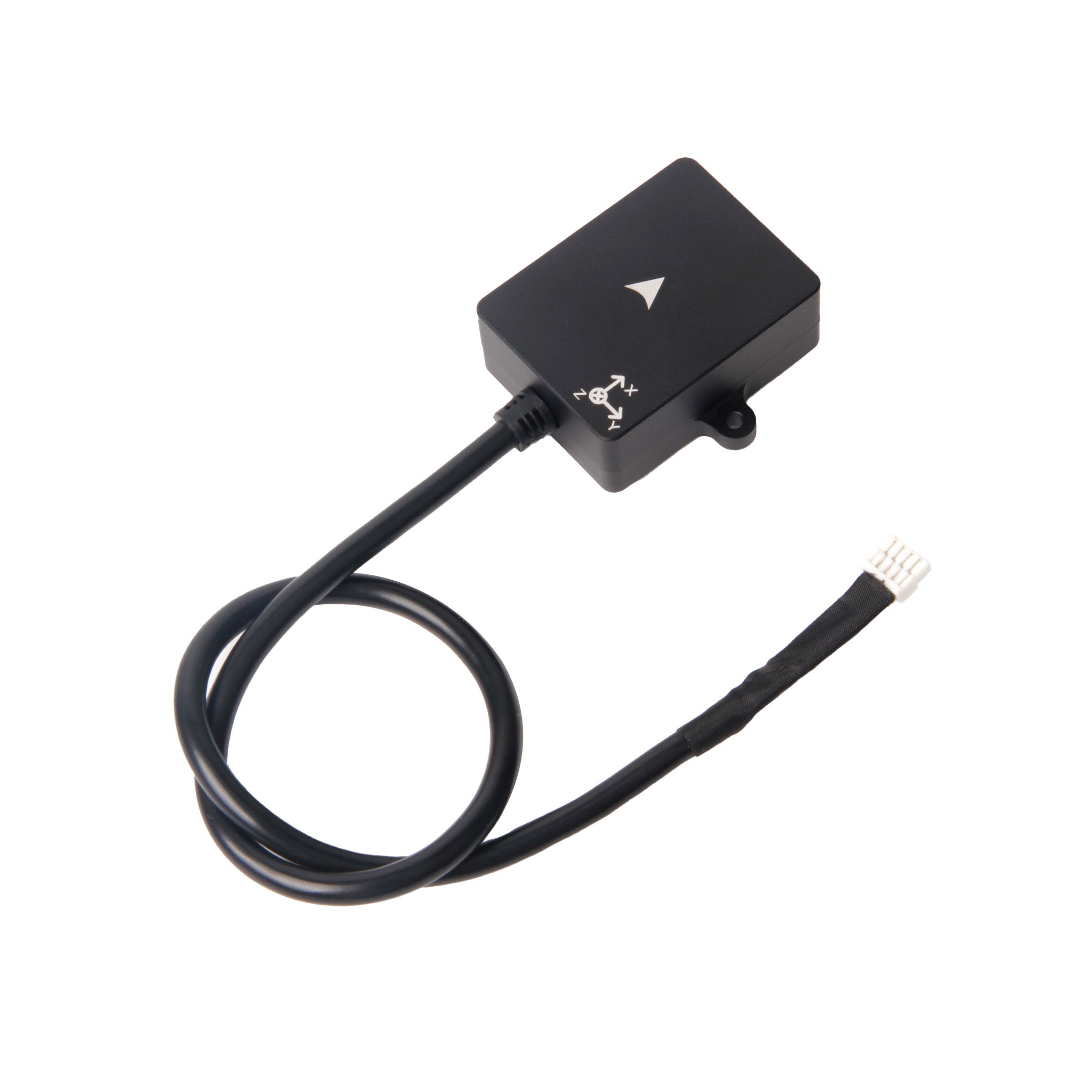

Holybro DroneCAN RM3100 Professional Grade Compass (IP66)

Stok kodu: 18088

Description:
This professional-grade RM3100 compass/magnetometer has impeccable signal-to-noise ratios, no drift, and precise magnetic field measurements. It can provide professional-grade heading accuracy and orientation calculations for your vehicle. With this compass, your vehicle can navig

Yurt Dışı Teslimat

Yurtdışı teslimat ürünleri Siparişinizden sonra 3 iş günü içerisinde teslimat tarihi sağlanmaktadır.

Ortalama teslimat süresi 24 iş günüdür.

8,090.80 ₺

Temizle
8 kişi şu anda bu ürünü inceliyor
  • Stoktan Teslim Desteği

Stoktan teslim ürünler 2 iş günü içerisinde kargolanmaktadır.

  • Yurt Dışı Tedarik

Yurt dışı tedarik siparişleriniz 3 iş günü içerisinde teslimat tarihi ile bilgilendirilmektedir.

Ortalama 24 iş günü içerisinde teslimat sağlanmaktadır.

  • DHL UÇAK KARGO

Yurt dışı tedarik ürünlerimiz DHL Uçak kargo yoluyla tedarik edilmektedir. Uçağa teslim edilen ürünler ortalama 7 İş gününde teslim edilmektedir.

  • 1 YIL FABRİKA GARANTİSİ
  • 14 gün içinde İade

Ödeme Seçenekleri

Açıklama

Description:

This professional-grade RM3100 compass/magnetometer has impeccable signal-to-noise ratios, no drift, and precise magnetic field measurements. It can provide professional-grade heading accuracy and orientation calculations for your vehicle. With this compass, your vehicle can navigate through waypoints with little magnetic disturbance due to motor coils and metal parts. You can achieve the best result by placing this module far away from motor coils and other metal parts, getting rid of one of the largest points of failure on your unmanned vehicle.

This 3-axis magnetometer, based on PNI’s proprietary magneto-inductive technology, delivers high-performance resolution and repeatability. It has a very high level of resolution (10 nT) and ultra-low magnetic hysteresis, making it perfect for applications that require high heading accuracy.

With its DroneCAN output protocol, it can deliver robust and reliable connectivity over relatively large distances, and wiring is less complicated, as you can have a single bus for connecting all your DroneCAN peripherals. It also does not occupy any serial ports on the flight controller.

RM3100 module now come with a housing with IP66 rating, and software CAN termination resistance toggle.

Specification

Parameter Cycle Counts Units
50 100 200
Field Measurement Range -800 to +800 μT
Gain 20 38 75 LSB/μT
Sensitivity 50 26 13 nT
Noise 30 20 15 nT
Max Single-Axis Sample Rate
(Divide by 3 for Max. 3-Axis Sample Rate)		 1600 850 440 Hz
Operating Temperature -40 to +85 °C
IP Rating 66


Output connector: 4-pin JST-GH1.25

Mounting Orientation :

Dimension:


Downloads

Package Includes：

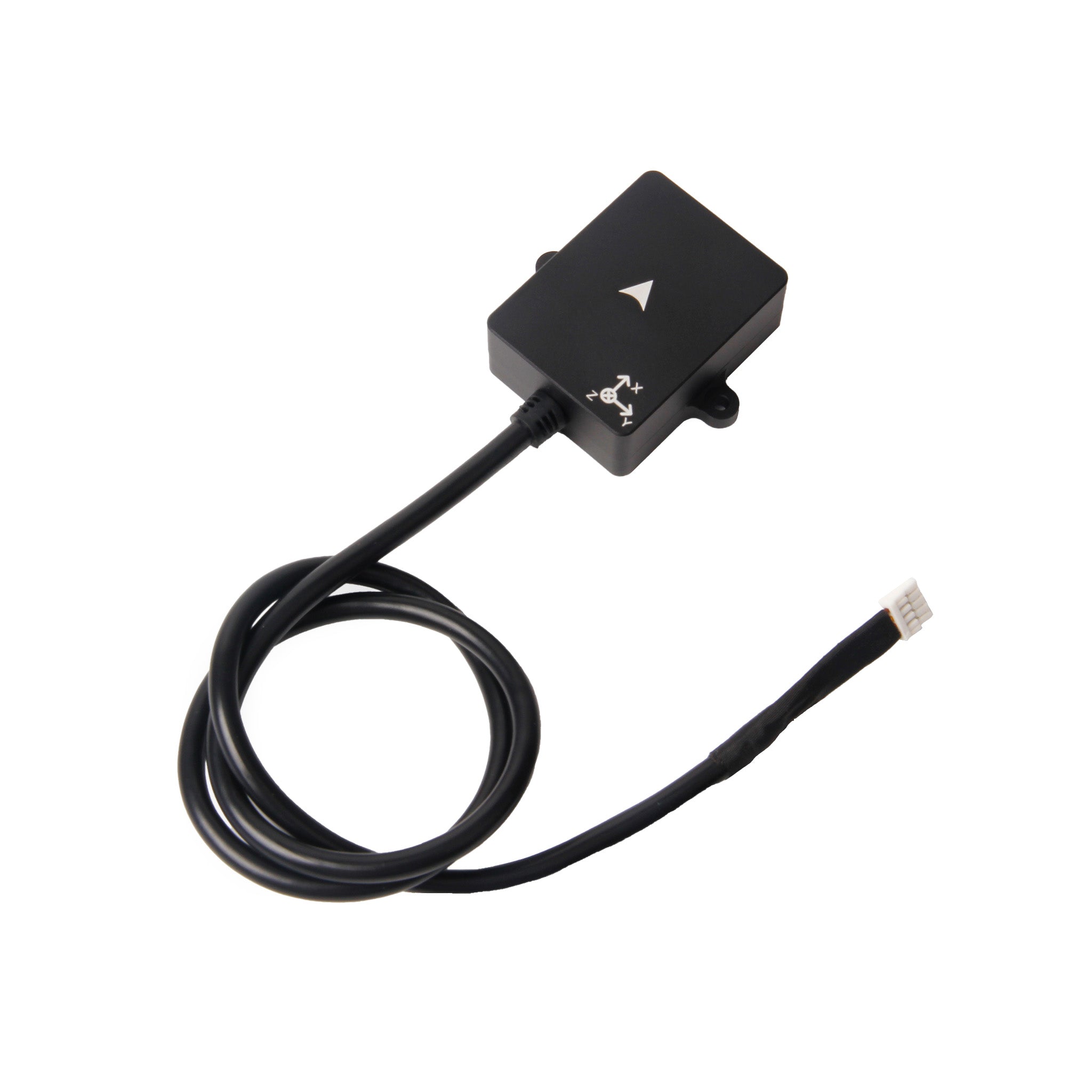

1x  DroneCAN RM3100 Compass
