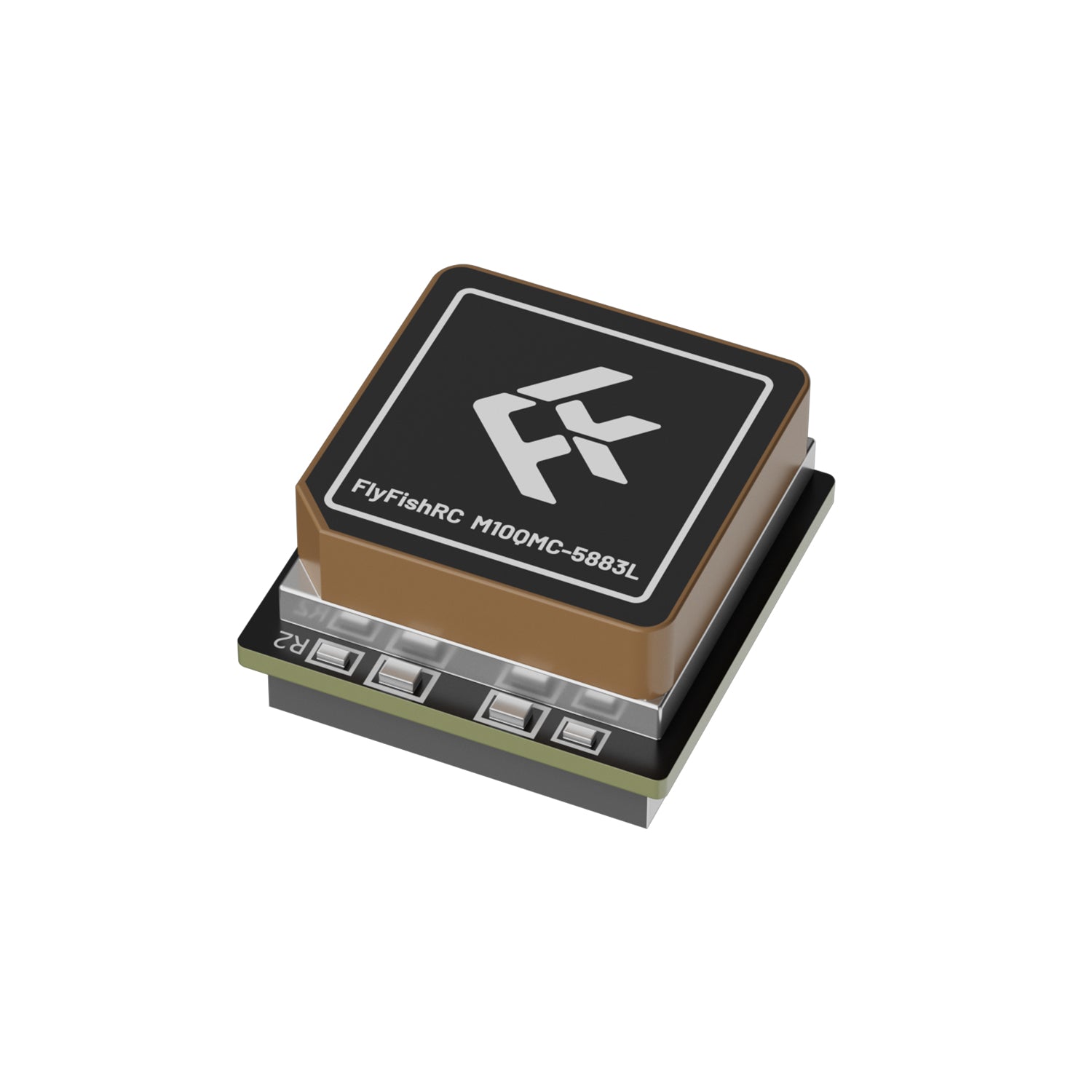

FlyFishRC M10QMC-5883L GPS Module

The FlyfishRC-M10QMC is a small size, fast positioning, easy-to-use GPS. It adopts 18*18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in QMC5883L high-precision magnetometer provides precise azimuth pointing.Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.

Specs:

GPS module: FlyFishRC M10QMC-5883L GPS Module

Frequencies: 72 channel

Refresh Rate: 10 Hz

Compass module: QMC5883L

Baud Rate：4800bps-115200bps (Default – 9600bps)

Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm

Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns

Cold start: <24s

Hot start: <2s

Maximum height: 50000m

Maximum speed: 500 m/s

Speed accuracy: 0.05 m/s

Maximum acceleration: ≦ 4G

Input Voltage: 3.3V-5V，current 25mA

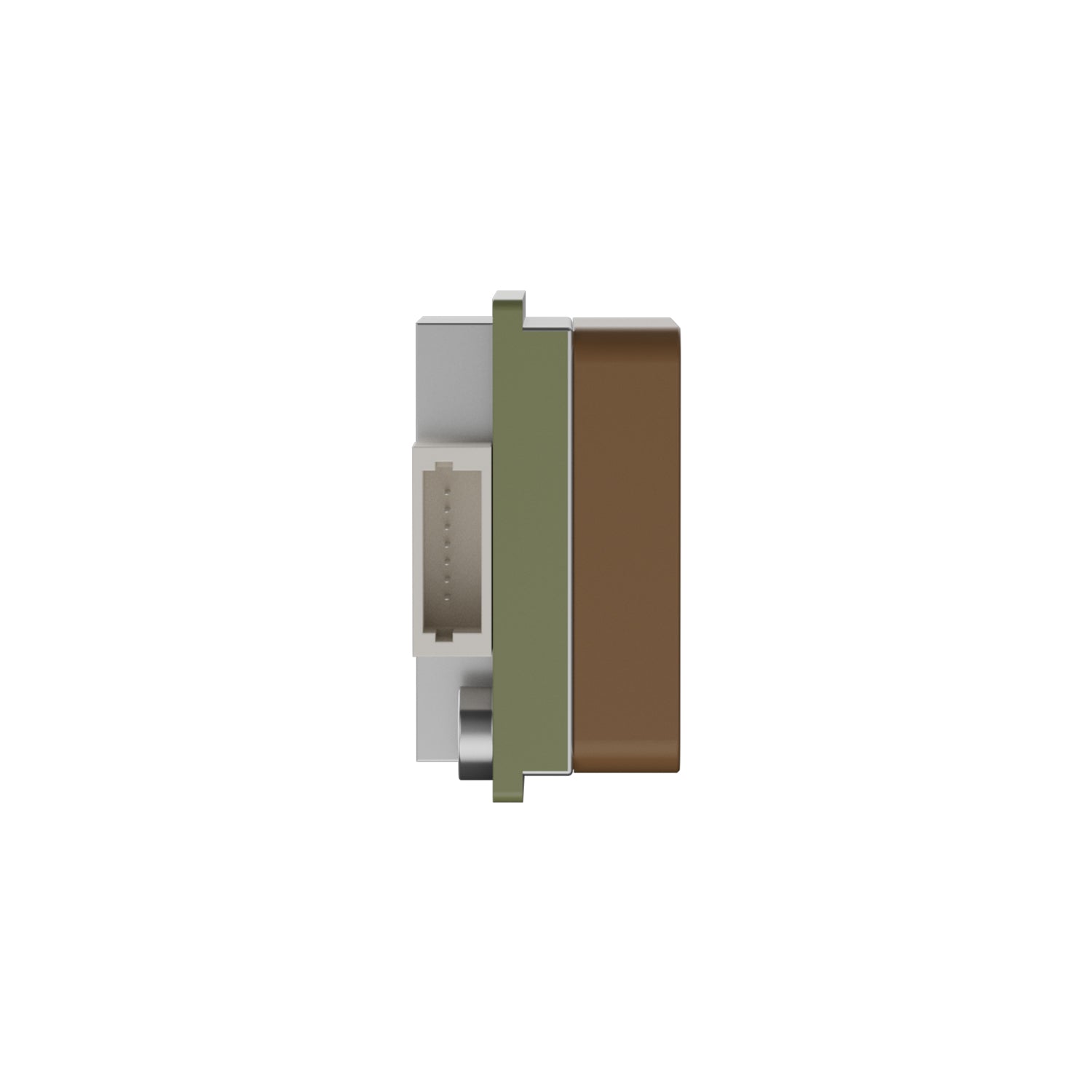

Output Connector: SH1.0-6P

Weight: 8.8g

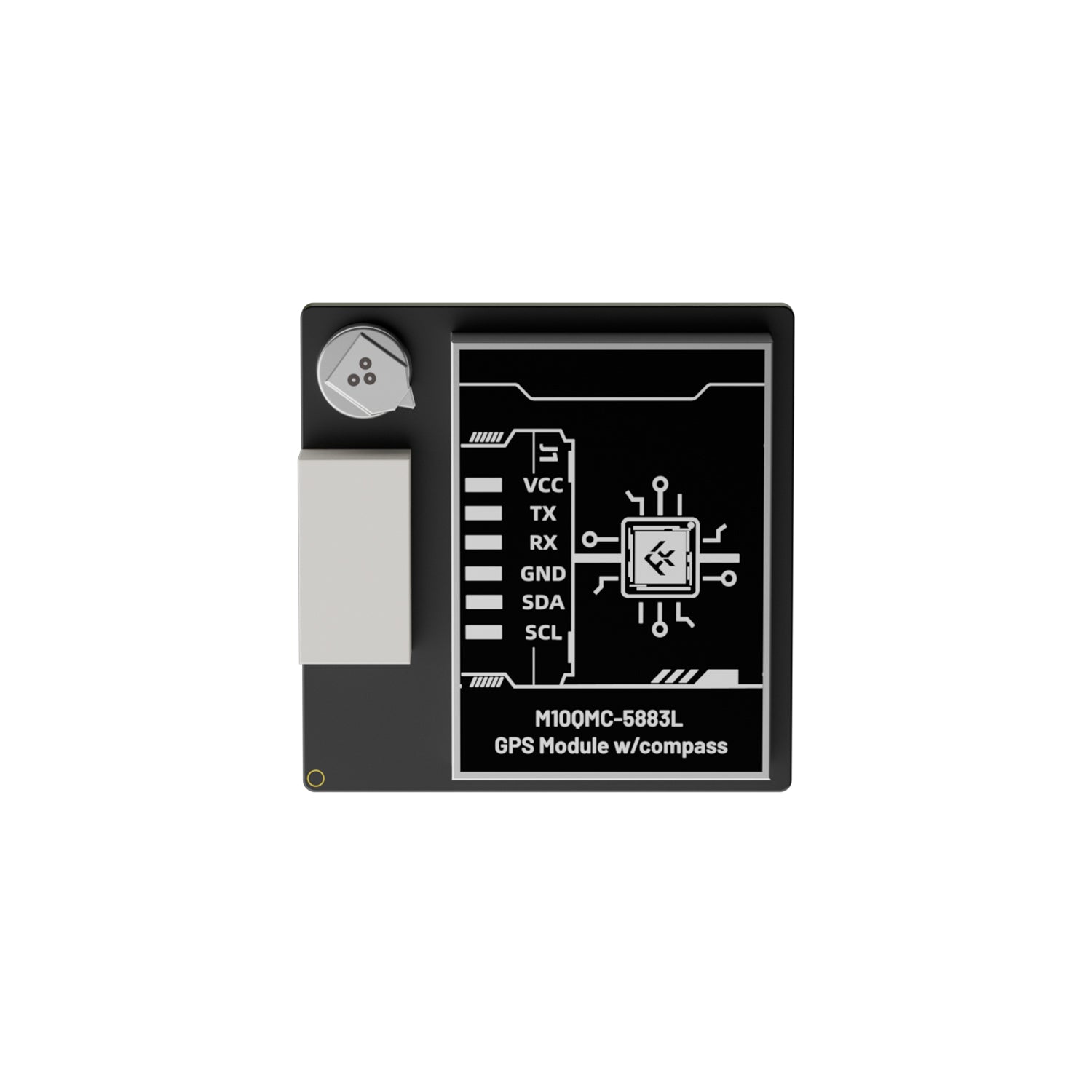

GPS pin definition: RX/TX UART

Compass pin definition: SDA/SLA

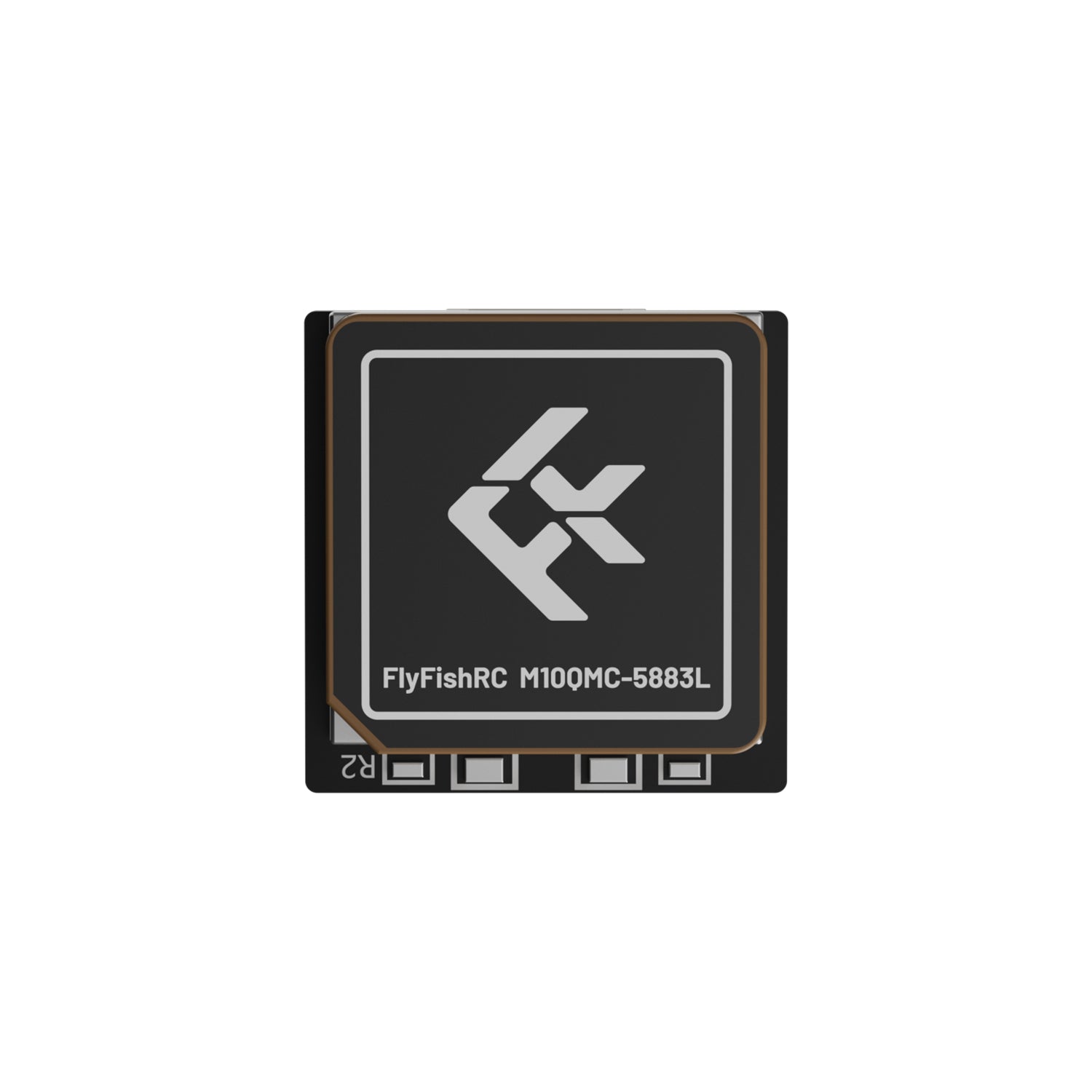

GPS patch antenna size: 18 x 18 mm

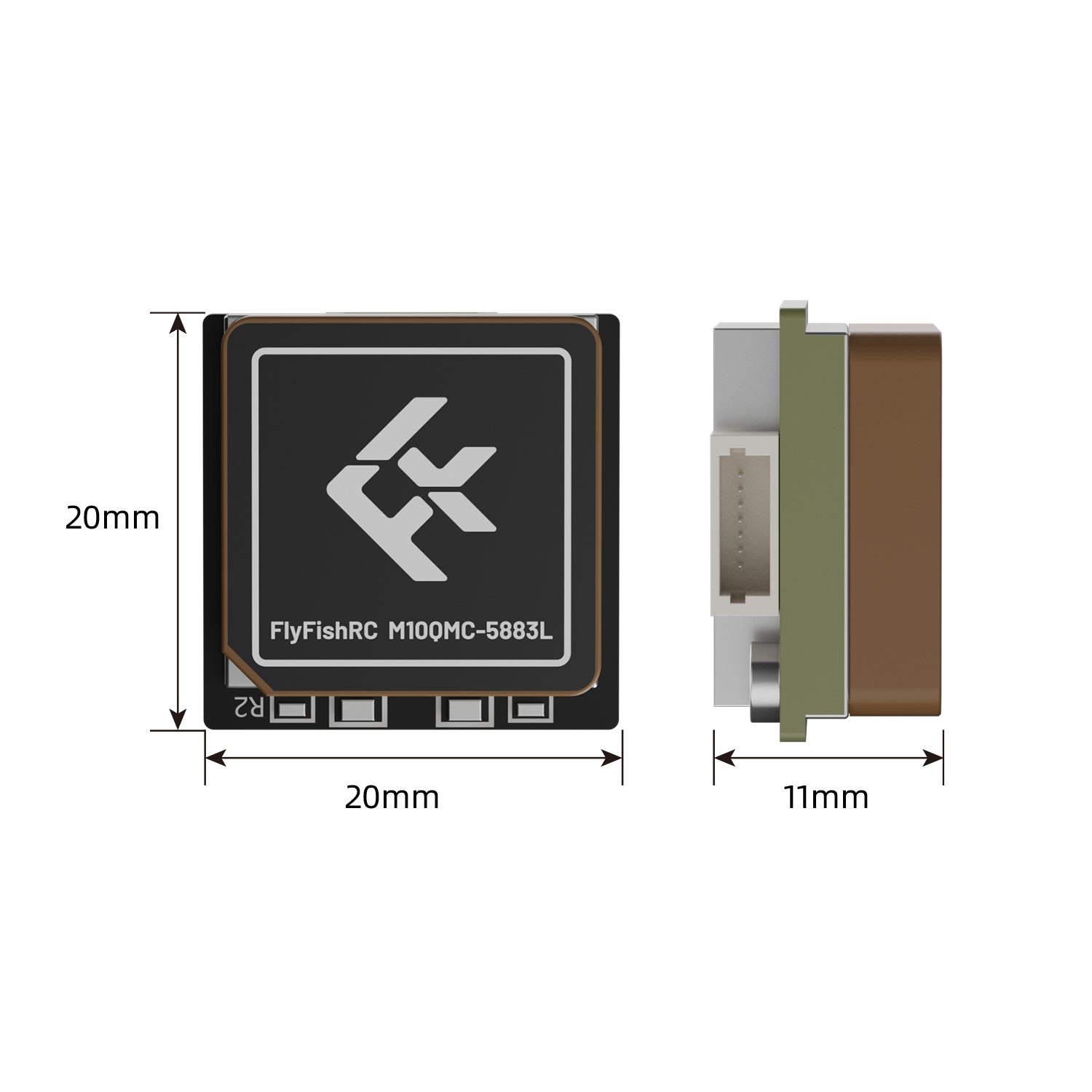

Total dimensions：20 x 20 x 11 mm

Features:

-72 channel 10 Hz Refresh rate

-Built-in TCXO crystal and farad capacitor for faster hot start

-High sensitivity 18x18mm GPS patch antenna

-SH1.0-6Pin terminal design, no soldering required.

-QMC5883L Magnetometer chip，Precise pointing

Includes:

1x FlyFishRC M10QMC GPS Module

1x SH1.0-6Pin Cable

1x SH1.0 Connector

1x GPS Manual
