Holybro M9N GPS

Stok kodu: 12027 Kategoriler:

Description
The M9N GPS uses multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurre

Yurt Dışı Teslimat

Yurtdışı teslimat ürünleri Siparişinizden sonra 3 iş günü içerisinde teslimat tarihi sağlanmaktadır.

Ortalama teslimat süresi 24 iş günüdür.

Bu ürün şu anda stokta yok veya mevcut değil.

6 kişi şu anda bu ürünü inceliyor
  • Stoktan Teslim Desteği

Stoktan teslim ürünler 2 iş günü içerisinde kargolanmaktadır.

  • Yurt Dışı Tedarik

Yurt dışı tedarik siparişleriniz 3 iş günü içerisinde teslimat tarihi ile bilgilendirilmektedir.

Ortalama 24 iş günü içerisinde teslimat sağlanmaktadır.

  • DHL UÇAK KARGO

Yurt dışı tedarik ürünlerimiz DHL Uçak kargo yoluyla tedarik edilmektedir. Uçağa teslim edilen ürünler ortalama 7 İş gününde teslim edilmektedir.

  • 1 YIL FABRİKA GARANTİSİ
  • 14 gün içinde İade

Ödeme Seçenekleri

Açıklama

Description

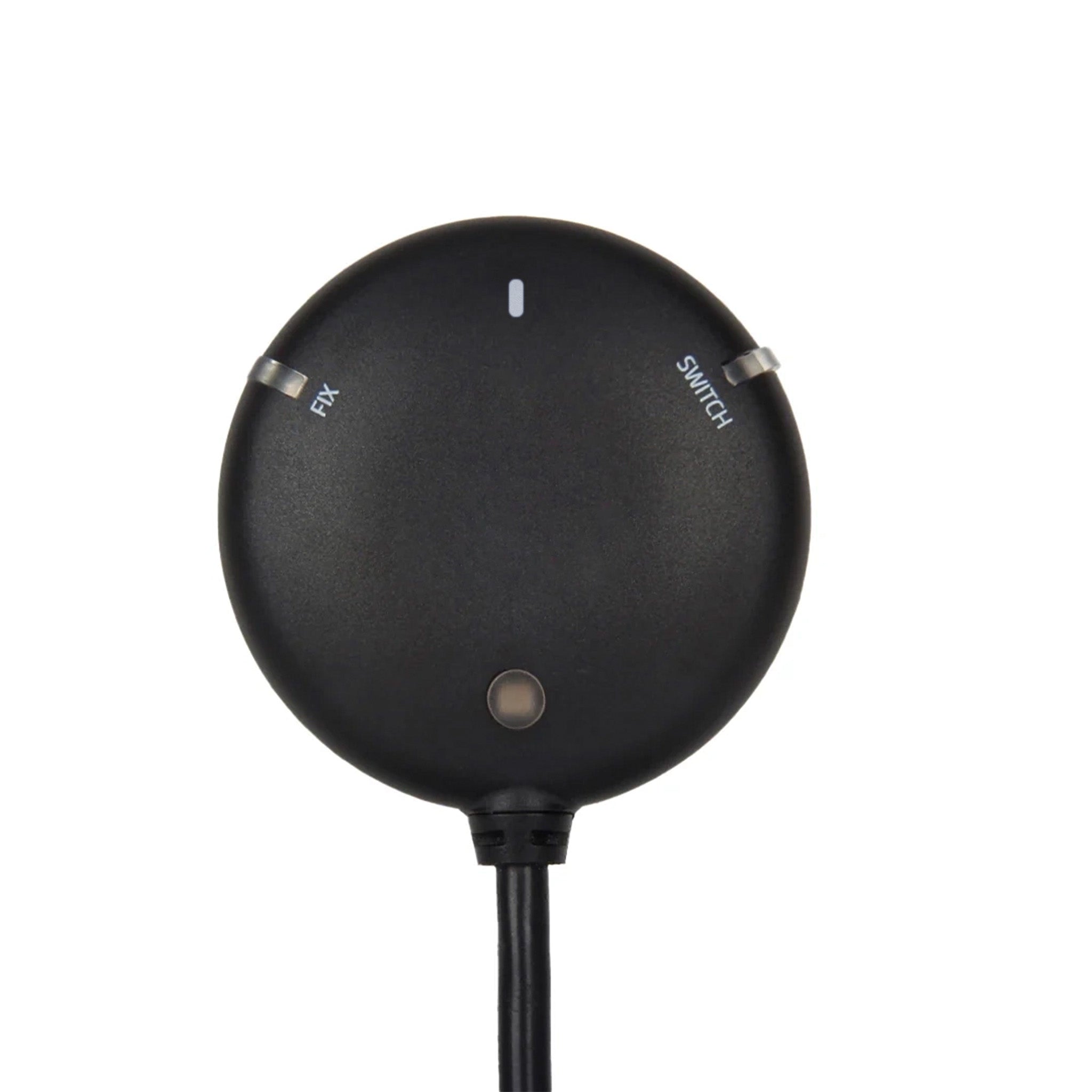

The M9N GPS uses multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently.

It also comes with the IST8310 or IST8308 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connector options for different purposes. This module ships with a baud rate of 115200 (38400 previously).

The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

Feature

  • Ublox M9N GNSS Receiver
  • Accurate Positioning
  • Fast Navigation Update Rate
  • IST8310 or IST8308 Compass
  • High-gain 25*25*4mm antenna
  • Internal Buzzer, Safety switch
  • Ultra Bright UI RGB LED

Note

  • IST8308 is supported by PX4 V1.16.0+ on Pixhawk 6C and 1.14.3+ on Pixhawk 6X
  • The Status LED driver has changed. This LED is supported in PX4 1.14, ArduPilot 4.4.0 & later. (More info)

Specifications

 Holybro M10 GPSHolybro M9N GPS
GNSS ReceiverUblox M10Ublox M9N
Number of Concurrent GNSSUp to 4 GNSSUp to 4 GNSS
BeiDouBeiDou
GalileoGalileo
GLONASSGLONASS
GPSGPS
QZSSQZSS
Frequency BandGPS L1GPS L1
Galileo E1Galileo E1
GLONASS L1GLONASS L1
BeiDou B1BeiDou B1
SBAS L1SBAS L1
QZSS L1QZSS L1
CompassIST8310 or IST8308IST8310 or IST8308
Output ProtocolUBX (U-blox)UBX (U-blox)
NMEANMEA
Accuracy2.0m CEP1.5m CEP
Nav. Update Rate Up to 25 Hz (single GNSS),Up to 25 Hz (4 concurrent GNSS)
Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation SystemEGNOS, GAGAN, MSAS, and WAASEGNOS, GAGAN, MSAS, and WAAS
QZSS: L1SQZSS: L1S
Default Baud Rate115200115200
Input Voltage 4.7-5.2V4.7-5.2V
Connector Type
JST-GH-10pin
JST-GH-6pin
Molex 1.25mm 6pin & 4pin & 3pin (not available for V2)
Antenna25 x 25 x 4 mm ceramic patch antenna
Antenna Gain1.5dbi
Antenna LNA Gain22dB
Power consumptionLess than 200mA @ 5VLess than 200mA @ 5V
Operating Temperature-40~80°C-40~80°C
Version
V1 V2
V1 V2
Dimension
φ50 x14.4 mm φ51 x18.5 mm
 φ50 x14.4 mmφ51 x18.5 mm

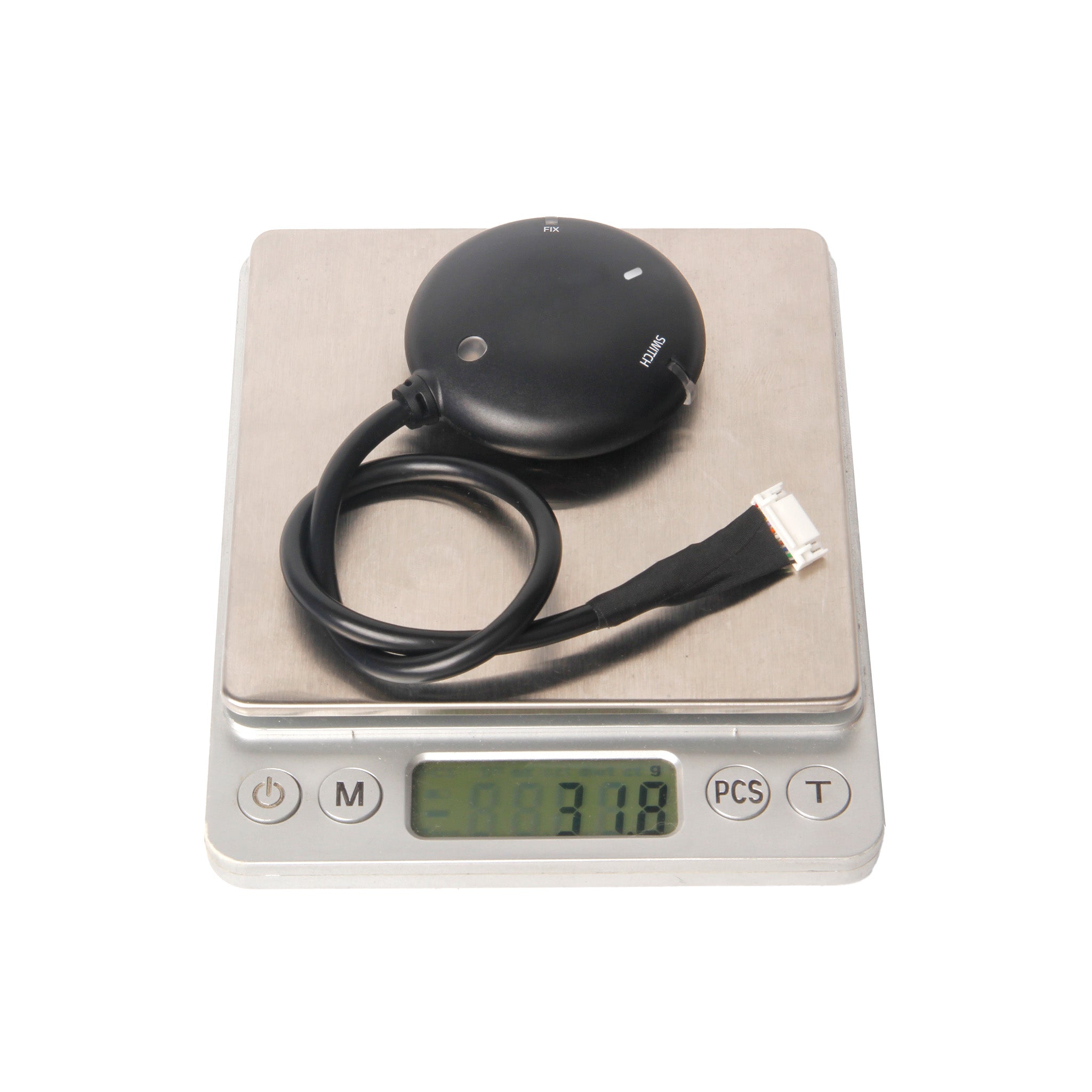

Weight
32g 36.8g
 32g36.8g
IP Rating
 NAIP67
 NAIP67
Cable Length27cm (42cm cable purchase separately)27cm (42cm cable purchase separately)
Other (V1)Tri-color LEDTri-color LED
Onboard BuzzerOnboard Buzzer
Safety SwitchSafety Switch
LNA MAX2659ELT+ RF AmplifierLNA MAX2659ELT+ RF Amplifier
Rechargeable Farah capacitanceRechargeable Farah capacitance
Low-noise 3.3V regulatorLow-noise 3.3V regulator

    Note

    • The Status LED driver has changed. This LED is supported in PX4 1.14, ArduPilot 4.4.0 & later. (More info)
    • Ardupilot User: If unable to perform normal compass calibration “compass dance” for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.

    PIN MAP

    Difference between the three cable options

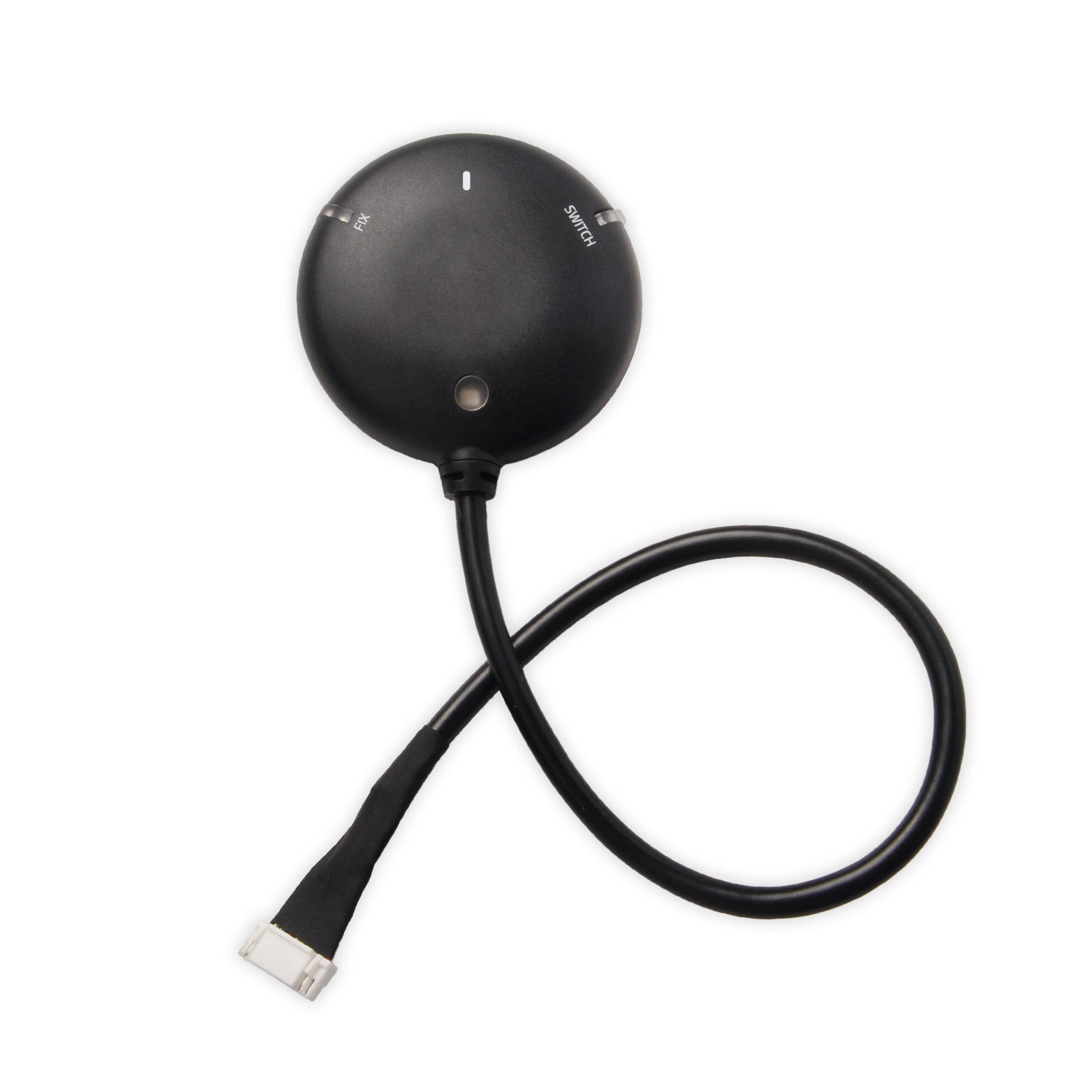

    SKU12027 & SKU12089 – Holybro M9N GPS (JST GHR1.25mm 10pin cable):

    • This option is the most common; it is used on the This connector can be used on Pixhawk Standard Flight Controller 10-pin “GPS Module” or “GPS1” input port.

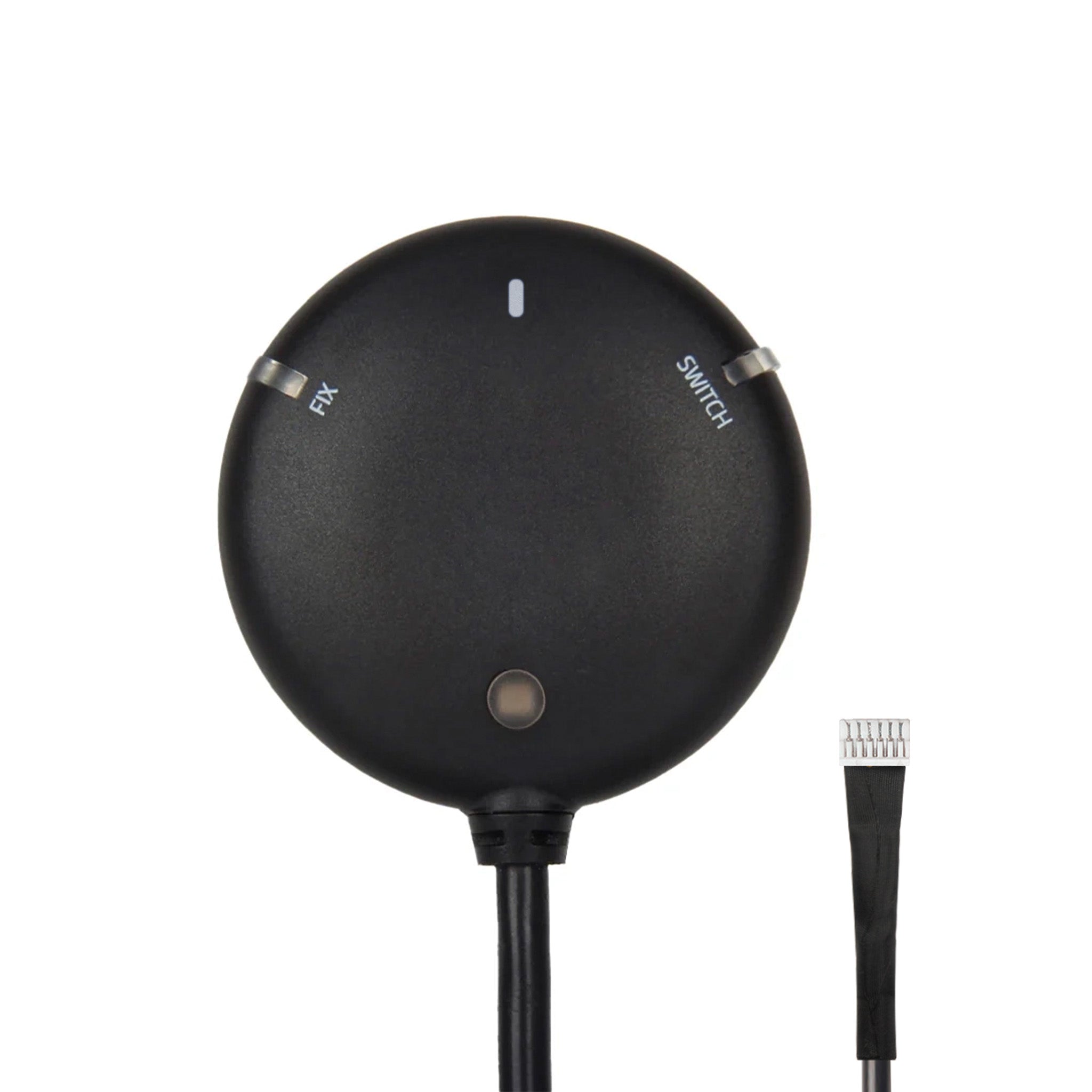

    SKU12029 & SKU12090 – Holybro M9N Secondary GPS (JST GHR1.25mm 6pin cable):

    • This connector can be used on Pixhawk Standard Flight Controller 6-pin“UART & I2C” or “GPS2” input port as a secondary GPS. This GPS is also compatible with the Cube Flight Controller GPS2 Port.

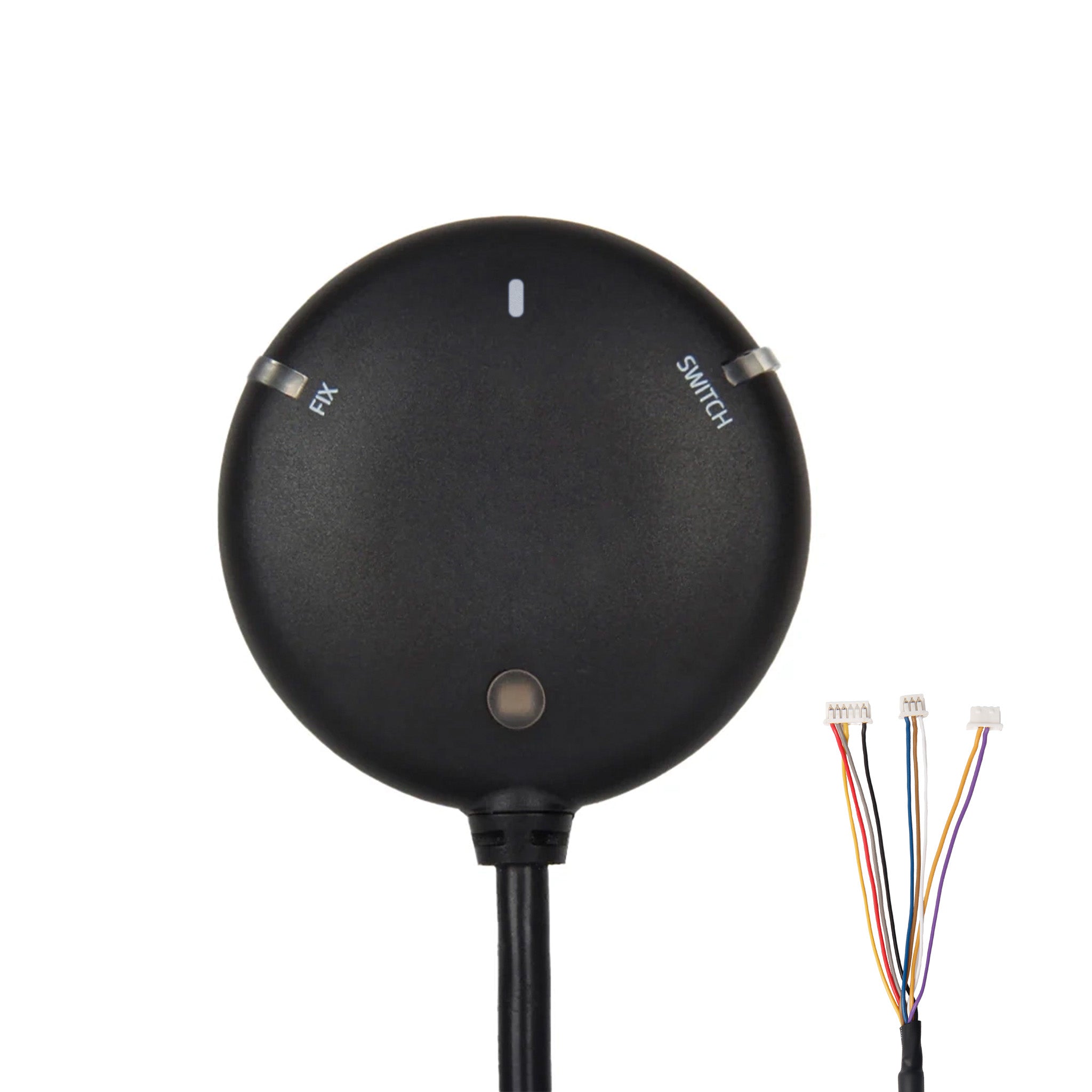

    SKU12028 – Holybro M9N GPS for Pix32 & Pixhawk1/2.4.6/2.4.8 (Molex1.25mm 6pin & 4pin &3pin cable):

    • This SKU is no longer in production. For customers who need a GPS with a cable that is compatible with Pix32 & Pix32 & Pixhawk1/2.4.6/2.4.8, please visit the GPS extension cable product page to purchase and install the cable separately.

    Reference Link:

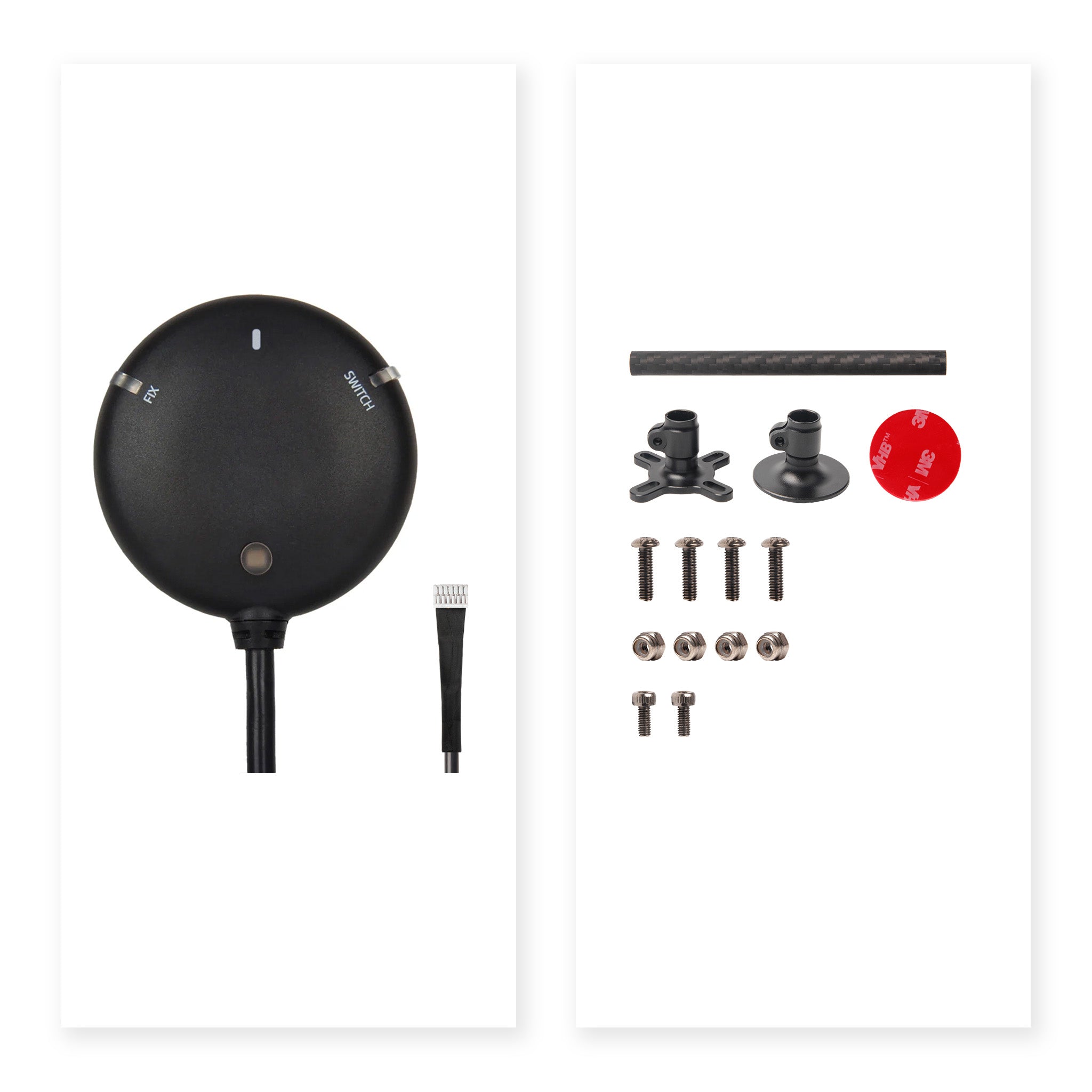

    Package Includes:

    • 1x M9N GPS Module

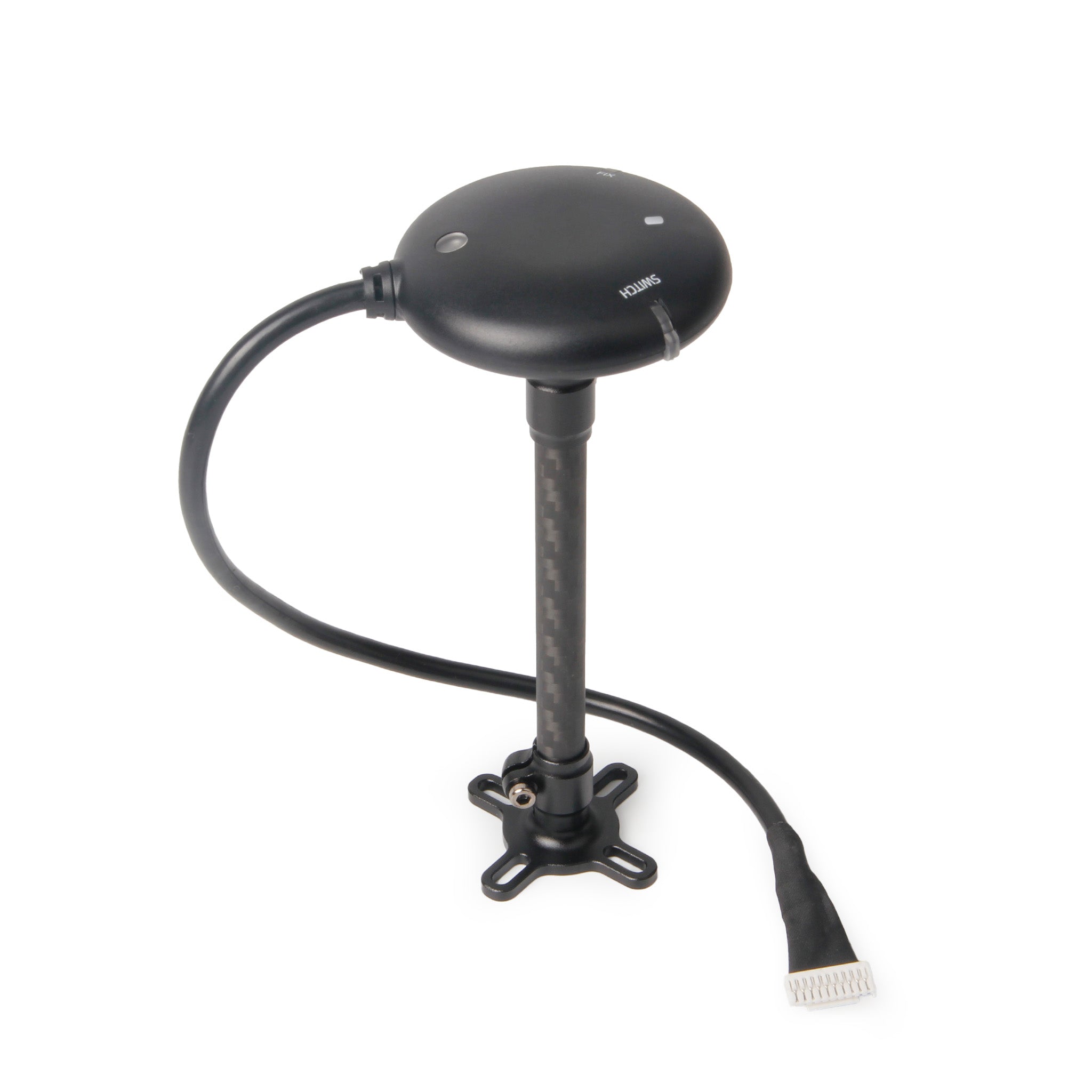

    • 1x Fixed Carbon Fiber GPS mount
