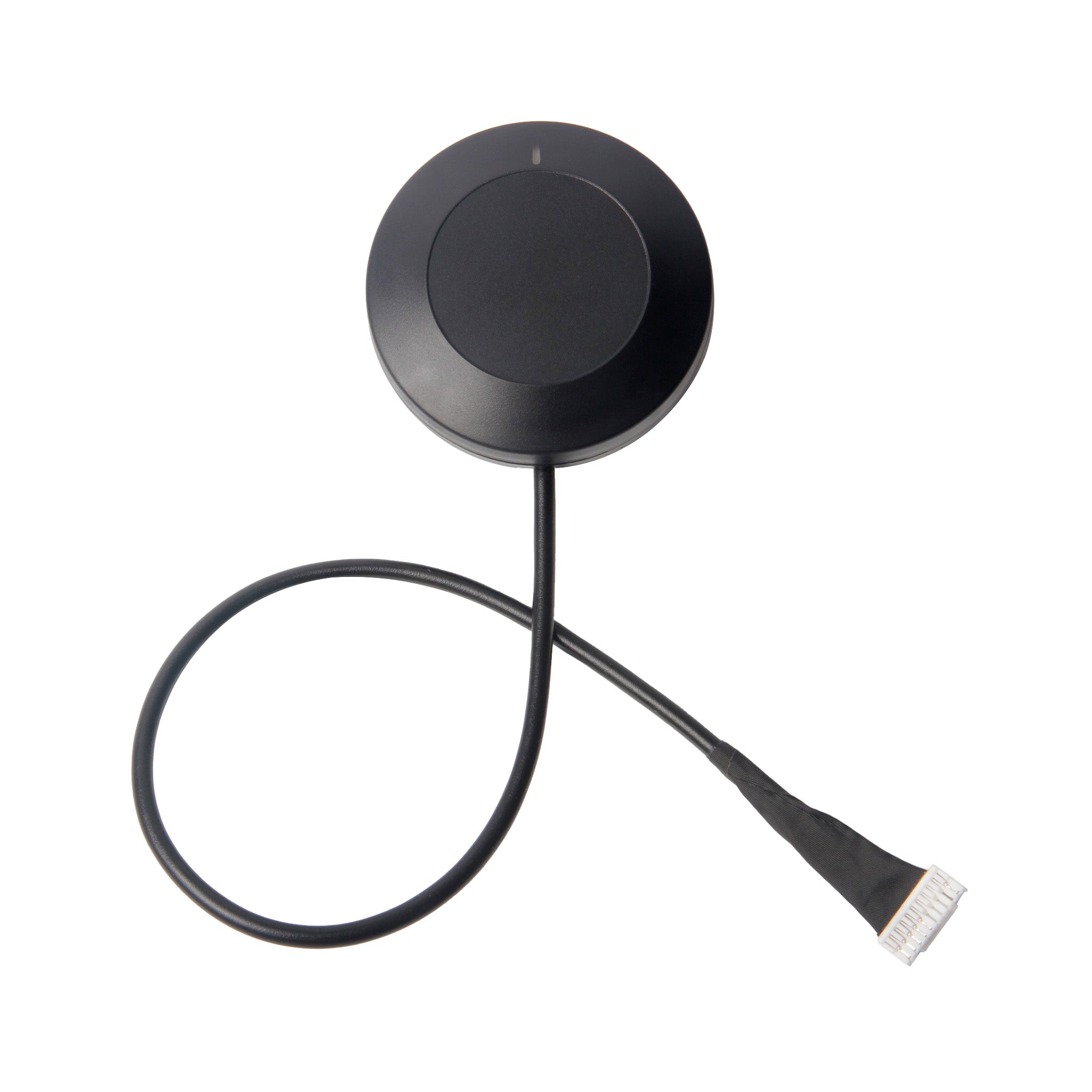

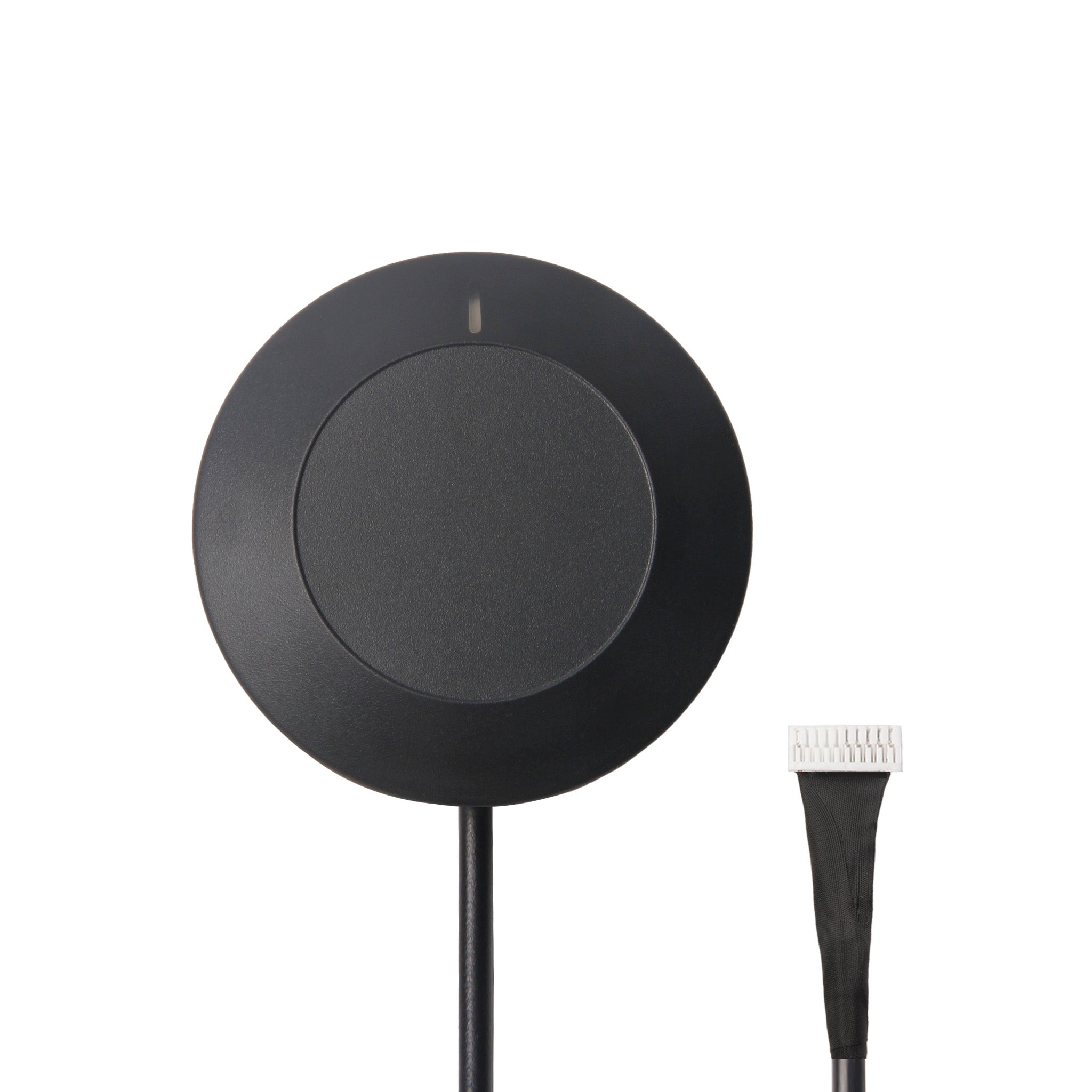

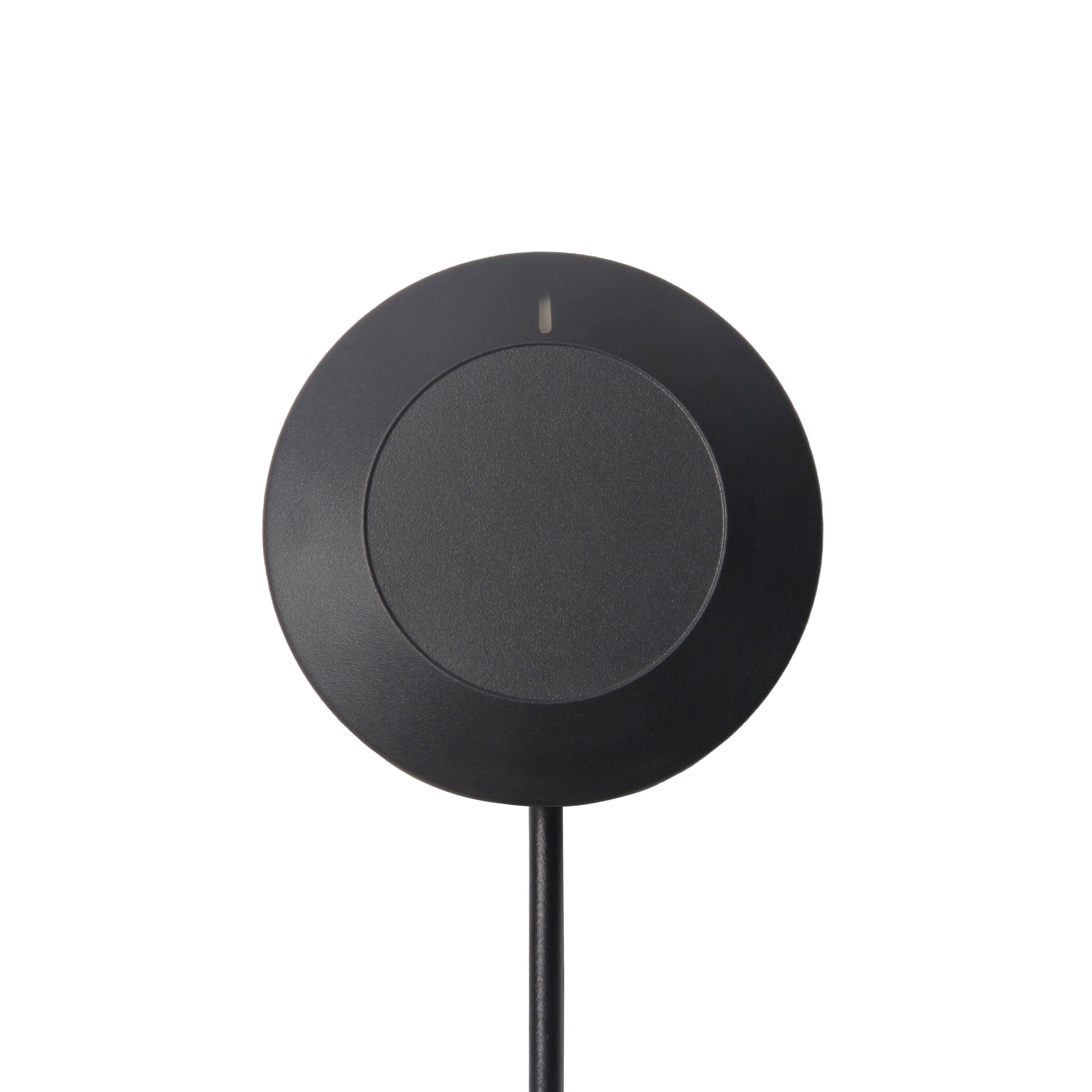

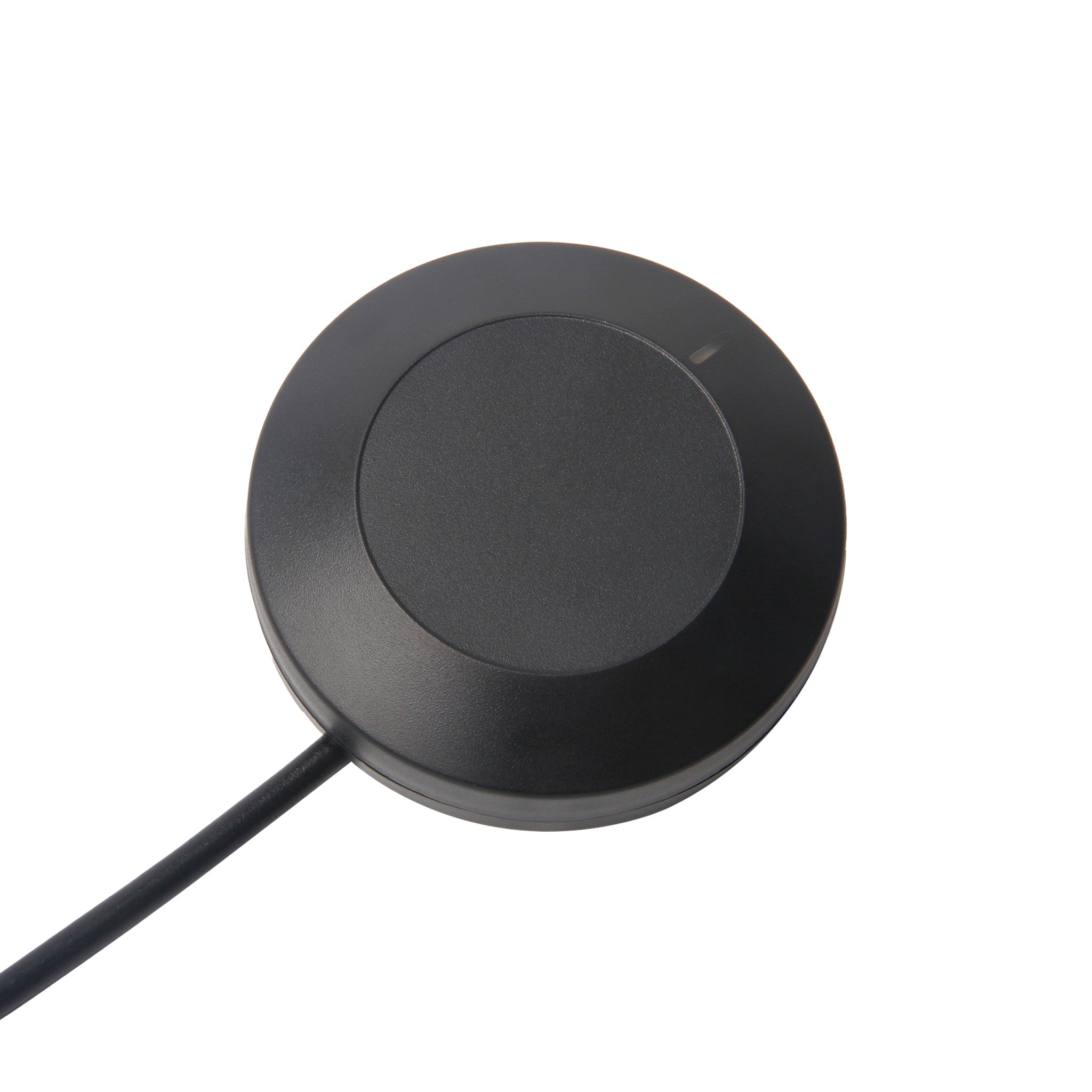

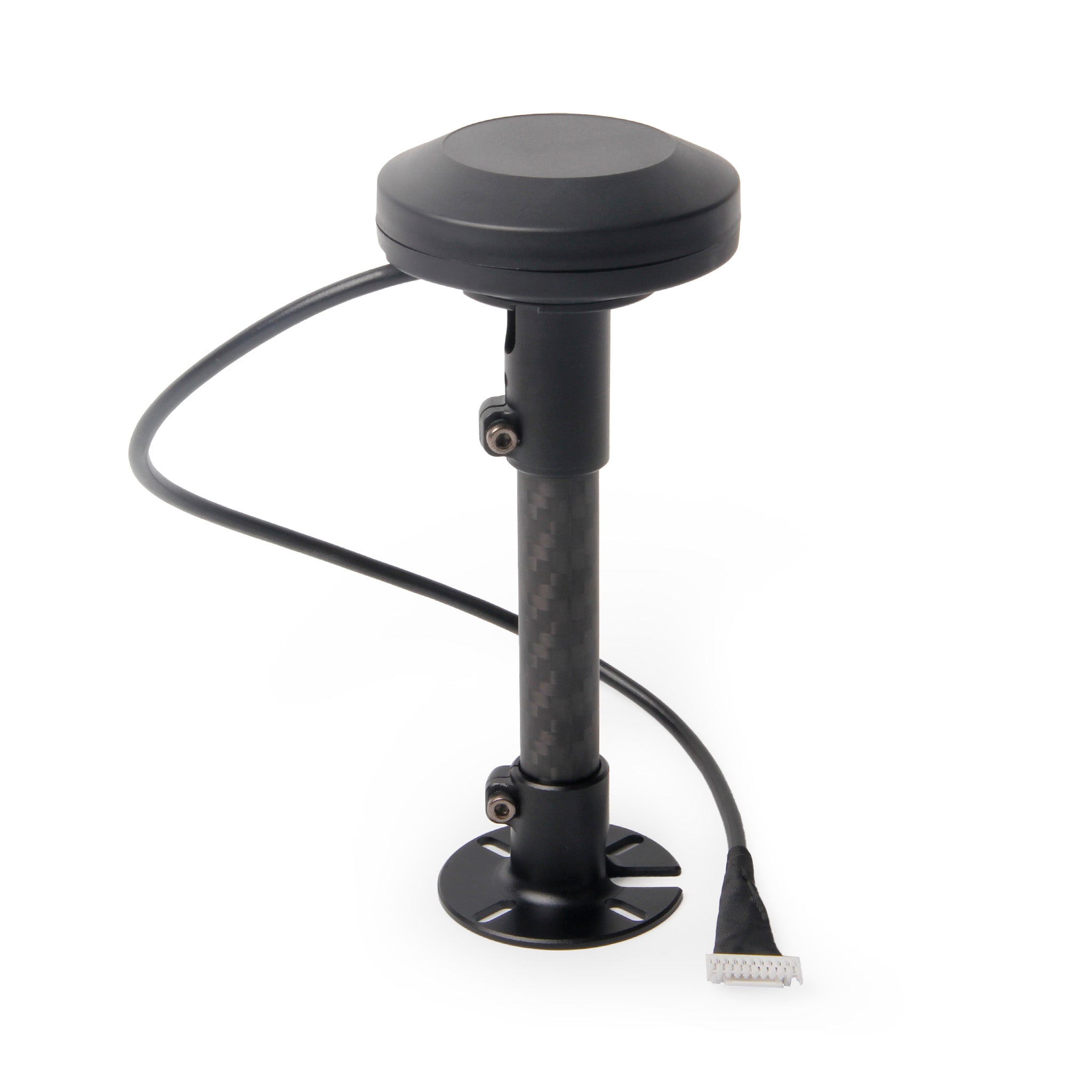

Holybro M9N & M10 GPS V2 (IP67)

Stok kodu: 12089 Kategoriler:

Description
The M9N/M10 V2 GPS uses multi-constellation GNSS powered by u-blox M9N/M10, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be receiv

Yurt Dışı Teslimat

Yurtdışı teslimat ürünleri Siparişinizden sonra 3 iş günü içerisinde teslimat tarihi sağlanmaktadır.

Ortalama teslimat süresi 24 iş günüdür.

Bu ürün şu anda stokta yok veya mevcut değil.

4 kişi şu anda bu ürünü inceliyor
  • Stoktan Teslim Desteği

Stoktan teslim ürünler 2 iş günü içerisinde kargolanmaktadır.

  • Yurt Dışı Tedarik

Yurt dışı tedarik siparişleriniz 3 iş günü içerisinde teslimat tarihi ile bilgilendirilmektedir.

Ortalama 24 iş günü içerisinde teslimat sağlanmaktadır.

  • DHL UÇAK KARGO

Yurt dışı tedarik ürünlerimiz DHL Uçak kargo yoluyla tedarik edilmektedir. Uçağa teslim edilen ürünler ortalama 7 İş gününde teslim edilmektedir.

  • 1 YIL FABRİKA GARANTİSİ
  • 14 gün içinde İade

Ödeme Seçenekleri

Açıklama

Description

The M9N/M10 V2 GPS uses multi-constellation GNSS powered by u-blox M9N/M10, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently.

The V2 design now comes with a more robust casing and an IP67 water&dust resistance rating.
It comes with a built-in IST8310 compass and tricolored LED indicator. There are 2 different connector options for different purposes. This module ships with a baud rate of 115200.

The high-gain 25 x 25 mm patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

Feature

  • Ublox M9N or M10 GNSS Receiver
  • Accurate Positioning
  • Fast Navigation Update Rate
  • IST8310 Compass
  • High-gain 25*25*4mm antenna
  • RGB UI LED controlled by the flight controller
  • IP67 water & dust resistance

Changes From The V1 design

  • New casing with IP67 rating
  • Added SAW filter and receiver shielding for better signal integrity
  • Removed buzzer and safety switch to reduce EM/RF interference
  • Removed safety switch LED and GPS Fix LED

    • Only the RGB UI LED controlled by the flight controller is present for better status recognition

Specifications

 Holybro M10 GPSHolybro M9N GPS
GNSS ReceiverUblox M10Ublox M9N
Number of Concurrent GNSSUp to 4 GNSSUp to 4 GNSS
BeiDouBeiDou
GalileoGalileo
GLONASSGLONASS
GPSGPS
QZSSQZSS
Frequency BandGPS L1GPS L1
Galileo E1Galileo E1
GLONASS L1GLONASS L1
BeiDou B1BeiDou B1
SBAS L1SBAS L1
QZSS L1QZSS L1
CompassIST8310IST8310
Output ProtocolUBX (U-blox)UBX (U-blox)
NMEANMEA
Accuracy2.0m CEP1.5m CEP
Nav. Update Rate Up to 25 Hz (single GNSS),Up to 25 Hz (4 concurrent GNSS)
Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation SystemEGNOS, GAGAN, MSAS, and WAASEGNOS, GAGAN, MSAS, and WAAS
QZSS: L1SQZSS: L1S
Default Baud Rate115200115200
Input Voltage 4.7-5.2V4.7-5.2V
Connector Type
JST-GH-10pin
JST-GH-6pin
Molex 1.25mm 6pin & 4pin & 3pin (not available for V2)
Antenna25 x 25 x 4 mm ceramic patch antenna
Antenna Gain1.5dbi
Antenna LNA Gain22dB
Power consumptionLess than 200mA @ 5V
Operating Temperature-40~80°C
Dimensionφ51 x18.5 mmφ51 x18.5 mm

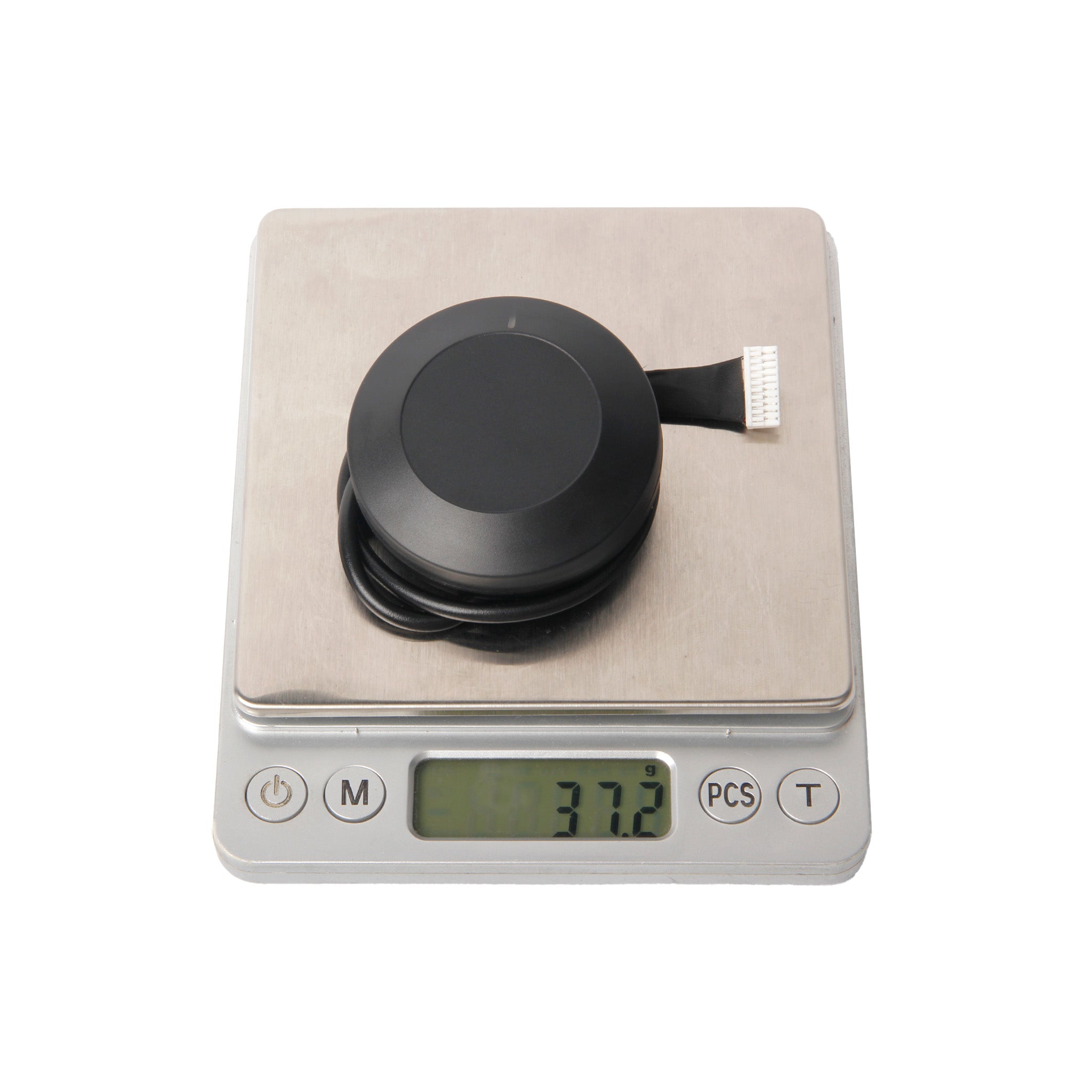

Weight36.8g36.8g
IP RatingIP67IP67
Cable Length26cm (42cm cable purchase separately)
Other (V2)High-performance SAW Filter
Added RF shielding on the receiver module
LNA MAX2659ELT+ RF Amplifier
Rechargeable Farah capacitance
Low-noise 3.3V regulator

    Note

    • This LED is supported in PX4 1.14, ArduPilot 4.4.0 & later. (More info)
    • Ardupilot User: If unable to perform normal compass calibration “compass dance” for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.

    PIN MAP

    The difference between the two cable options

    SKU12089 & 12086 – Holybro M9N/M10 GPS (JST GHR1.25mm 10pin cable):

    • This option is the most common; it is used on the This connector can be used on Pixhawk Standard Flight Controller 10-pin “GPS Module” or “GPS1” input port.

    SKU12090 & 12087 – Holybro M9N/M10 Secondary GPS (JST GHR1.25mm 6pin cable):

    • This connector can be used on Pixhawk Standard Flight Controller 6-pin“UART & I2C” or “GPS2” input port as a secondary GPS. This GPS is also compatible with the Cube Flight Controller GPS2 Port.

    Reference Link:

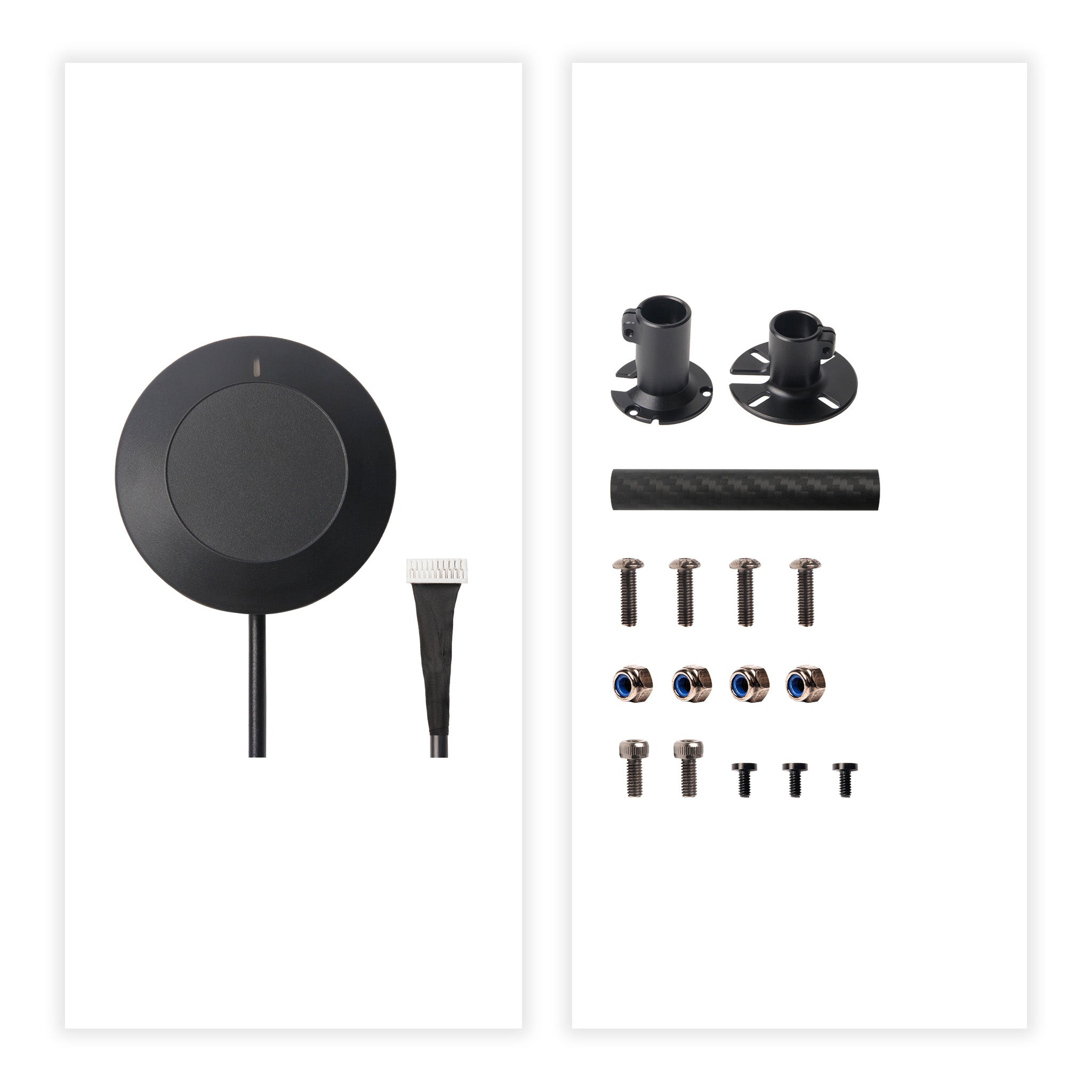

    Package Includes:
