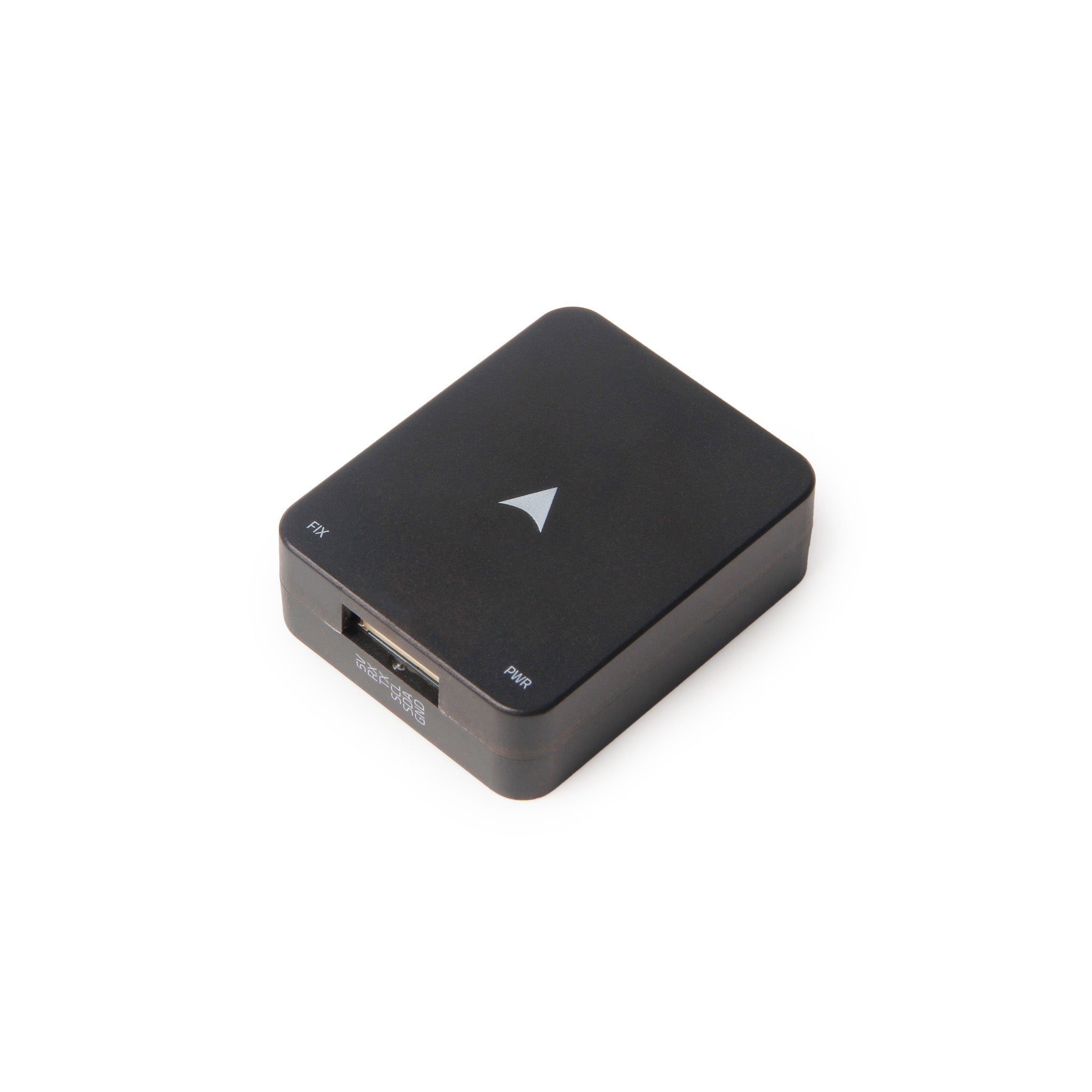

Holybro Micro M9N GPS

Stok kodu: 12046 Kategoriler:

Description:

These Micro GPS use multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received con

Yurt Dışı Teslimat

Yurtdışı teslimat ürünleri Siparişinizden sonra 3 iş günü içerisinde teslimat tarihi sağlanmaktadır.

Ortalama teslimat süresi 24 iş günüdür.

5,062.40 ₺

Temizle
5 kişi şu anda bu ürünü inceliyor
  • Stoktan Teslim Desteği

Stoktan teslim ürünler 2 iş günü içerisinde kargolanmaktadır.

  • Yurt Dışı Tedarik

Yurt dışı tedarik siparişleriniz 3 iş günü içerisinde teslimat tarihi ile bilgilendirilmektedir.

Ortalama 24 iş günü içerisinde teslimat sağlanmaktadır.

  • DHL UÇAK KARGO

Yurt dışı tedarik ürünlerimiz DHL Uçak kargo yoluyla tedarik edilmektedir. Uçağa teslim edilen ürünler ortalama 7 İş gününde teslim edilmektedir.

  • 1 YIL FABRİKA GARANTİSİ
  • 14 gün içinde İade

Ödeme Seçenekleri

Açıklama

Description:

These Micro GPS use multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations, GPS, Galileo, GLONASS, and BeiDou, can be received concurrently. It also comes with the IST8310 or IST8308 compass.

The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

High-Speed Drone GPS Comparison:

This blog post put Holybro M10, M9N, F9P, and Matek M10Q to an ultimate test to determine which GPS units could keep pace with a high-speed drone in acro mode while ensuring precision during RTL and autonomous missions.

Features

  • Ublox M9N GNSS Receiver
  • Accurate Positioning
  • Fast Navigation Update Rate
  • IST8310 or IST8308 Compass
  • Small Form Factor

Note

  • IST8308 is supported by PX4 V1.16.0+ on Pixhawk 6C and 1.14.3+ on Pixhawk 6X

Specifications:

  Holybro Micro M10 GPS Holybro Micro M9N GPS
GNSS Receiver Ublox M10 Ublox M9N
Number of Concurrent GNSS Up to 4 GNSS
– BeiDou
– Galileo
– GLONASS
– GPS
– QZSS		 Up to 4 GNSS
– BeiDou
– Galileo
– GLONASS
– GPS
– QZSS
Frequency Band – GPS L1
– Galileo E1
– GLONASS L1
– BeiDou B1
– SBAS L1
– QZSS L1		 – GPS L1
– Galileo E1
– GLONASS L1
– BeiDou B1
– SBAS L1
– QZSS L1
Compass IST8310 or IST8308 IST8310 or IST8308
Output Protocol – UBX (U-blox)
– NMEA		 – UBX (U-blox)
– NMEA
Accuracy 2.0m CEP 1.5m CEP
Nav. Update Rate  Up to 25 Hz (single GNSS),
Up to 10 Hz (4 concurrent GNSS)		 Up to 25 Hz (4 concerrent GNSS)
GNSS Augmentation System EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S		 EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S
Default Baud Rate 115200 115200
Input Voltage  4.7-5.2V 4.7-5.2V
Port Type JST-GH-6P JST-GH-6P

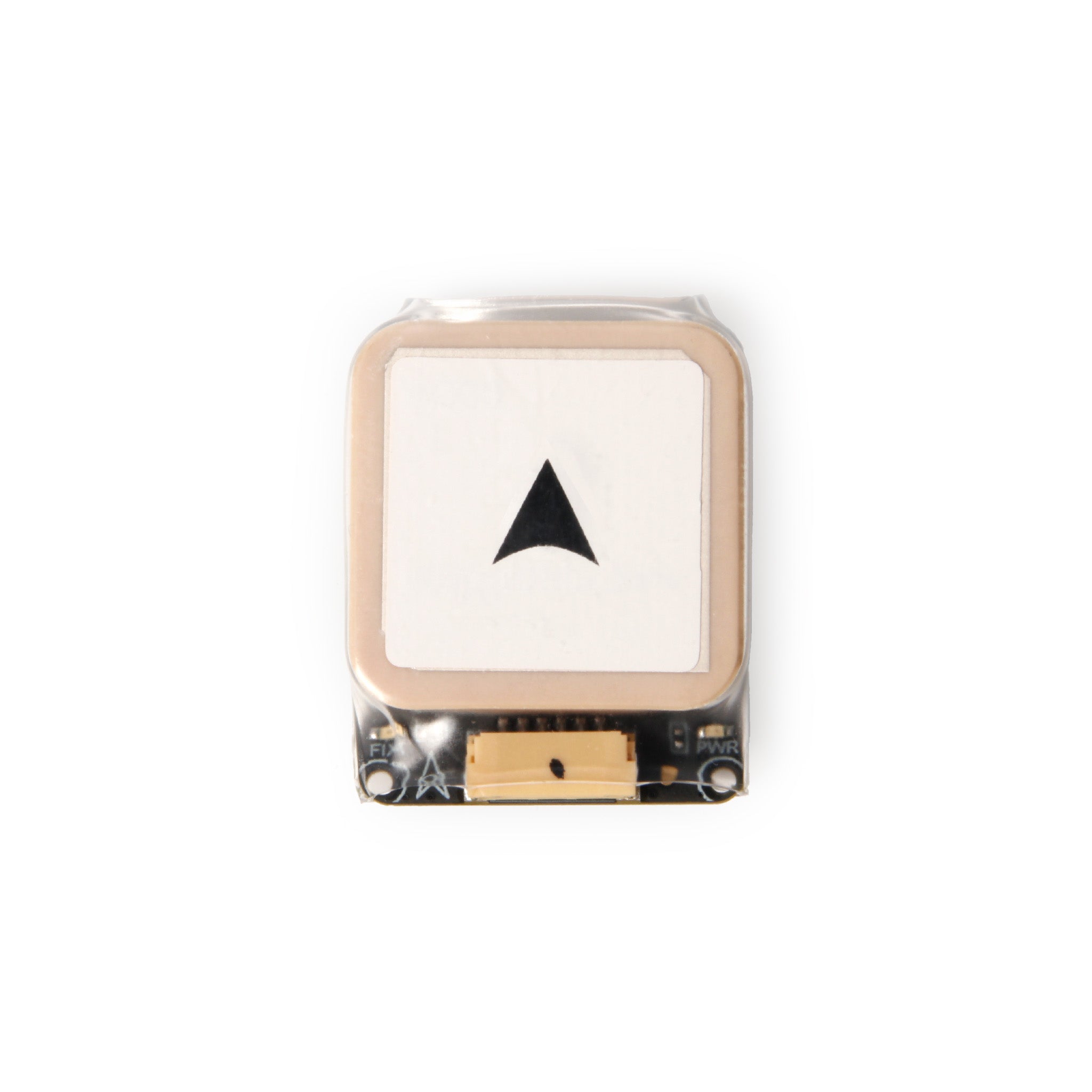

Antenna 25 x 25 x 4 mm ceramic patch antenna
Antenna Gain 1.5dbi
Antenna LNA Gain 22dB
Power consumption Less than 200mA @ 5V Less than 200mA @ 5V
Operating Temperature -40~80℃ -40~80℃
Dimension – 32 x 26 x 9mm (w/o Case)
– 34 x 28 x 11mm (With Case)		 – 32 x 26 x 9mm (w/o Case)
– 34 x 28 x 11mm (With Case)

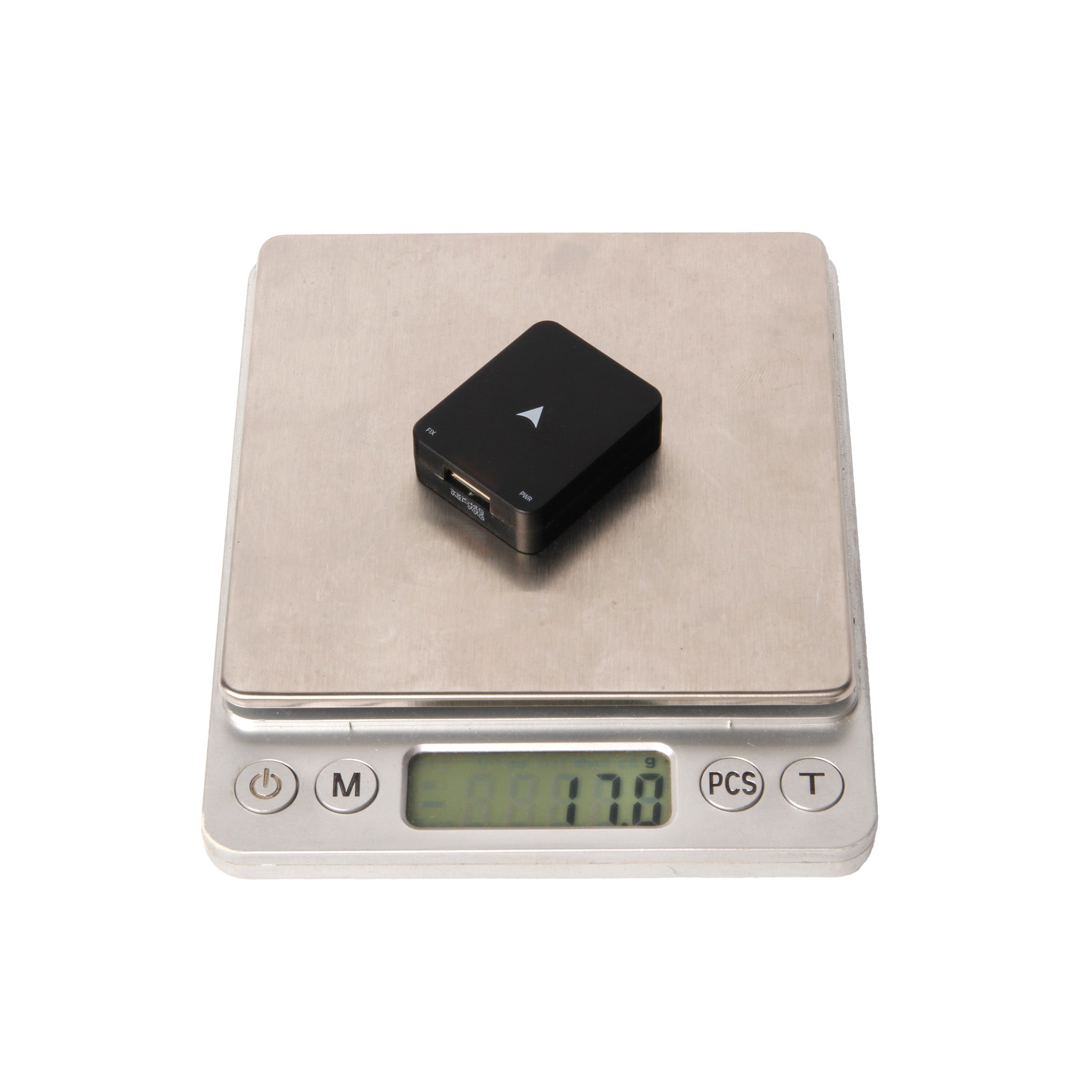

Weight – 14g (w/o Case)
– 16g (With Case)		 – 14g (w/o Case)
– 16g (With Case)
Other – LNA MAX2659ELT+ RF Amplifier
– Rechargeable Farah capacitance
– Low-noise 3.3V regulator		 – LNA MAX2659ELT+ RF Amplifier
– Rechargeable Farah capacitance
– Low-noise 3.3V regulator

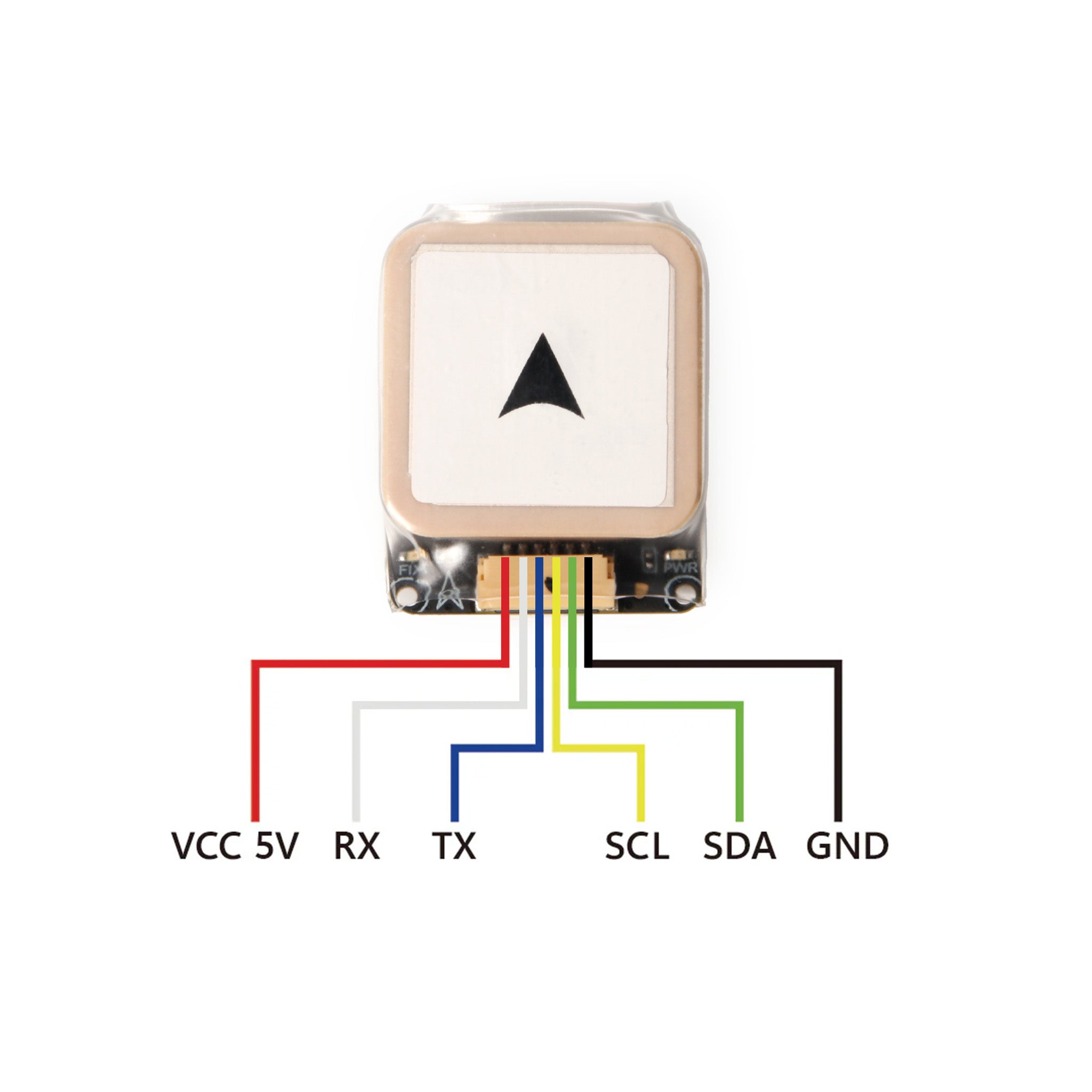

Pin Map

Micro M9N GPS - Holybro Store

Reference Link

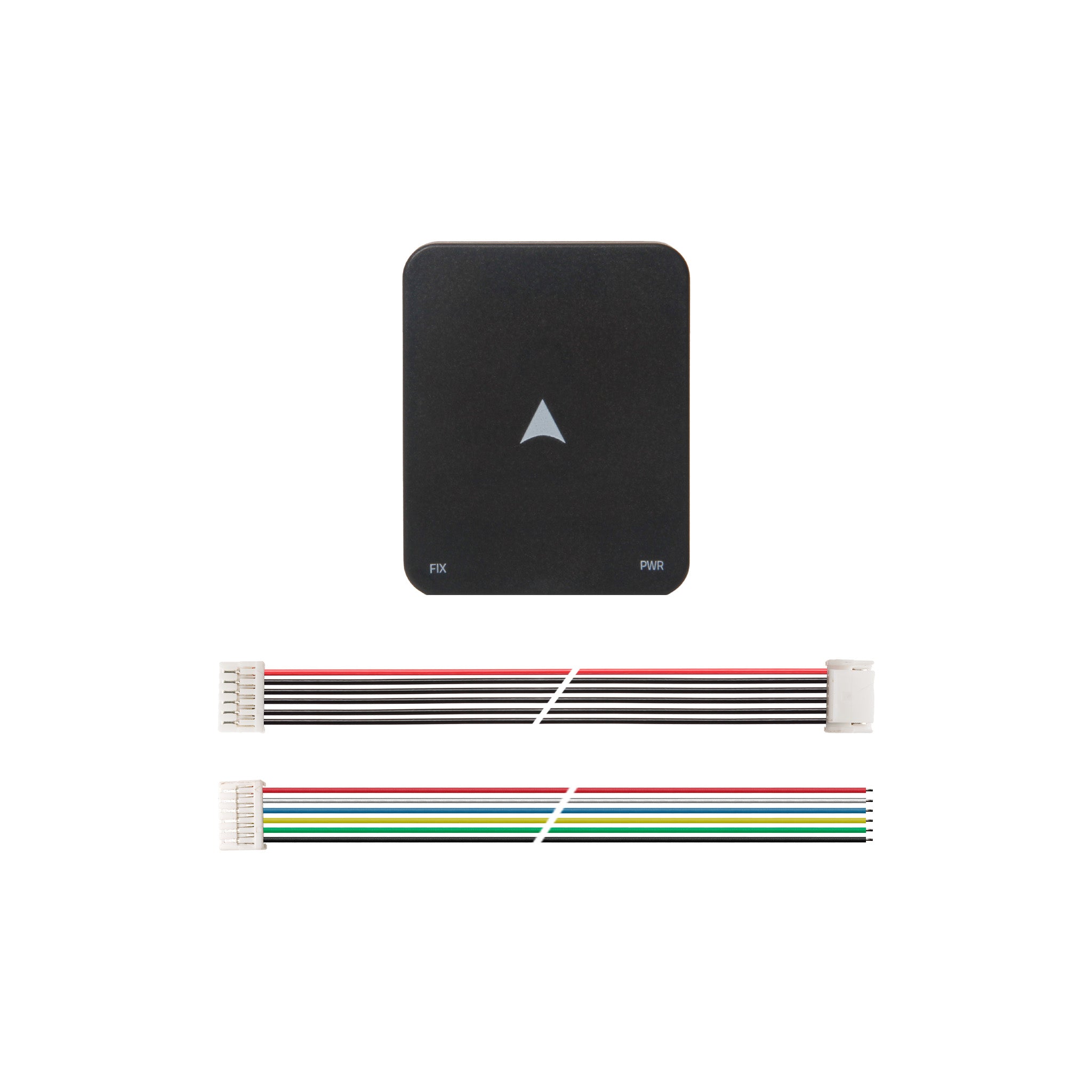

Package Includes:

– 1x Micro GPS module *1
– 1x JST GH 6-pin Connector 15 cm
– 1x JST-GH 6-pin Colored Silicon Cable 15 cm
