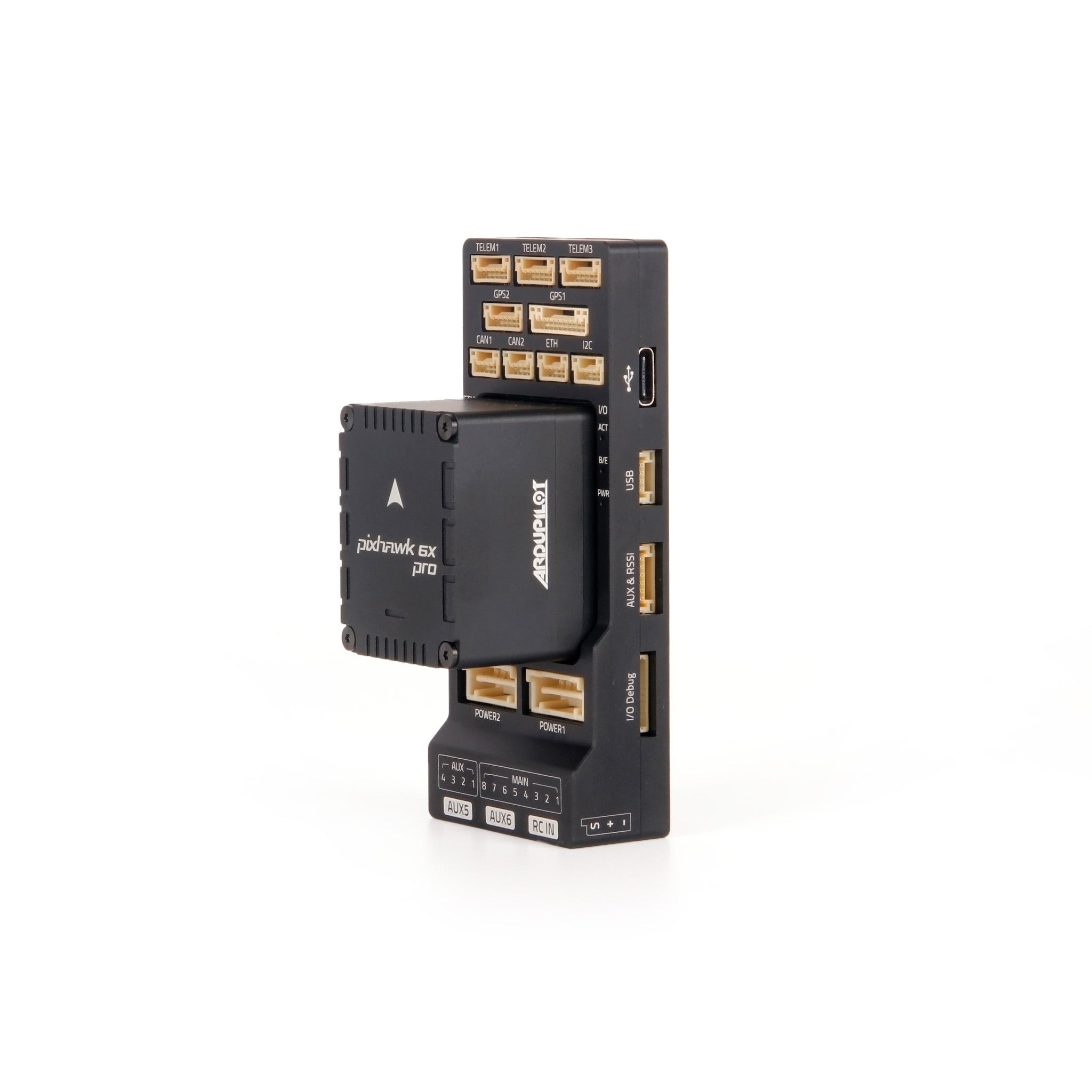

Holybro Pixhawk 6X Pro

Stok kodu: 11070-18117-15011

Key Design Point

High-performance ADIS16470 Industrial IMU with high accelerometer dynamic range (±40 g), perfect for accurate motion sensing in demanding UAV applications

All-New advanced durable vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial a

Yurt Dışı Teslimat

Yurtdışı teslimat ürünleri Siparişinizden sonra 3 iş günü içerisinde teslimat tarihi sağlanmaktadır.

Ortalama teslimat süresi 24 iş günüdür.

Fiyat aralığı: 76,162.00 ₺ - 94,151.60 ₺

Temizle
10 kişi şu anda bu ürünü inceliyor
  • Stoktan Teslim Desteği

Stoktan teslim ürünler 2 iş günü içerisinde kargolanmaktadır.

  • Yurt Dışı Tedarik

Yurt dışı tedarik siparişleriniz 3 iş günü içerisinde teslimat tarihi ile bilgilendirilmektedir.

Ortalama 24 iş günü içerisinde teslimat sağlanmaktadır.

  • DHL UÇAK KARGO

Yurt dışı tedarik ürünlerimiz DHL Uçak kargo yoluyla tedarik edilmektedir. Uçağa teslim edilen ürünler ortalama 7 İş gününde teslim edilmektedir.

  • 1 YIL FABRİKA GARANTİSİ
  • 14 gün içinde İade

Ödeme Seçenekleri

Açıklama

Key Design Point

  • High-performance ADIS16470 Industrial IMU with high accelerometer dynamic range (±40 g), perfect for accurate motion sensing in demanding UAV applications
  • All-New advanced durable vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications
  • Triple redundant IMU & double redundant barometer on separate buses
  • High-performance STM32H753 Processor

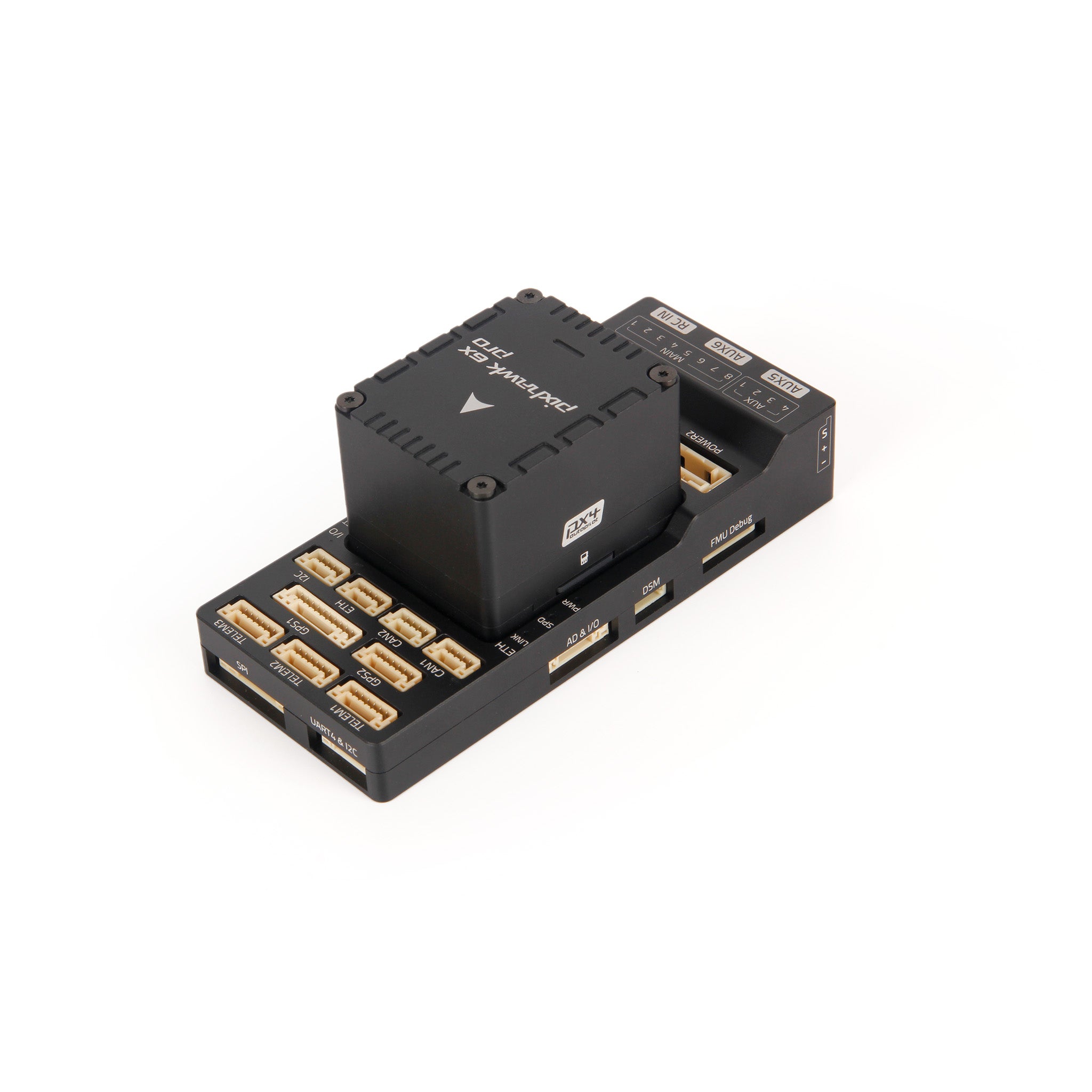

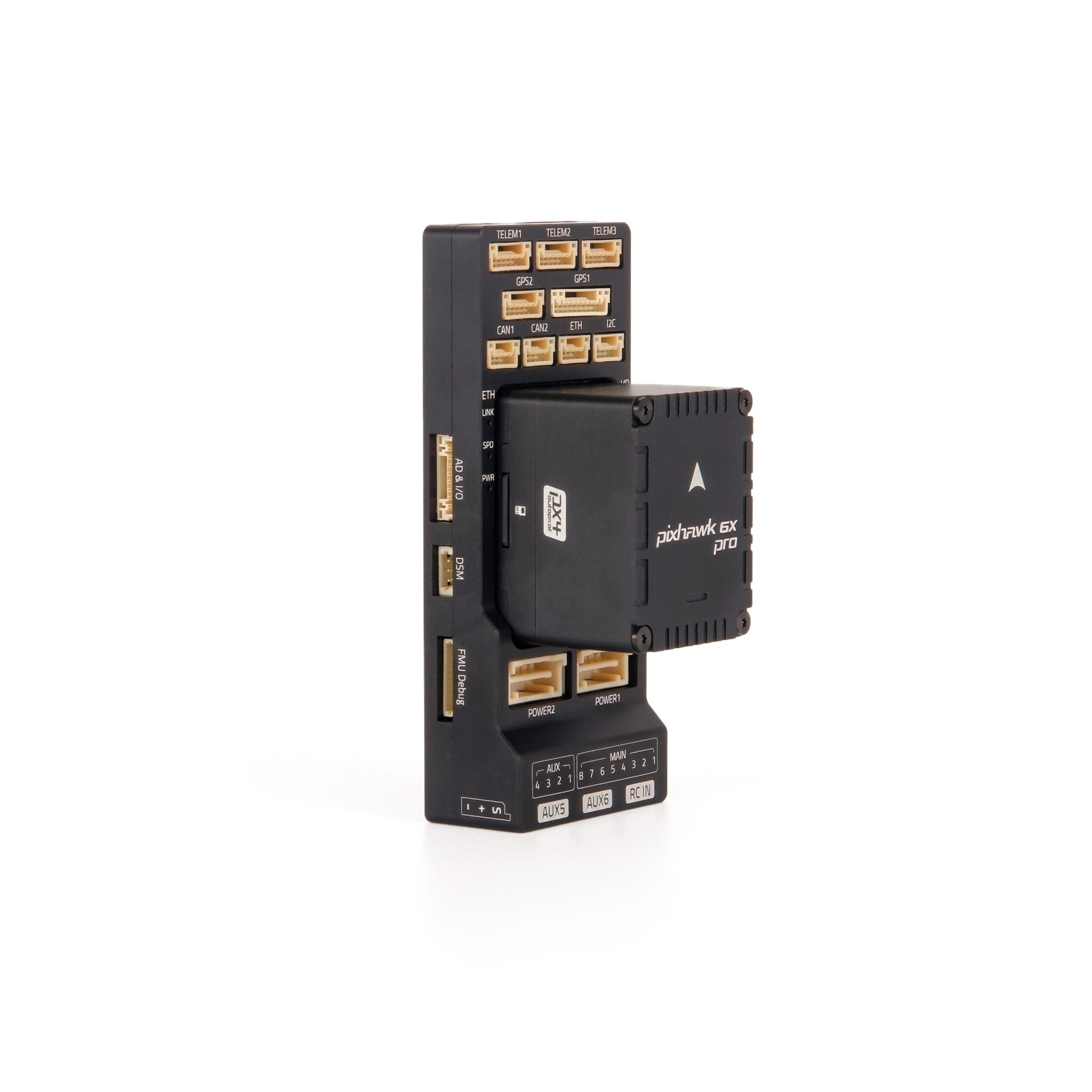

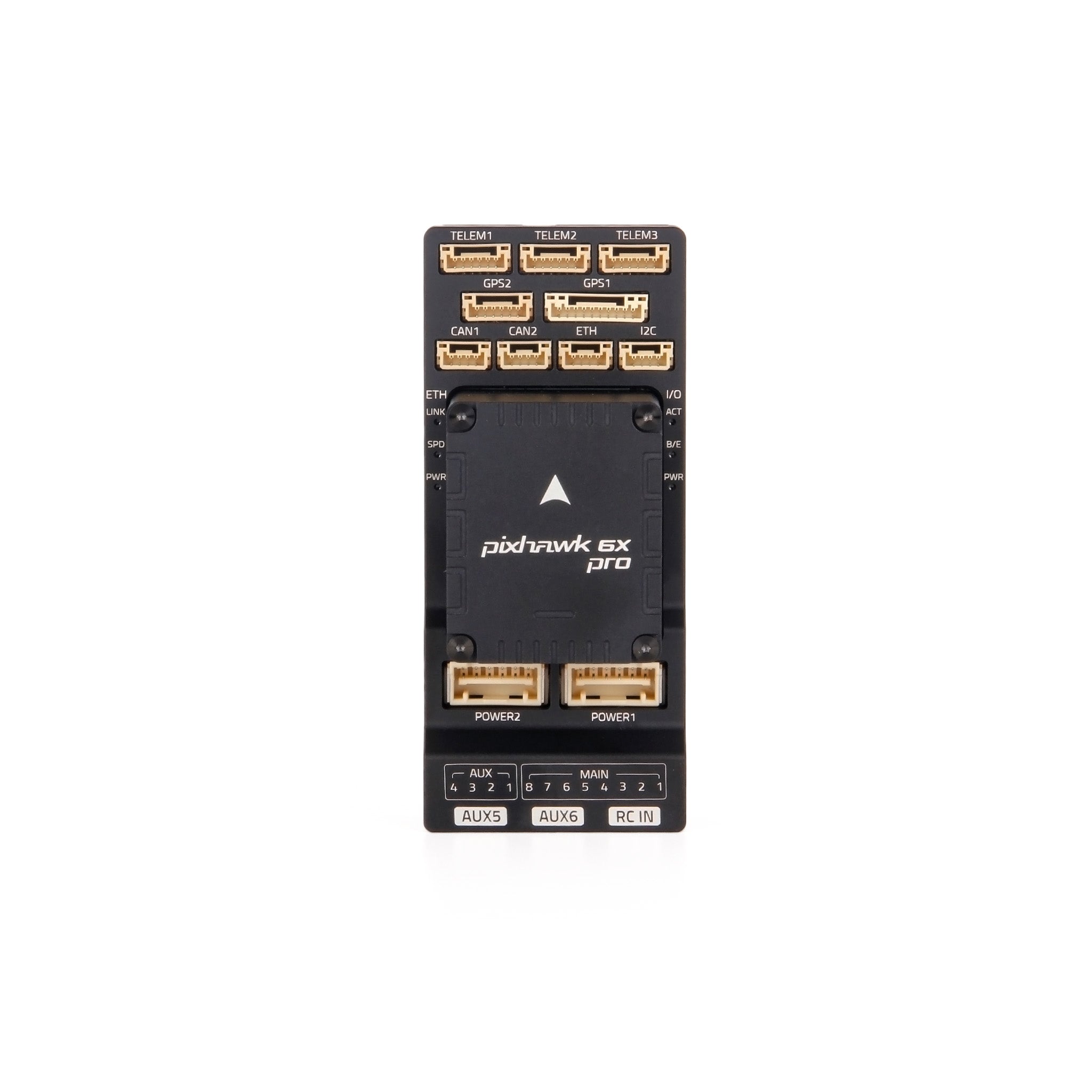

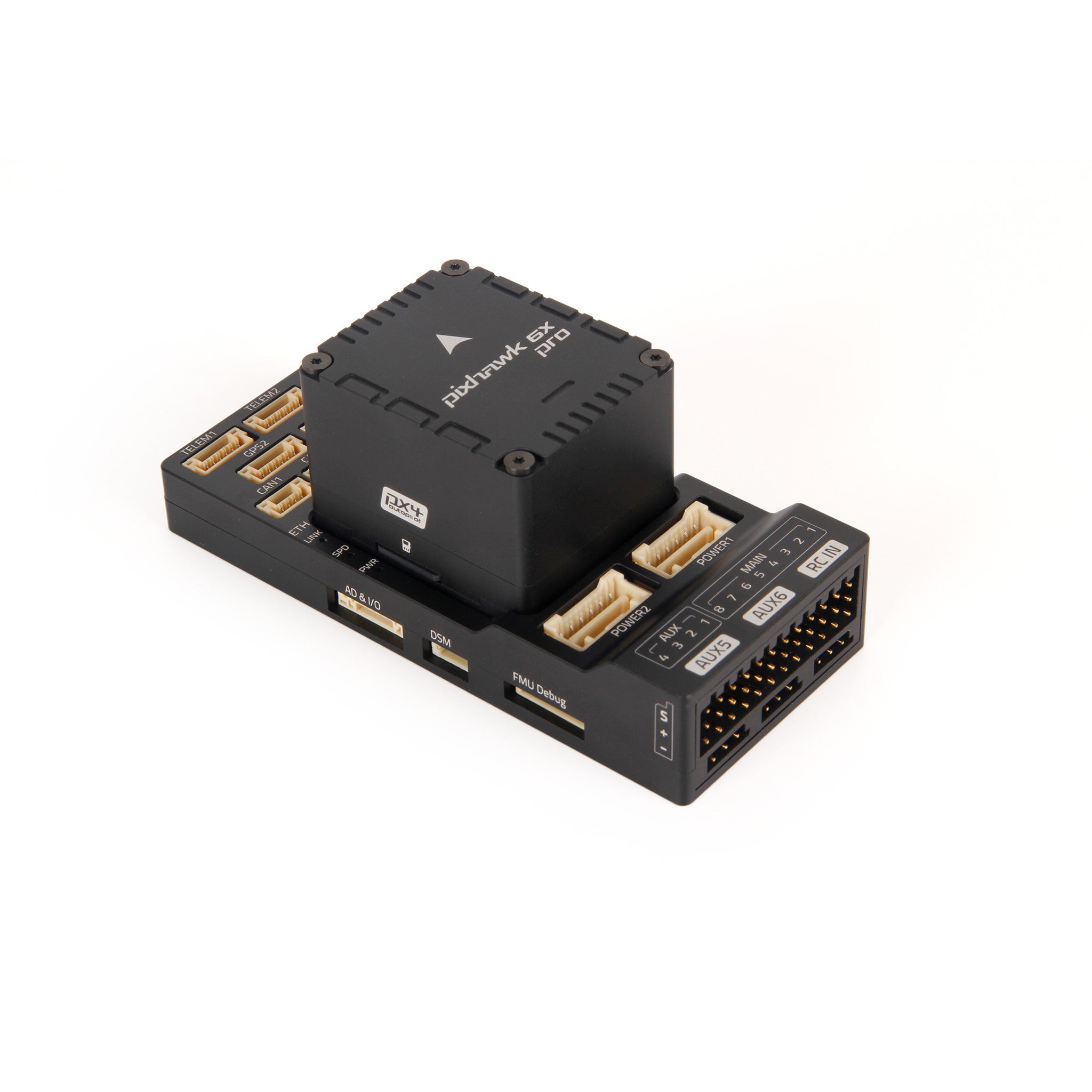

  • Modular flight controller: separated IMU, FMU, and Base system
  • The safety-driven design incorporates sensors from different manufacturers and model lineups
  • Independent LDO powers every sensor with independent power control.
  • Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination).
  • Temperature-controlled IMU board, allowing the optimum working temperature of IMUs
  • Hardware switchable 3.3V or 5V signal mode (requires baseboard modification)

All new Vibration Isolation Design

This new vibration isolation design uses a custom-formulated, durable silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with a resonance frequency in the higher spectrum, perfect for industrial and commercial drones.

Note:

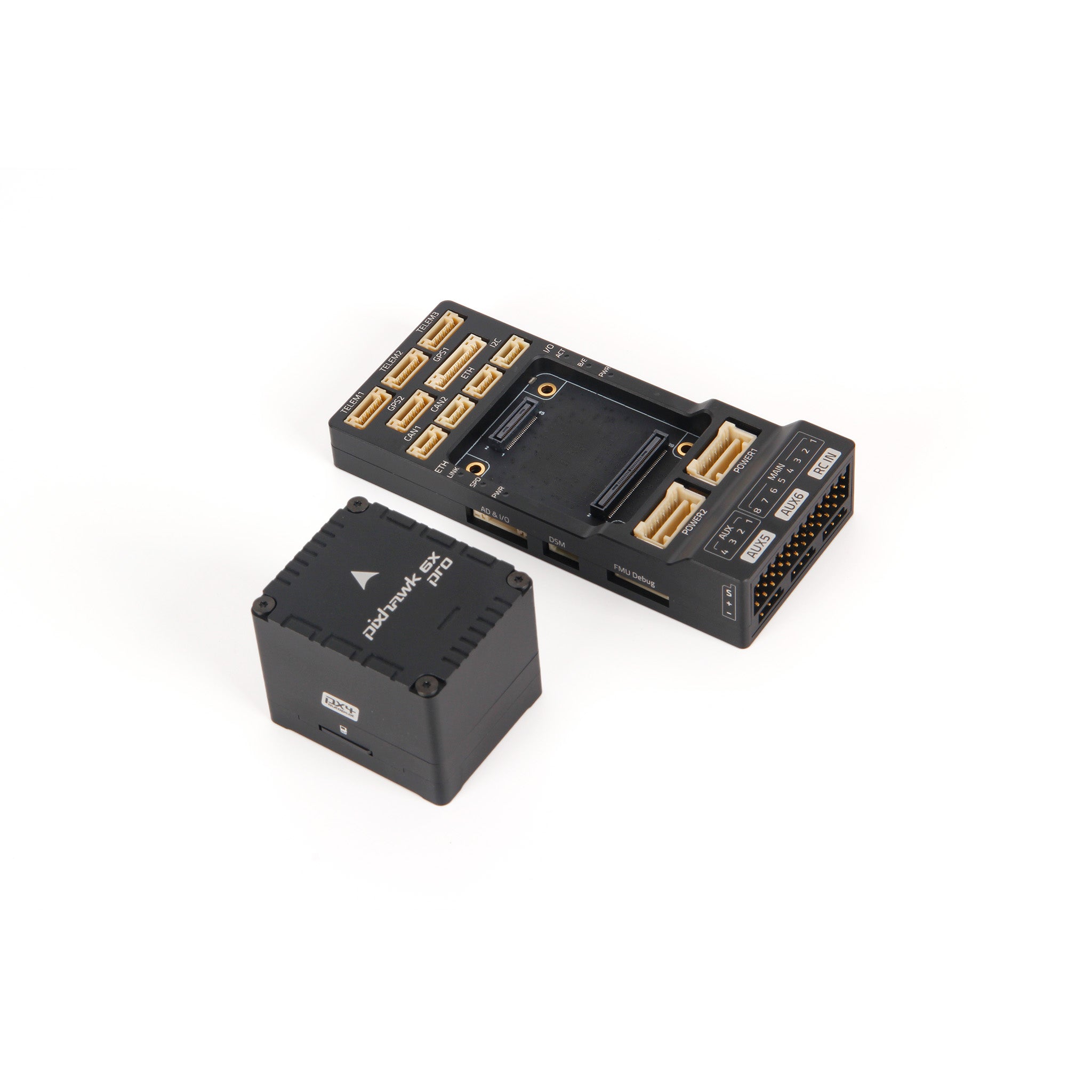

  • FC Module + a baseboard is required for this product to function.  An FC Module or a Baseboard by itself will not function.

Specification

Processors & Sensors

  • FMU Processor: STM32H753
    • 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
  • IO Processor: STM32F103
    • 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
  • On-board sensors
    • Accel/Gyro: ADIS16470
      • ±40g, Vibration Isolated, Industrial IMU
    • Accel/Gyro: IIM-42652
      • ±16g, Vibration Isolated, Industrial IMU
    • Accel/Gyro: ICM-45686 with BalancedGyro™ Technology
      • ±32g, Hard Mounted
    • Barometer: ICP20100
    • Barometer: BMP388
    • Mag: BMM150
  • NXP EdgeLock SE050 Plug & Trust hardware secure element

Electrical data

  • Voltage Ratings:
    • Max input voltage: 6V
    • USB Power Input: 4.75~5.25V
    • Servo Rail Input: 0~36V
  • Current Ratings:
    • Telem1 & GPS2 combined current limit: 1.5A
    • All other ports combined current limit: 1.5A
  • Operating Temperature: -25-85°C

Mechanical data

  • Dimensions
    • Flight Controller Module: 38.8 x 31.8 x 30.1mm
    • Standard Baseboard: 52.4 x 102 x 16.7mm  (Aluminum)
    • Mini Baseboard: 43.4 x 72.8 x 14.2 mm

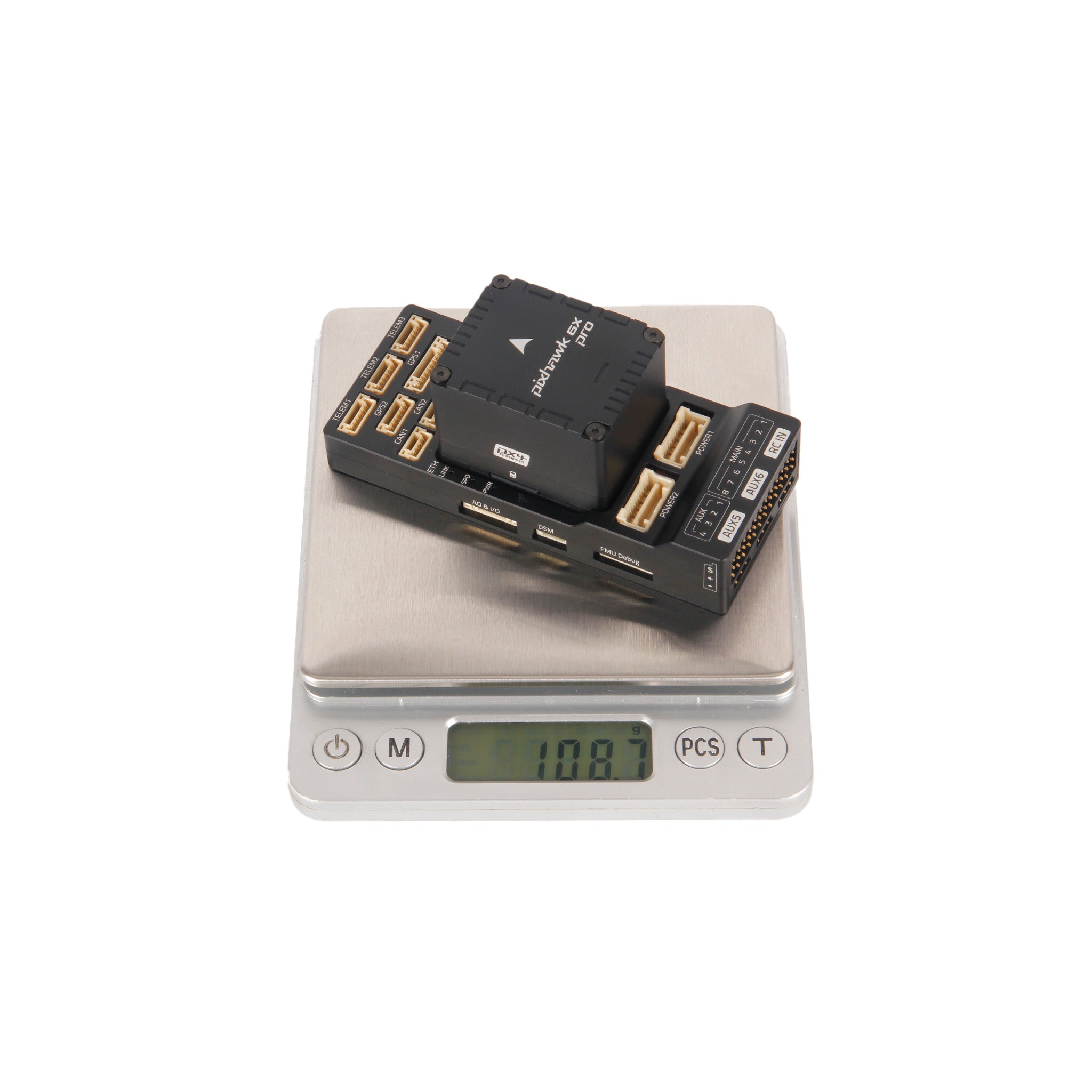

  • Weight
    • Flight Controller Module: 50g
    • Standard Baseboard: 72.5g  (Aluminum)
    • Mini Baseboard: 26.5g

Reference Links:

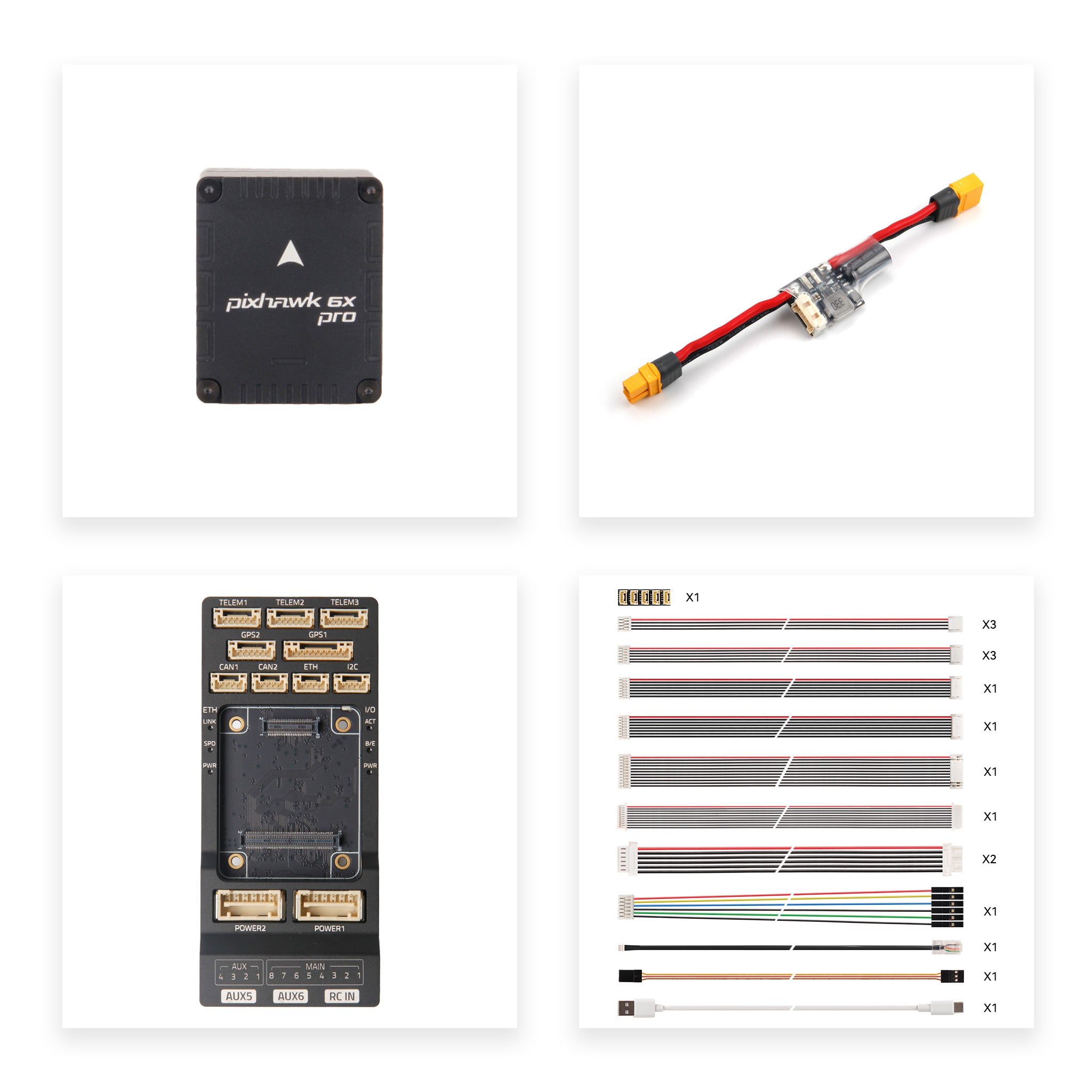

Package Includes

SKU 11070 Includes:

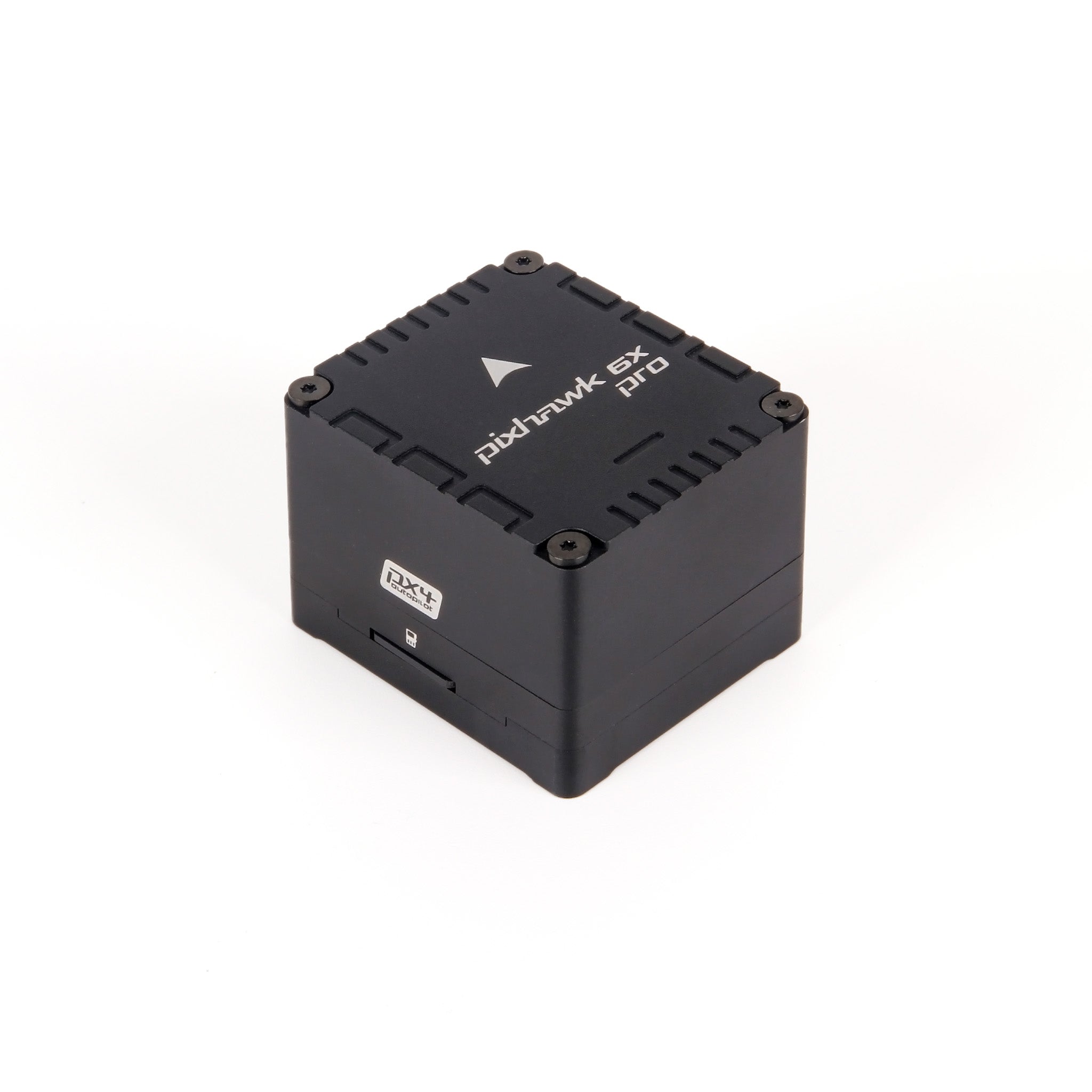

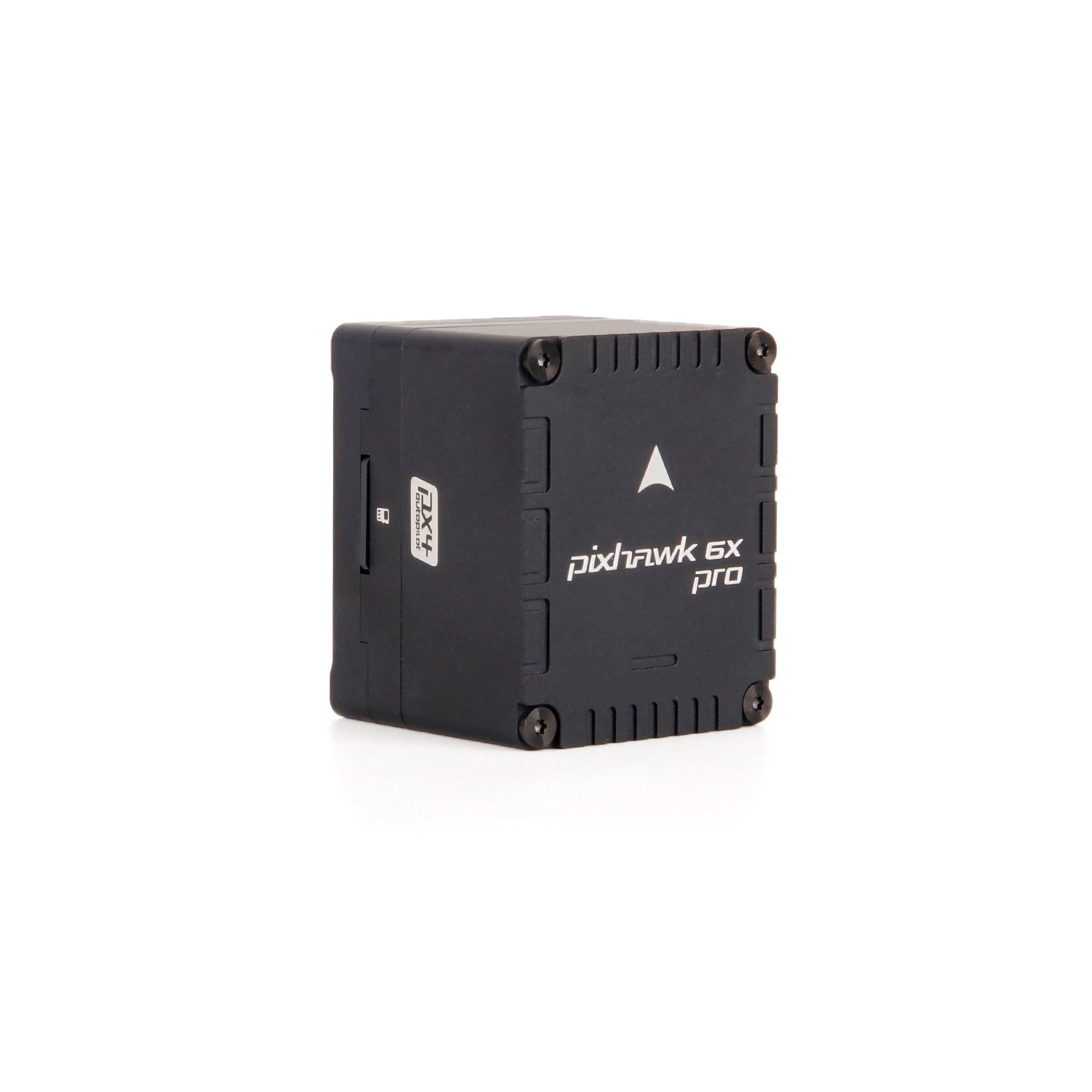

  • Pixhawk 6X Pro Flight Controller Module
  • Optional IMU Damping Replacement (softer than pre-installed)

Controller + Baseboard + Power Module Set Includes:

Accessories:

Pixhawk PWM Cable for Tekko32 4in1 ESC

Standard Baseboard Mounting Plate
