SPECIFICATIONS

Angular Vibration Range: 0.01°

Auto Focus: Yes

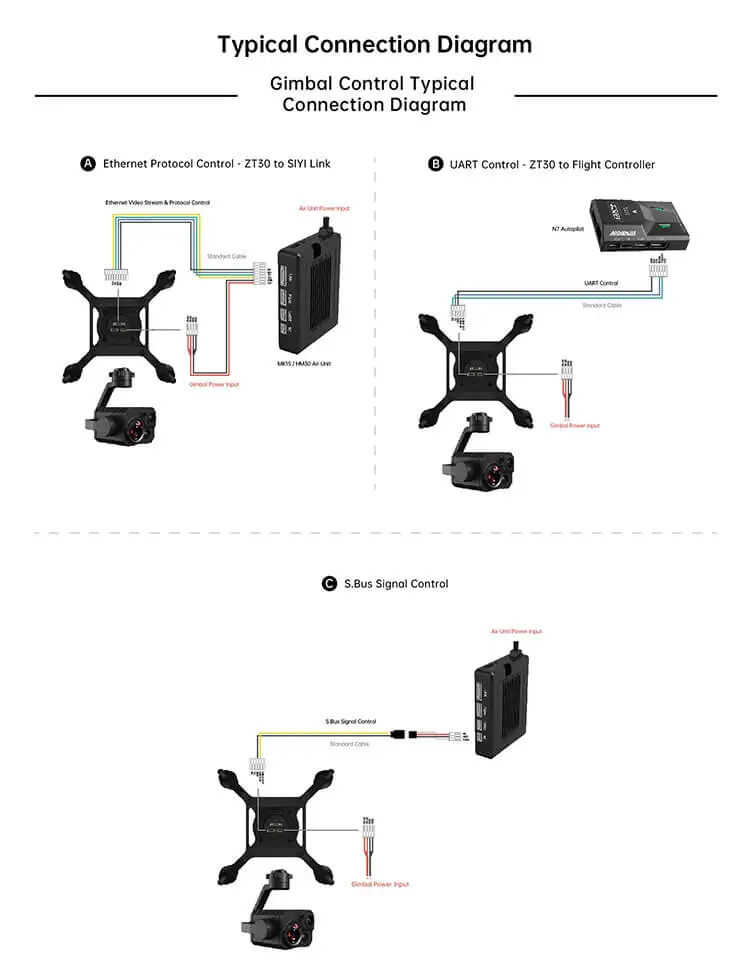

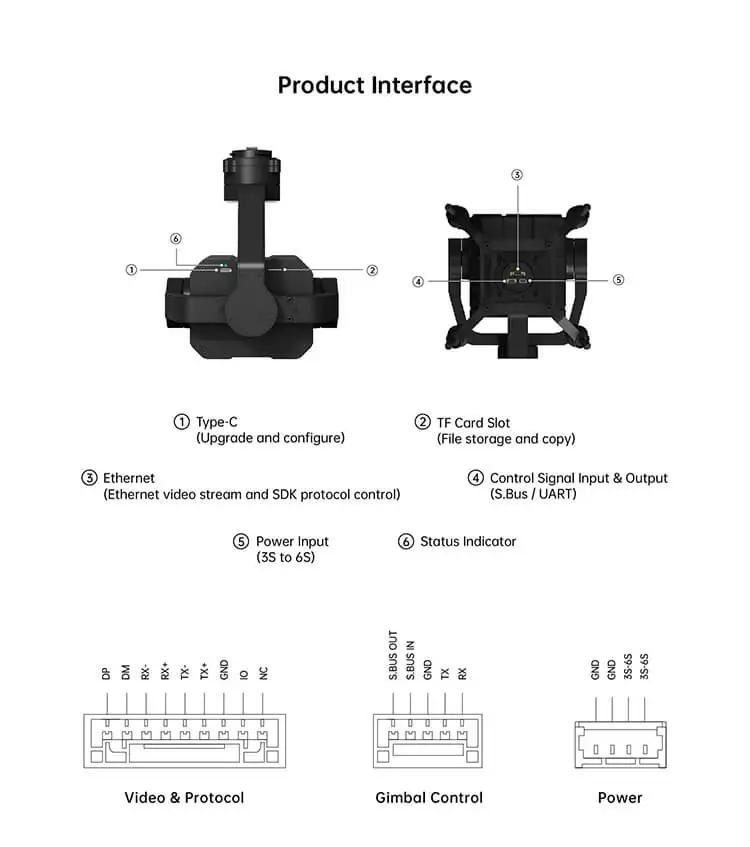

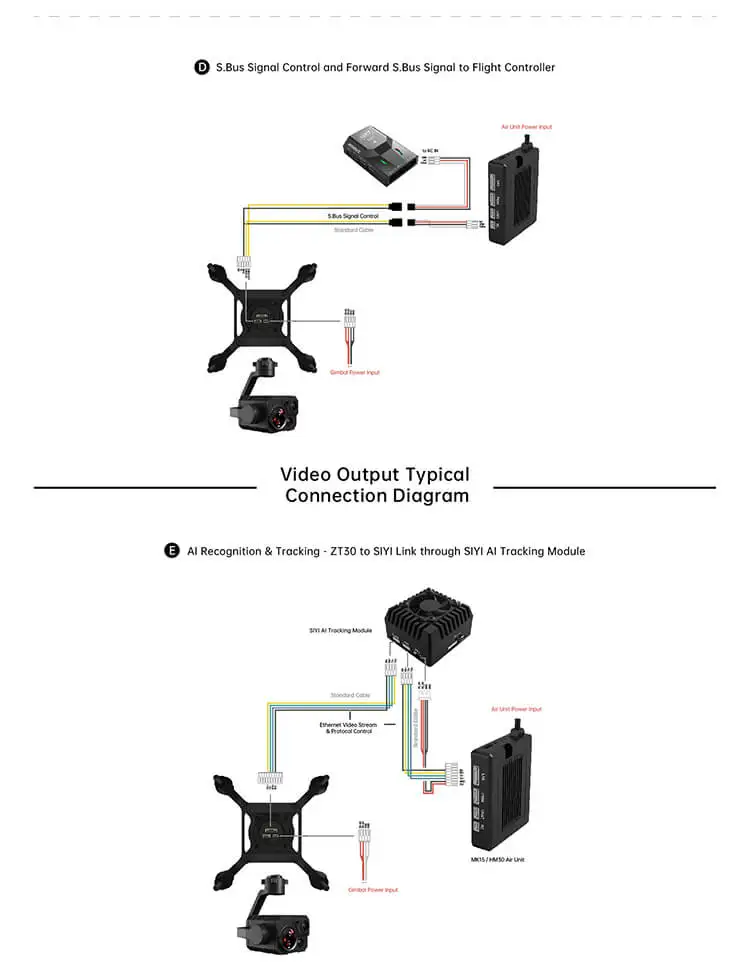

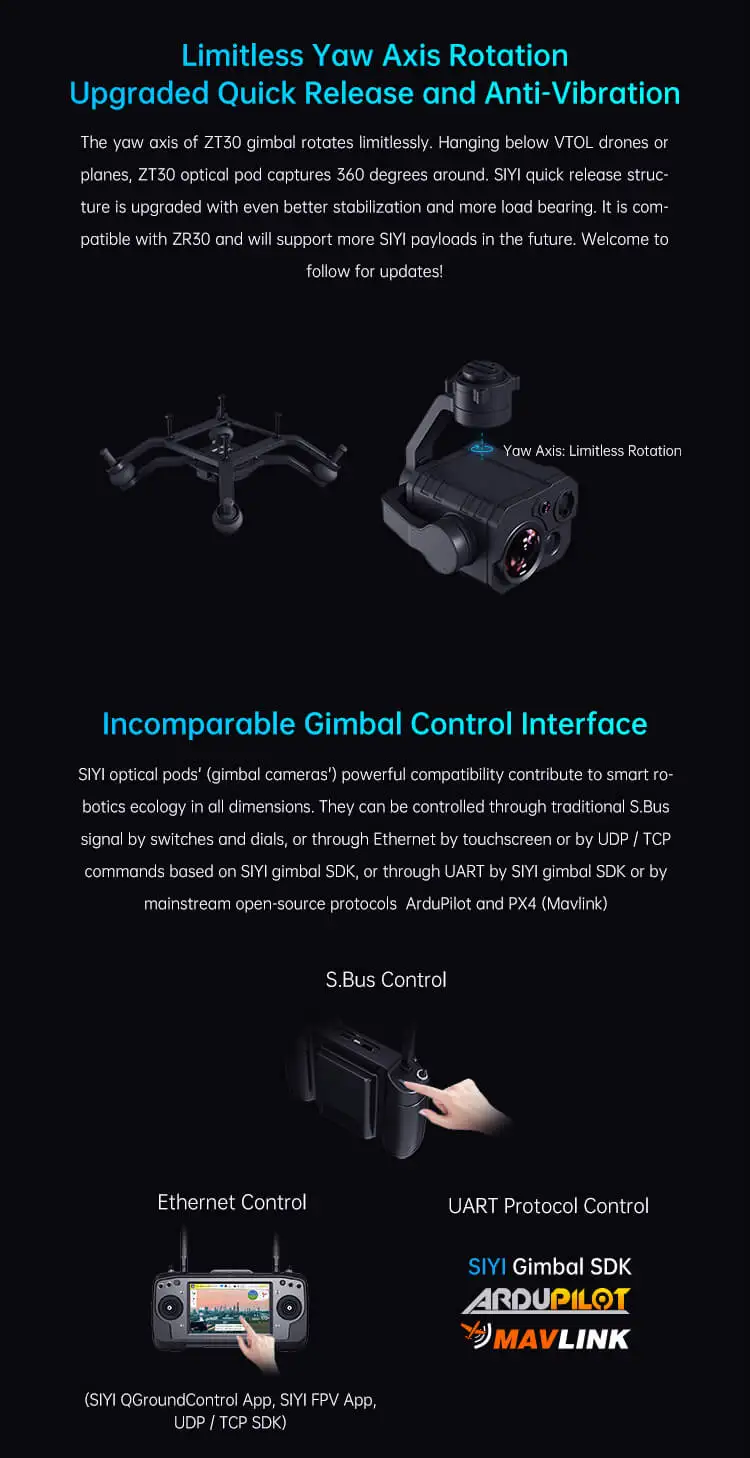

Control Signal Input Port: S.Bus UARTUDP (Ethernet)

Image capture resolution: 4K

Material: Plastic

Product name: Thermal Imaging Optical Zoom Gimbal Camera

Weight: 870g

Working Temperature: -10 ~ 50 °C

Working Voltage: 11 ~ 25.2 V

brand name: SIYI

compatible brand: Autel

place of origin: China,Henan China

private mold: No

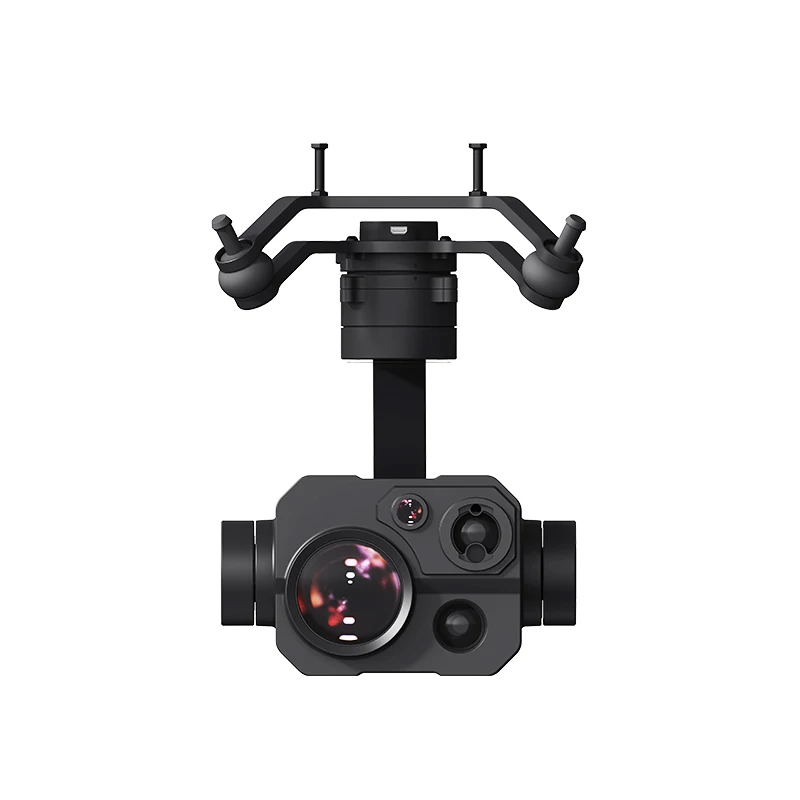

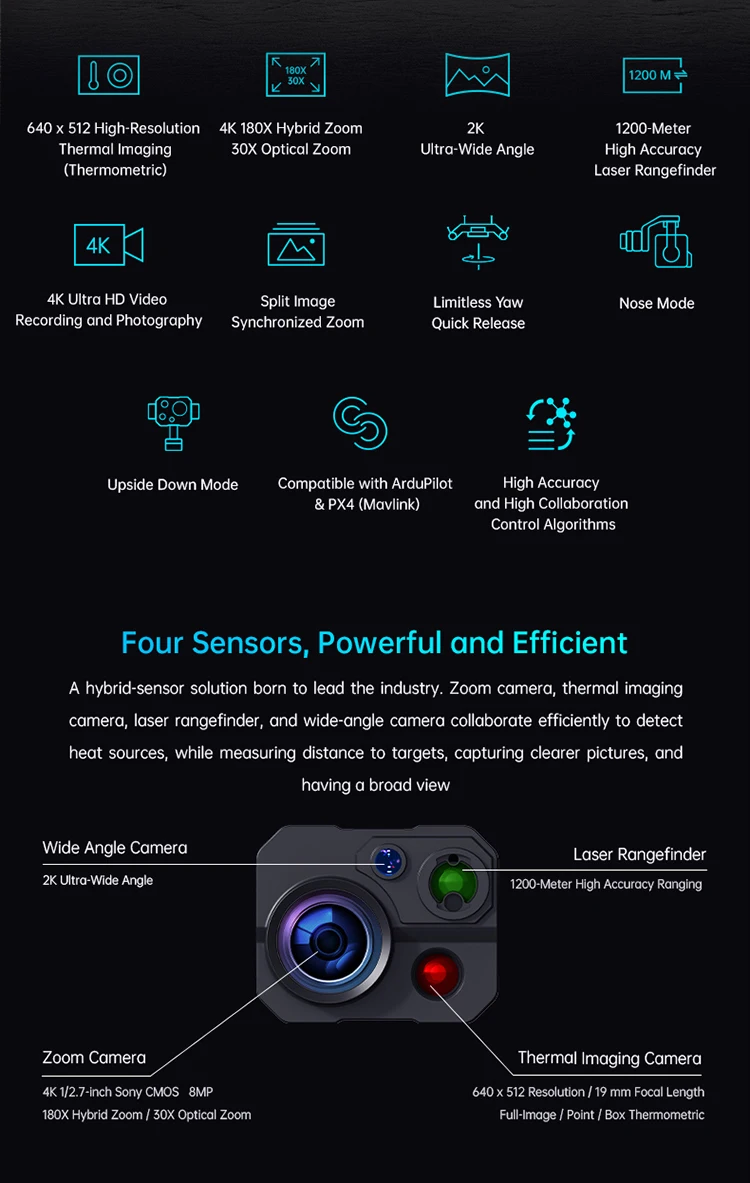

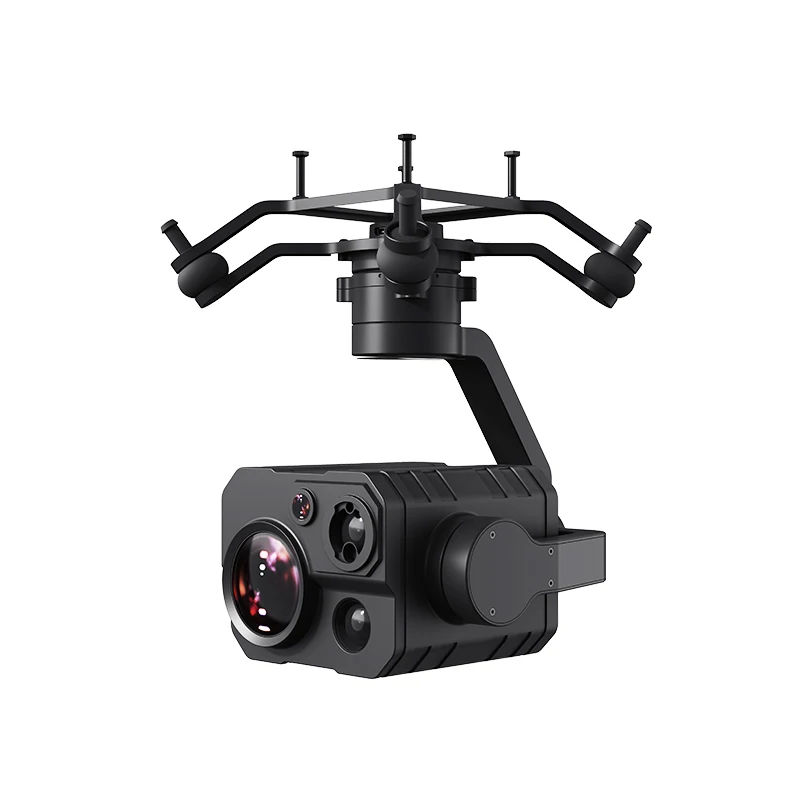

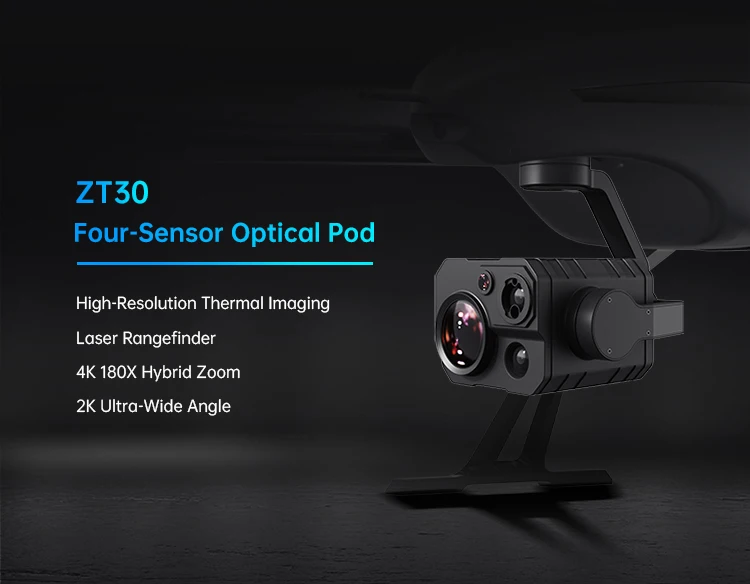

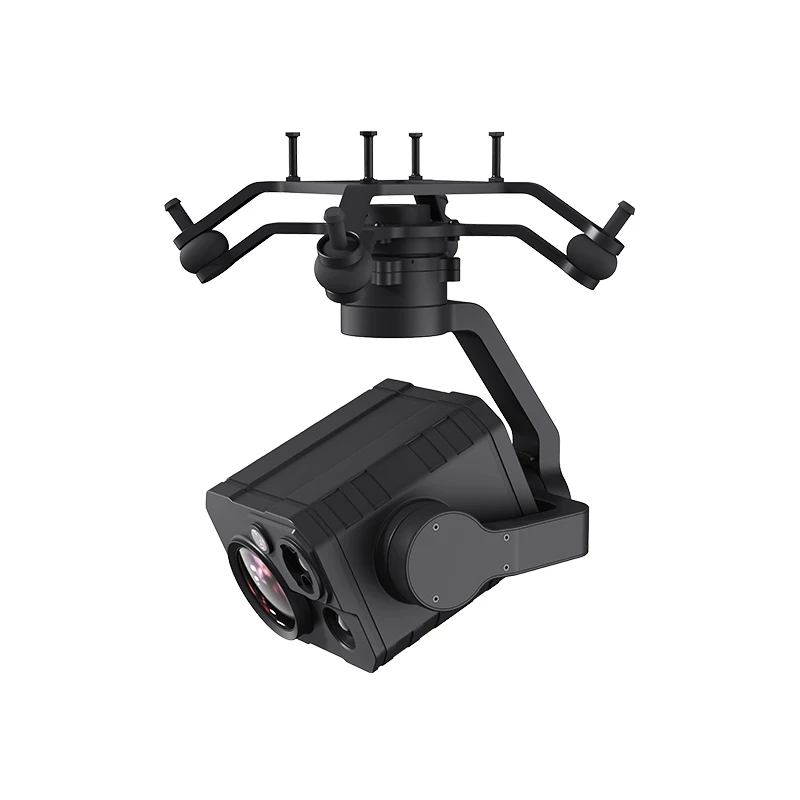

SIYI ZT30 4K AI Gimbal Camera 180X Hybrid Optical Zoom 4 Sensors Thermal Imaging Laser Rangefinder with Starlight Night Vision

Model: ZT30-D
Compatible Donres: DJI Matrice 350 / 300 RTK
High-Accuracy 3-Axis Stabilization: Yaw, Pitch, Roll
Waterproof Level: IP4X
Working Temperature: -10 ~ 50 °C
Dimension: 139*134*169 mm
Weight: 776 g

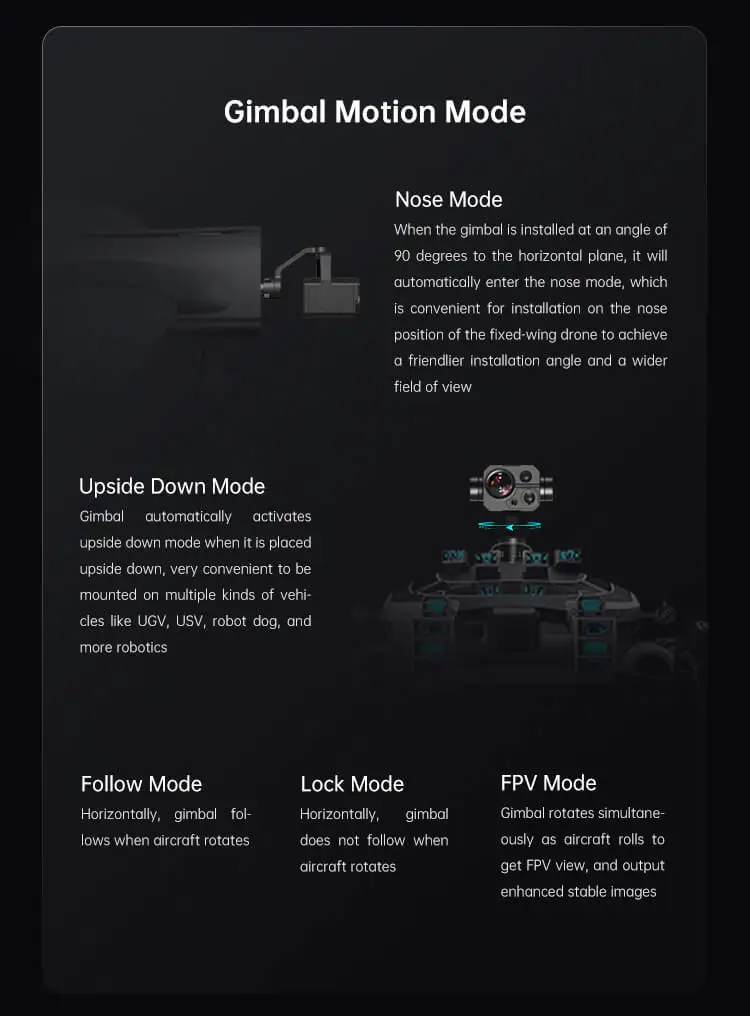

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to 25°
Controllable Yaw Angle: Limitless
Roll Angle: -45° to 45°

Zoom Camera
Lens: 30X Optical Zoom (180X Hybrid Zoom)
Focal Length: 4.8% to 149 mm (±5%)
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
Aperture: F1.3 to F4.8 (±5%)
FOV: Horizontal 62°
Video Recording Resolution:
– 4K (4096 x 2160) @ 30 fps
– 2K (2560 x 1440) @ 30 fps
– 1080p (1920 x 1080) @ 30 fps
– 720p (1280 x 720) @ 30 fps
Still Photo Resolution: 4K (4096 x 2160)

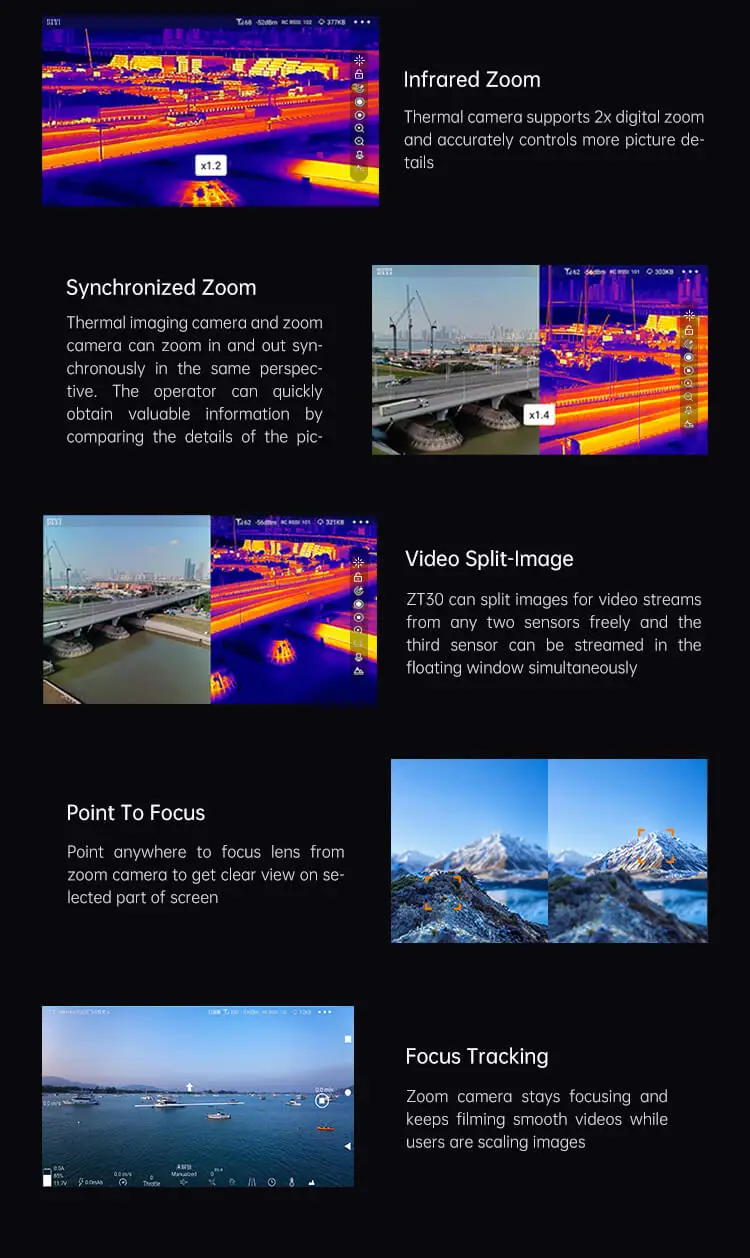

Thermal Imaging Camera
Thermal Sensor: Uncooled VOx Microbolometer
Resolution: 640 x 512
Digital Zoom: 2X
Lens
– Focal Length: 19 mm
– Aperture: F1.1
– Fixed Focus
– Athermalization
Wavelength Range: 8 ~ 14 um
Temperature Measuring Range
– High Gain: -20 ~ 150 °C
– Low Gain: 0 ~ 550 °C
Temperature Measuring Accuracy
– ±2°C (-20 ~ 150 °C)
– ±3°C (0 ~ 550 °C )

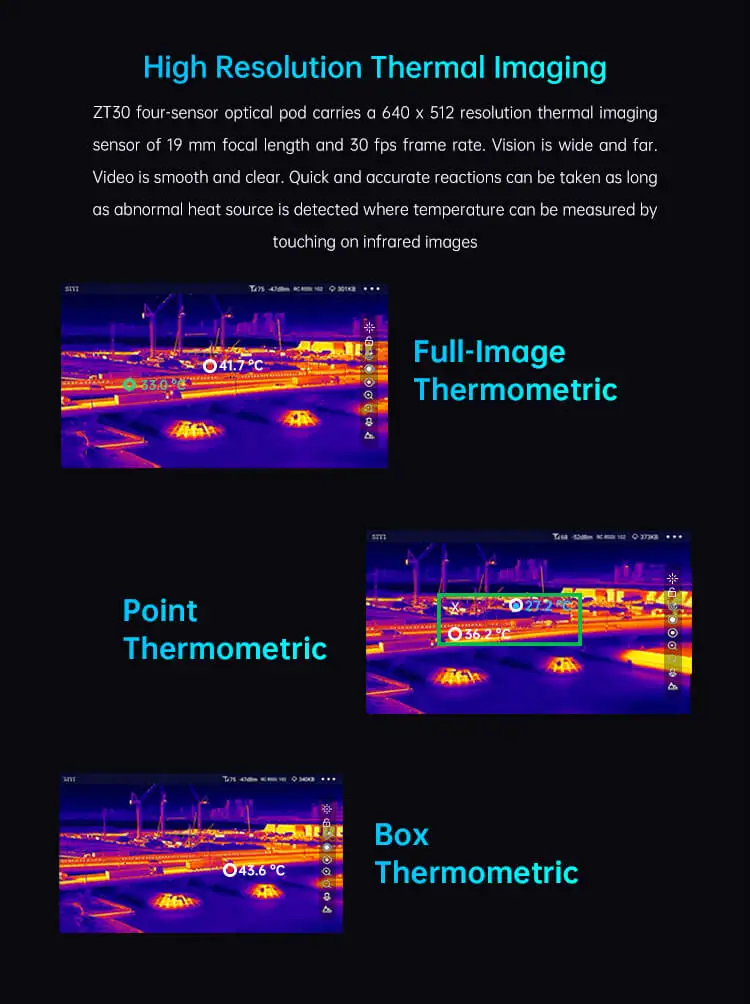

Temperature Measuring Mode
– Point to Measurement
– Full Screen Measurement
Wide Angle Camera
Image Sensor: 1/2.8 Inch, 4 MP effective resoultion
Equivalent Focal Length: 21 mm
FOV: Horizontal 88°
Video Recording Resolution: 2K (2560 x 1440) @ 30 fps
Still Photo Resolution: 2K (2560 x 1440)

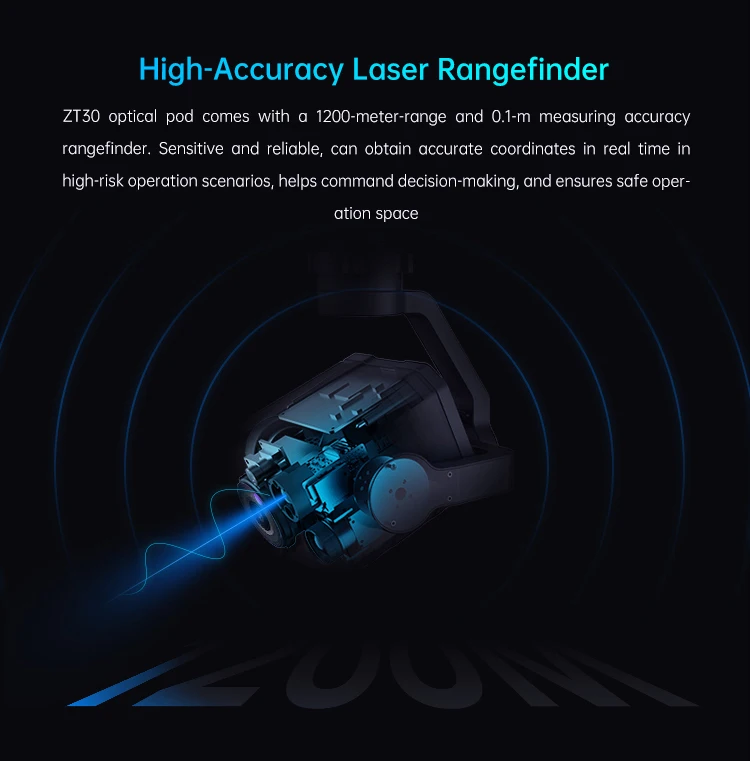

Range Finder
Range: 5 ~ 1200 m
Wavelength Range: 900 ~ 908 nm
Resolution: 0.1 m
Ranging Accuracy:
– ±1 m (3 ~ 100 m )
– ±1 L*0.25% m , L=Length (100 ~ 600 m)
Laser Pulse Frequency: 3 Hz
Max Laser Power: 5 mW

General Camera Specs
Video Storage Bitrate: 15 Mbps (H.265 codec)

File Storage Format: FAT32
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
