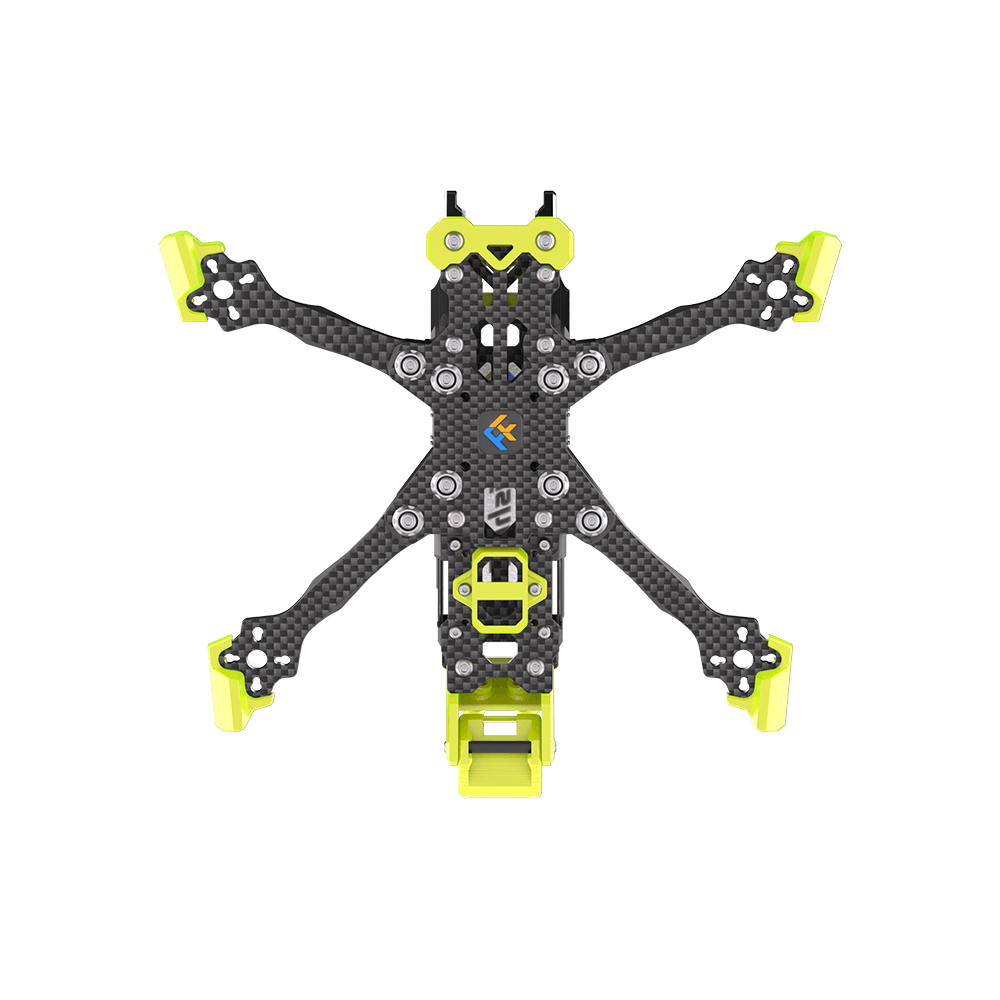

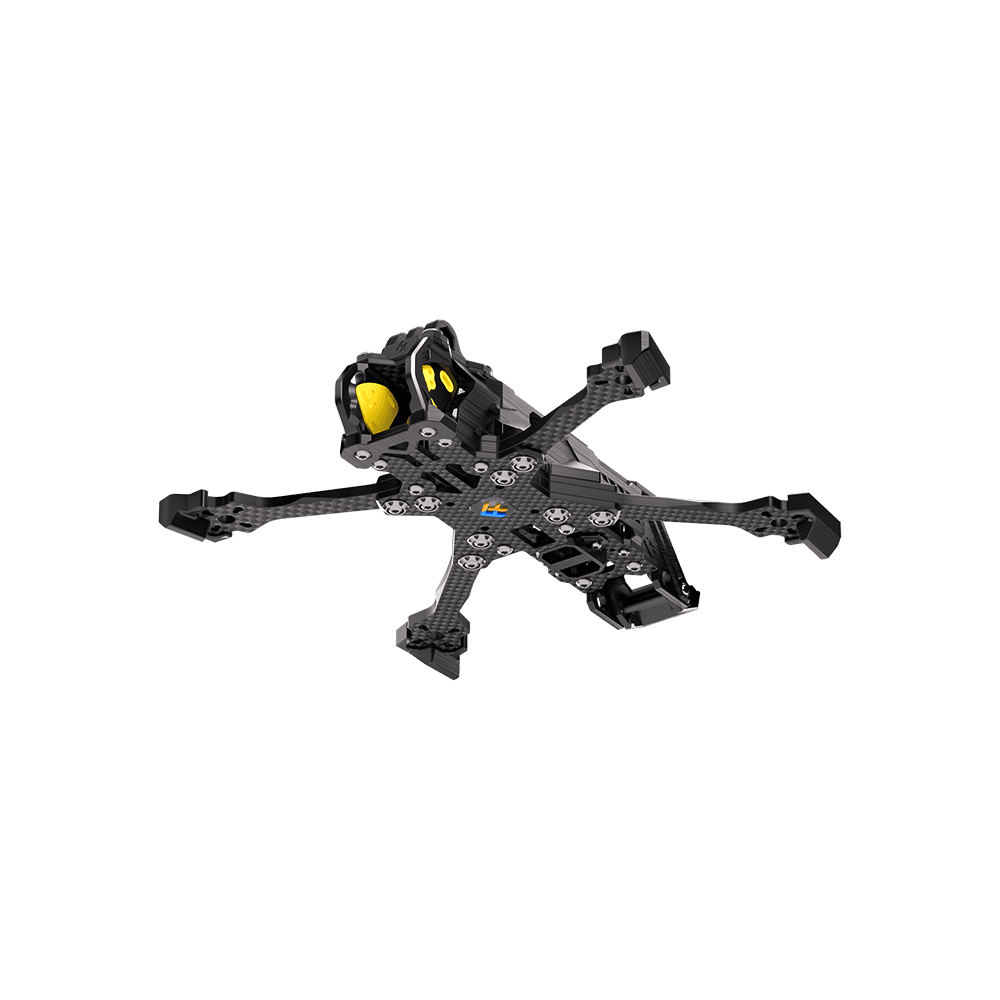

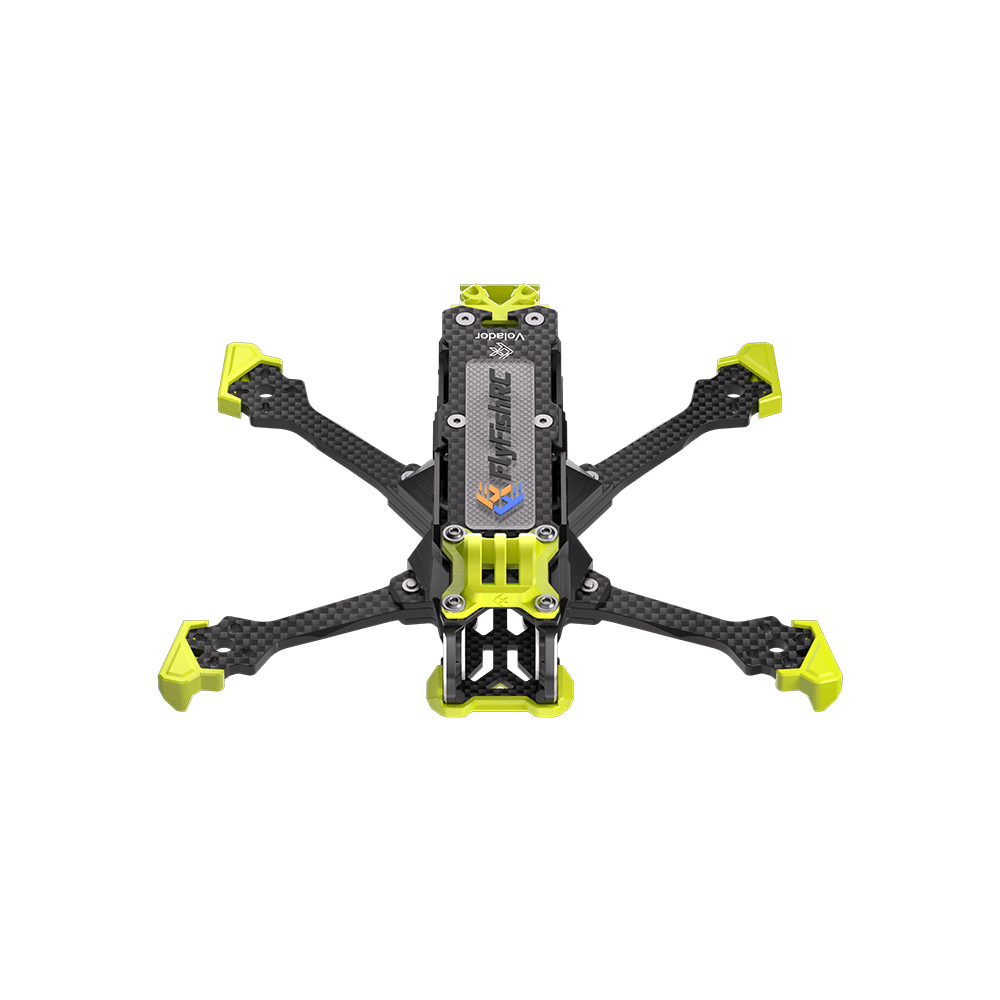

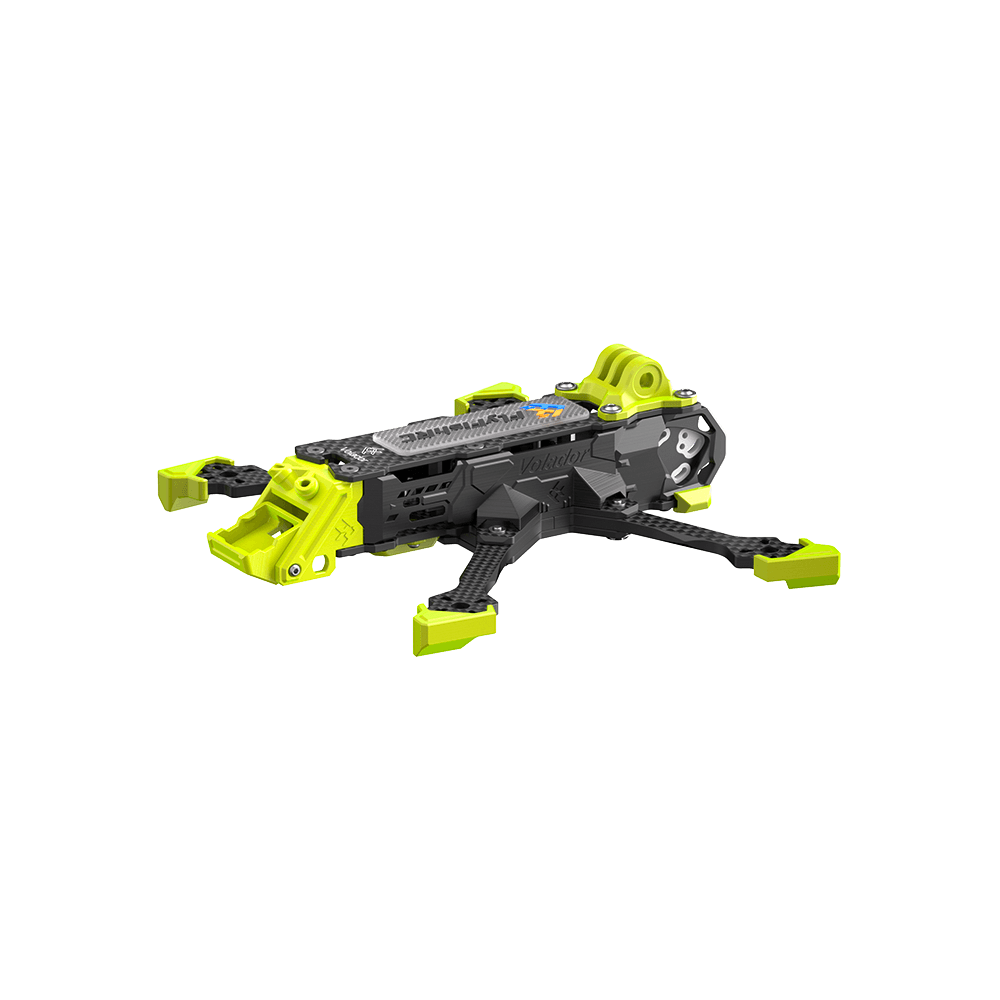

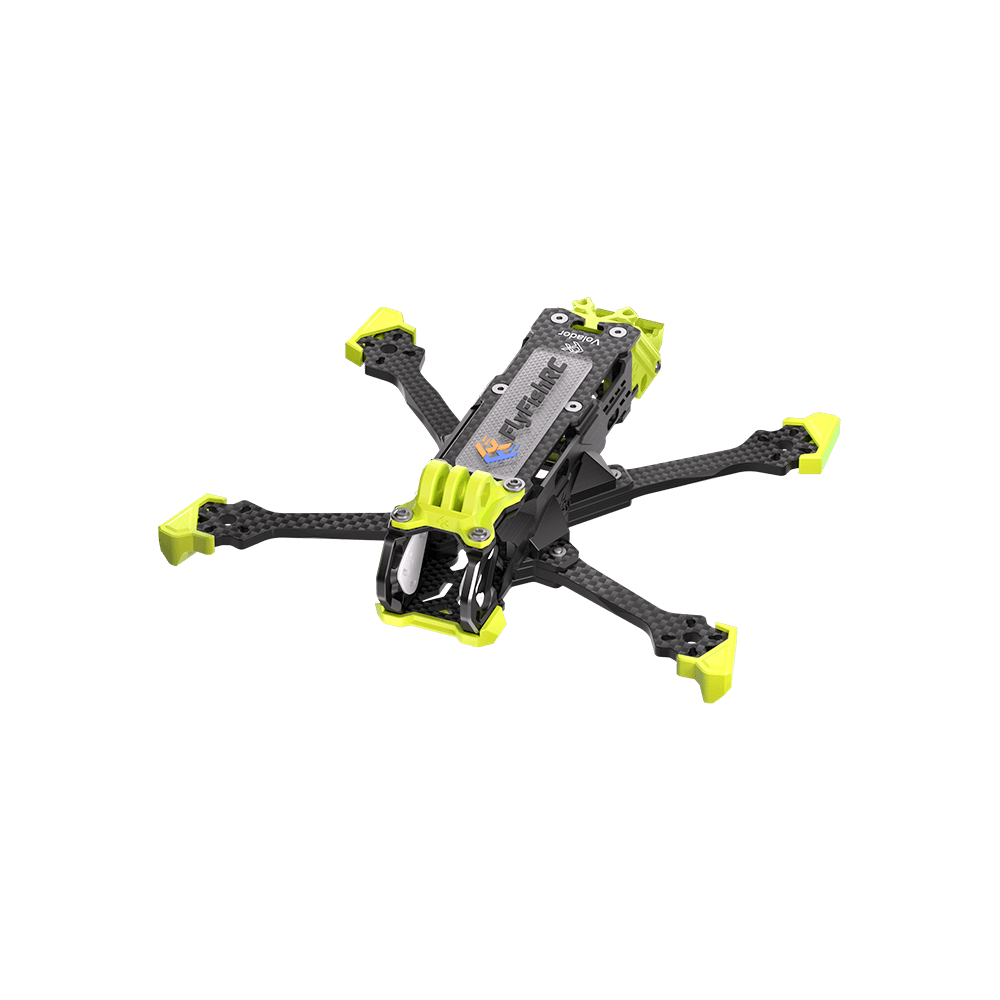

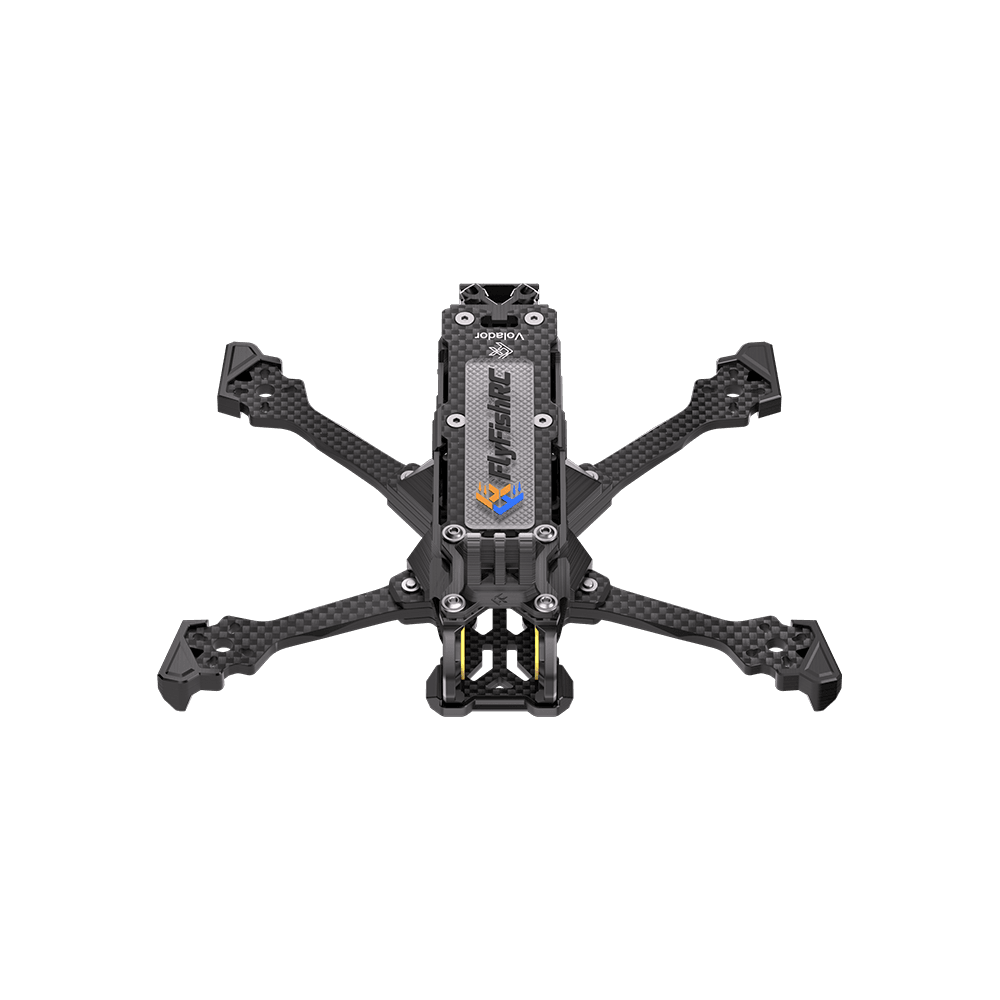

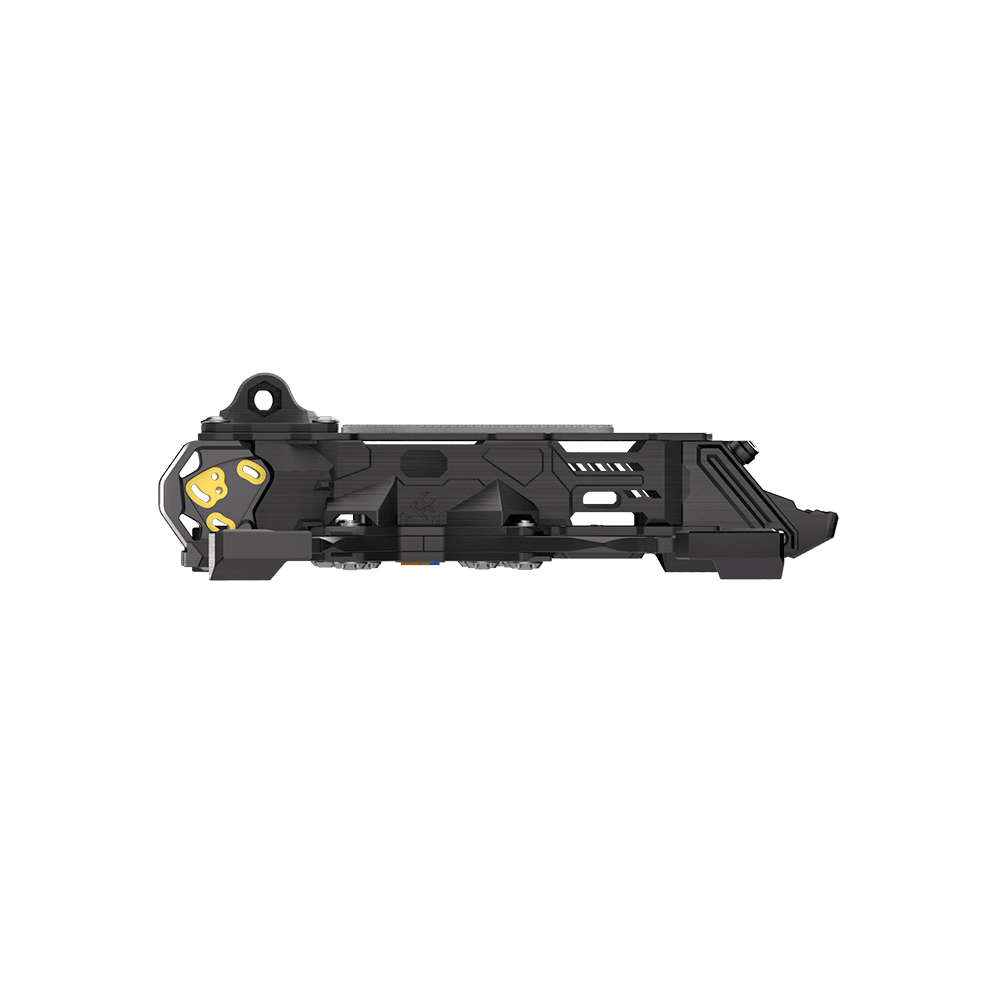

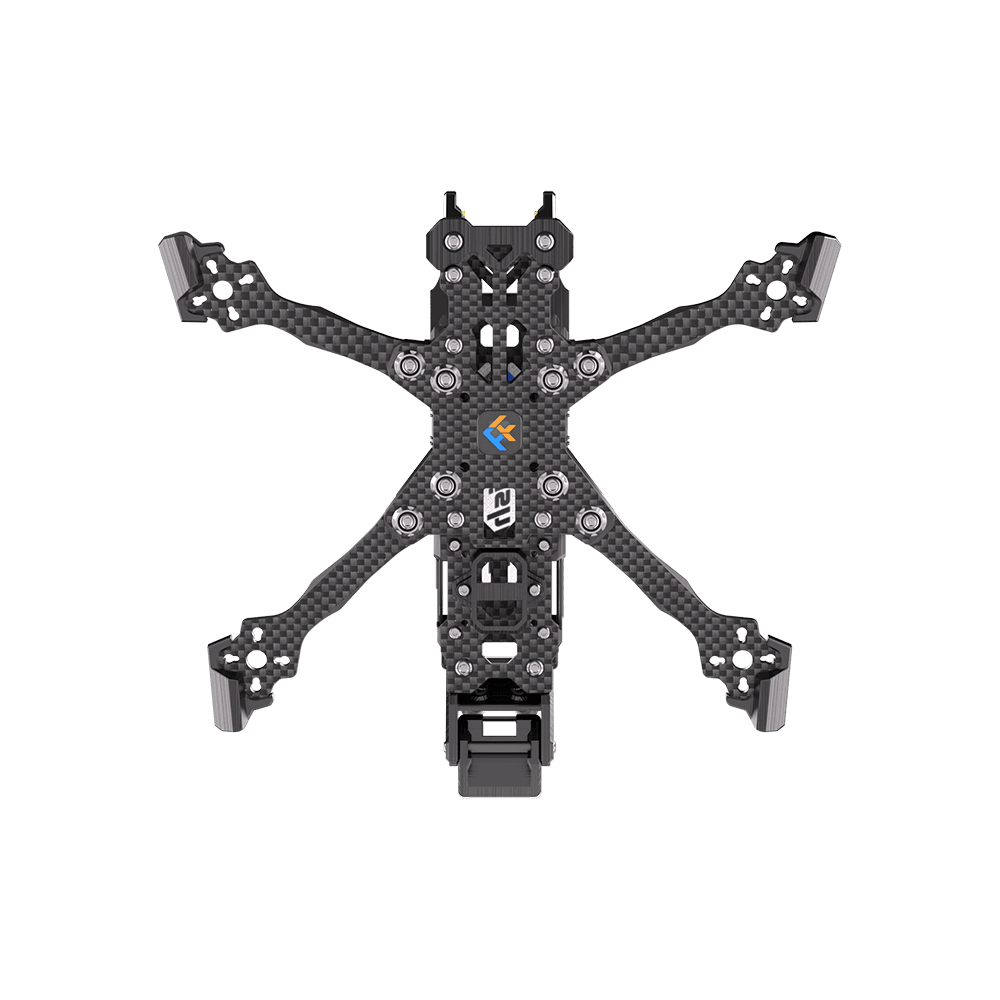

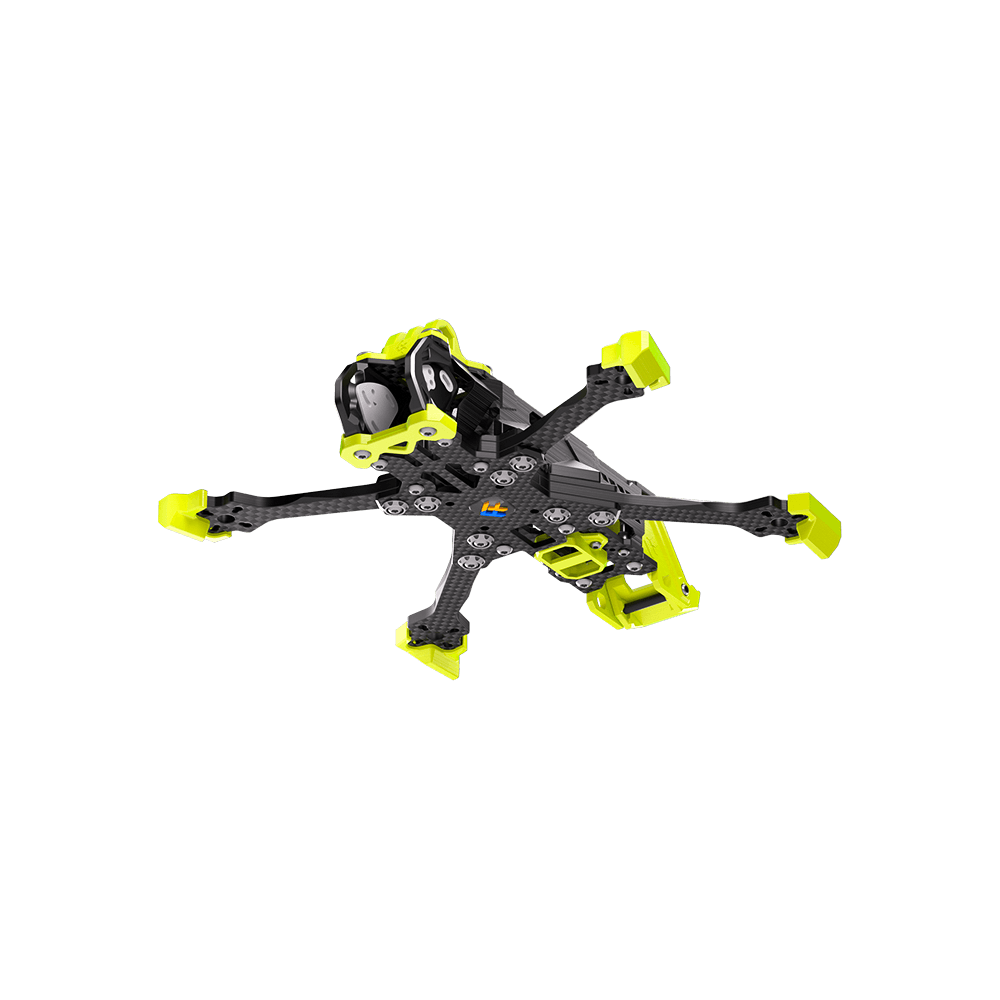

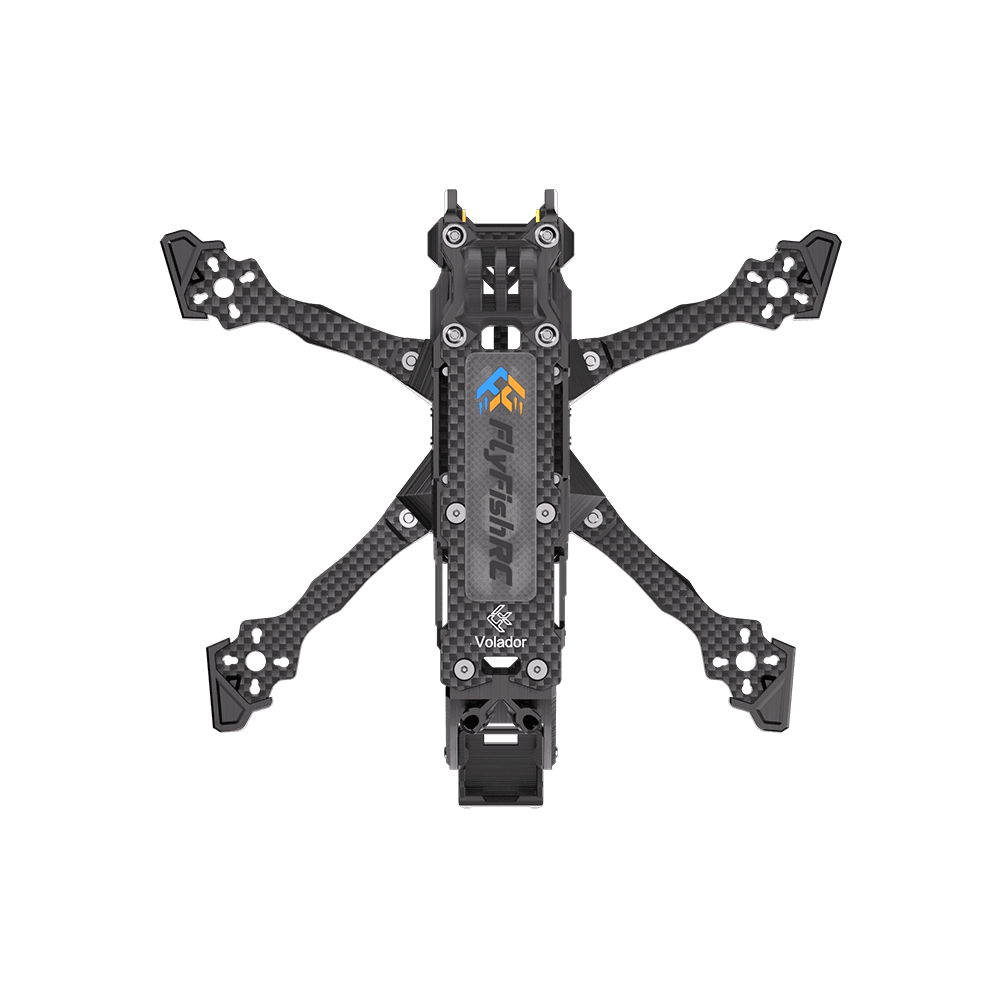

Volador VD4 O4 Pro Deadcat FPV T700 Frame Kit

Description

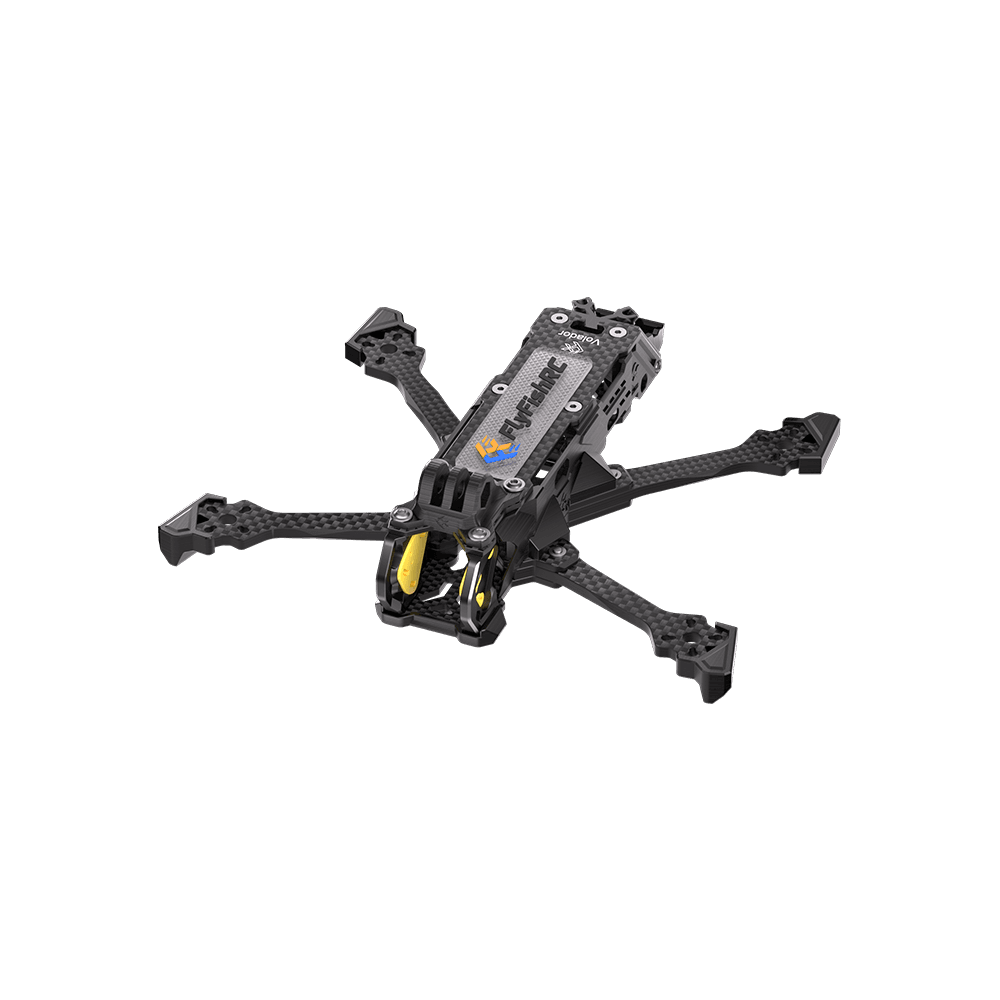

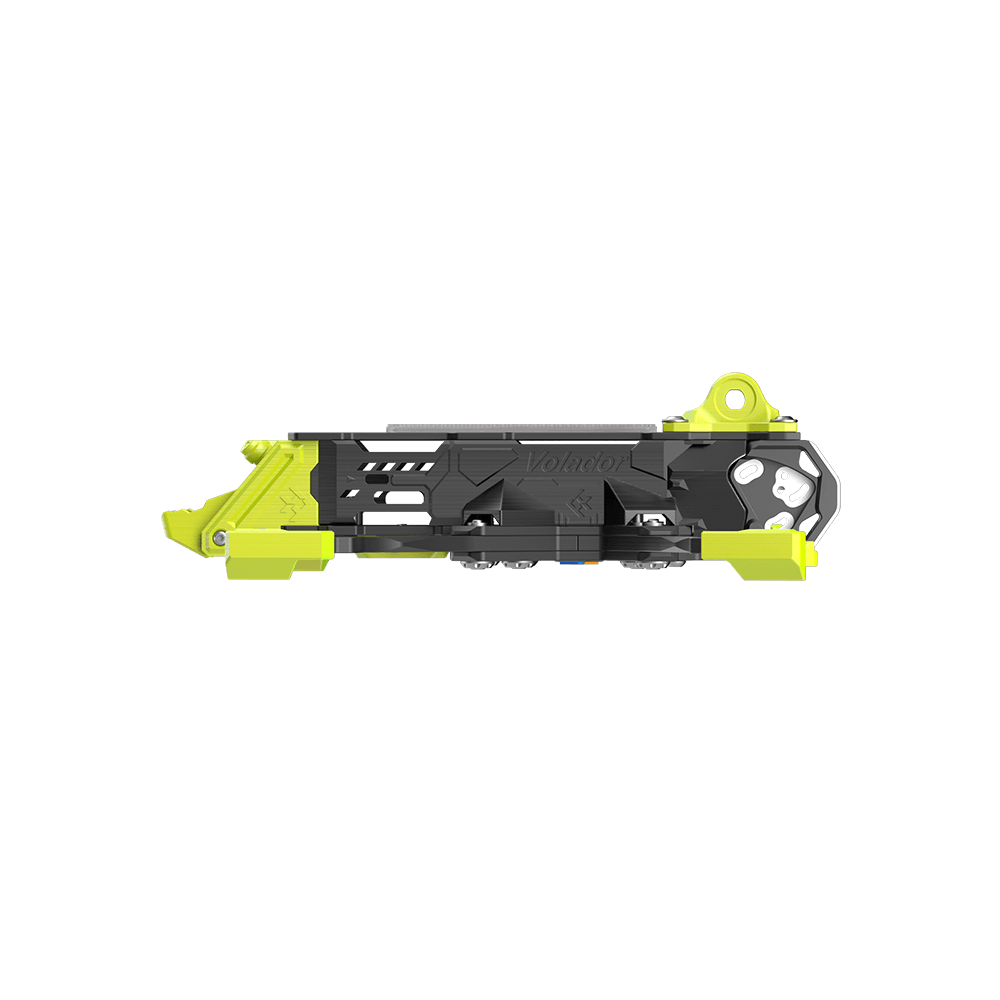

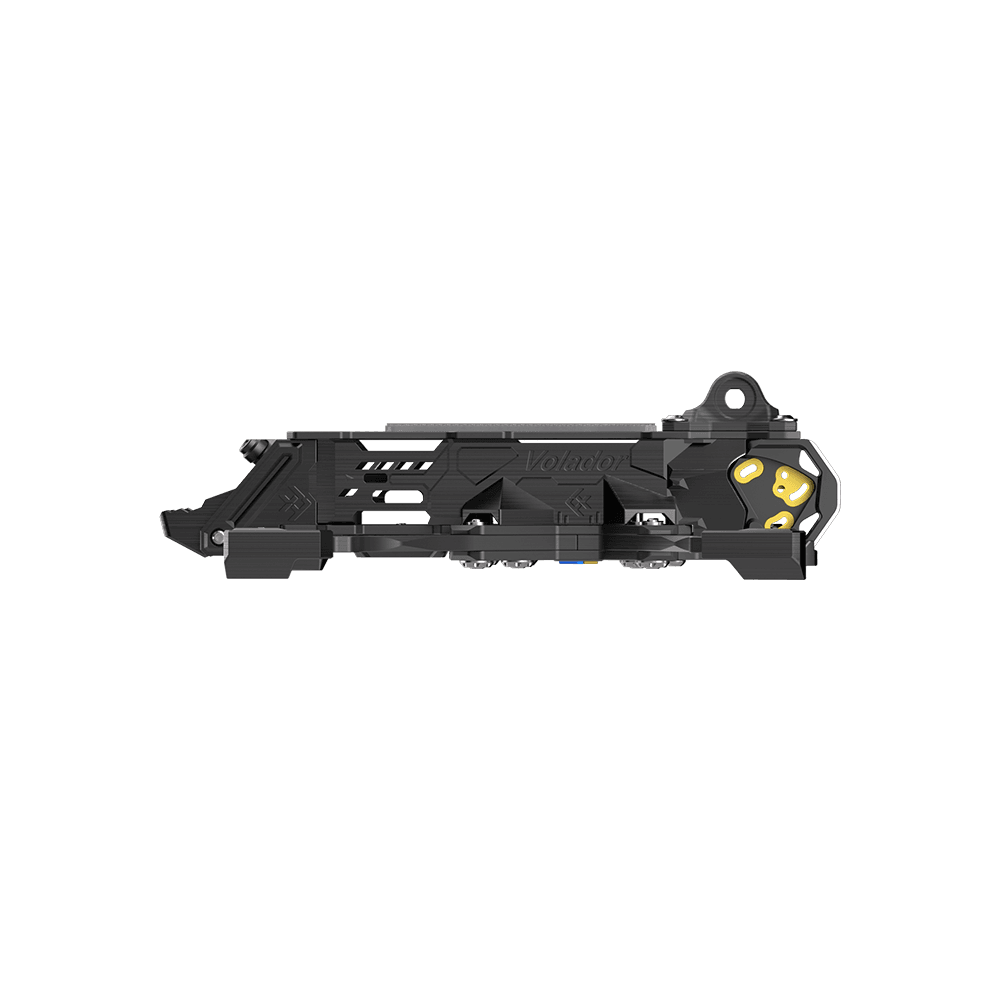

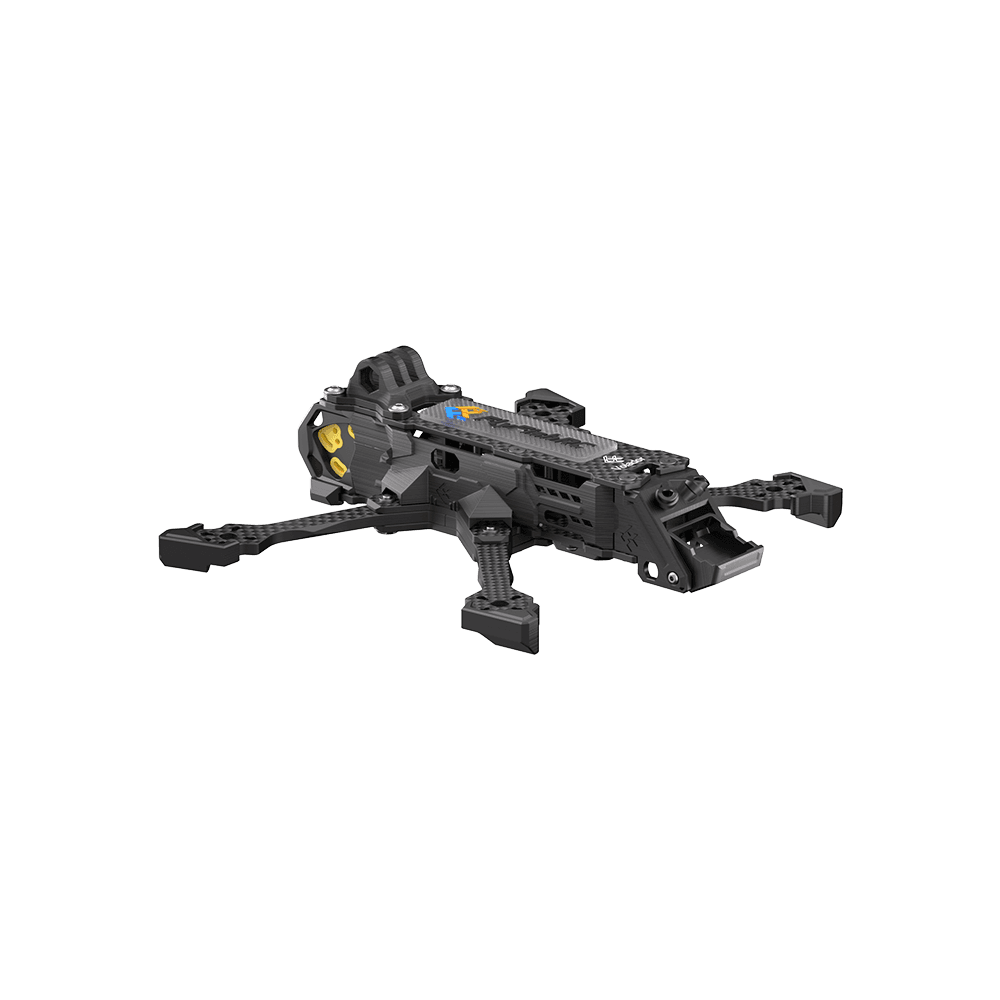

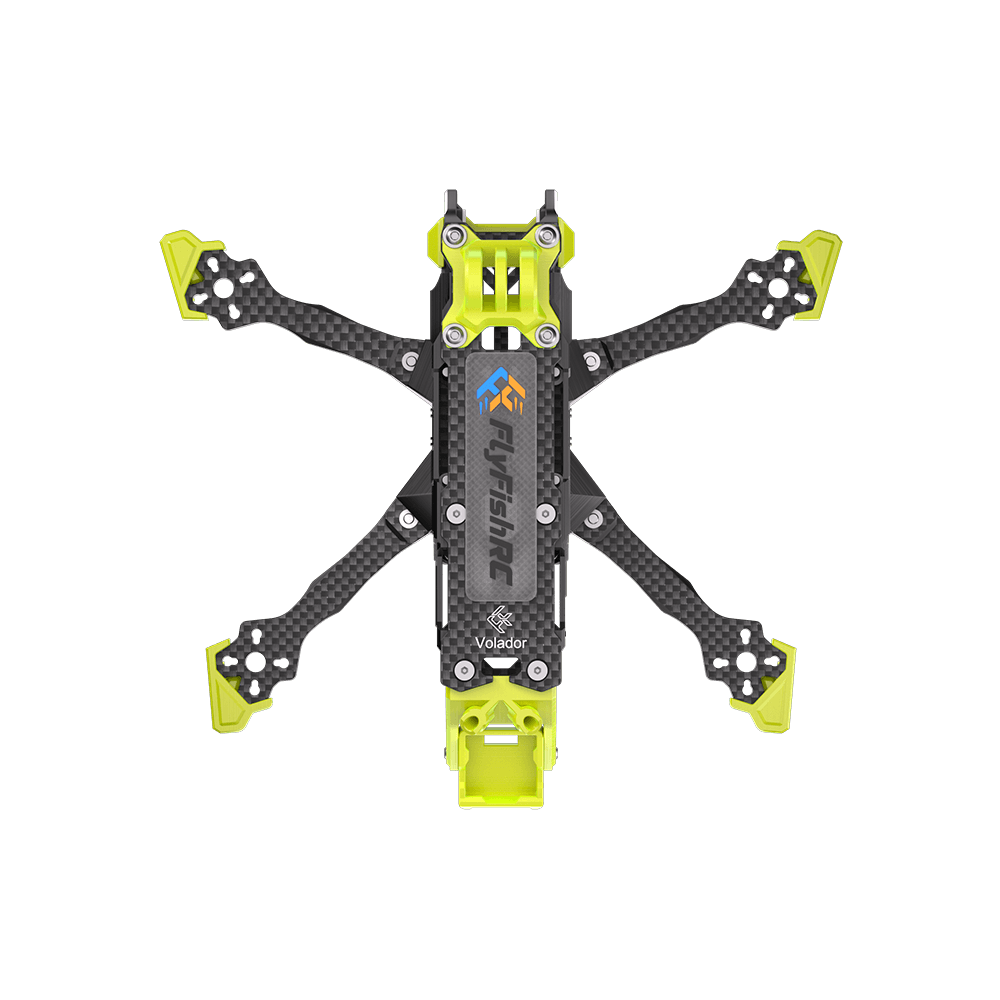

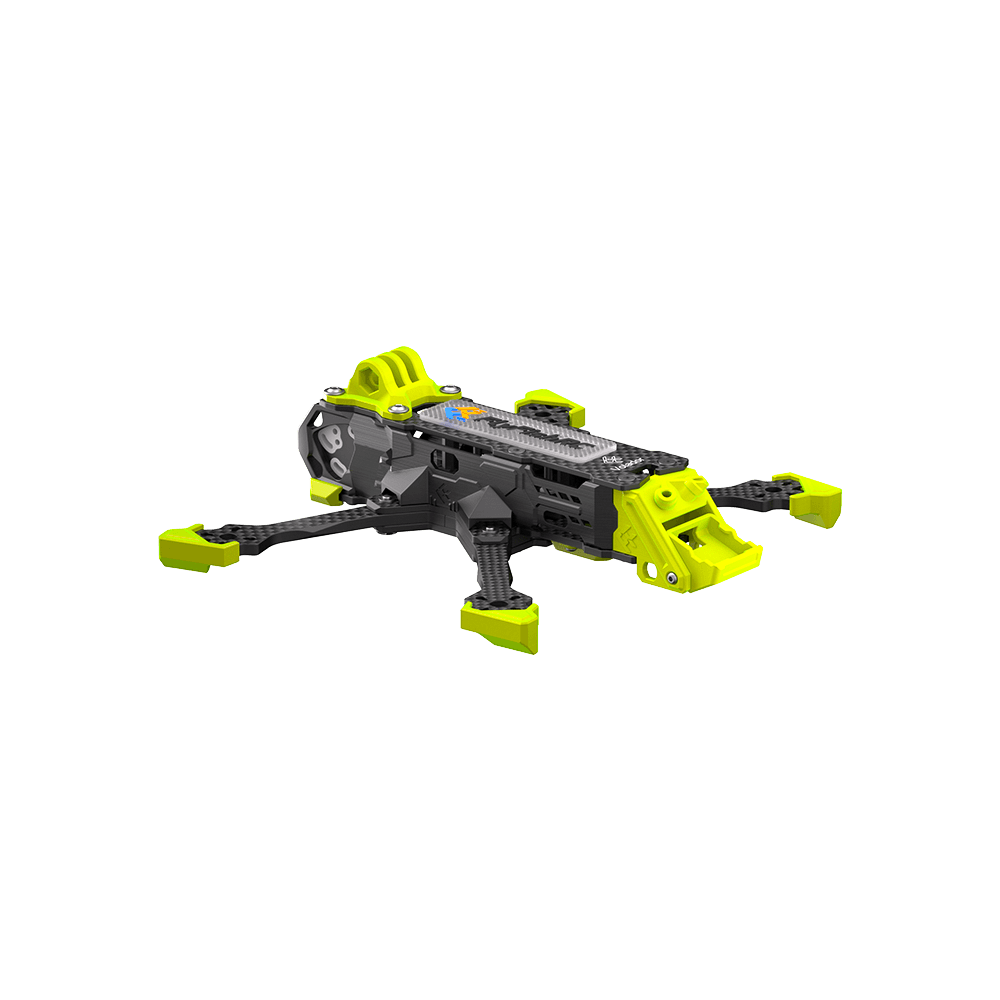

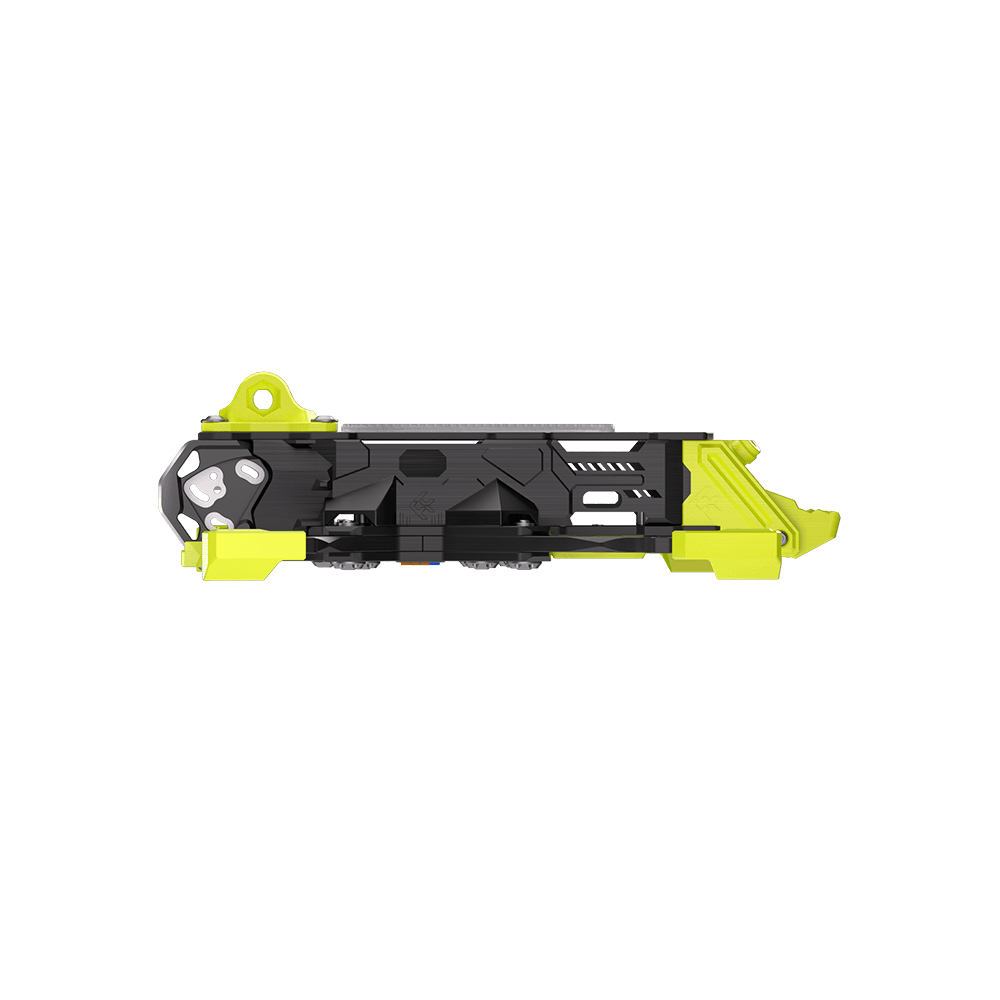

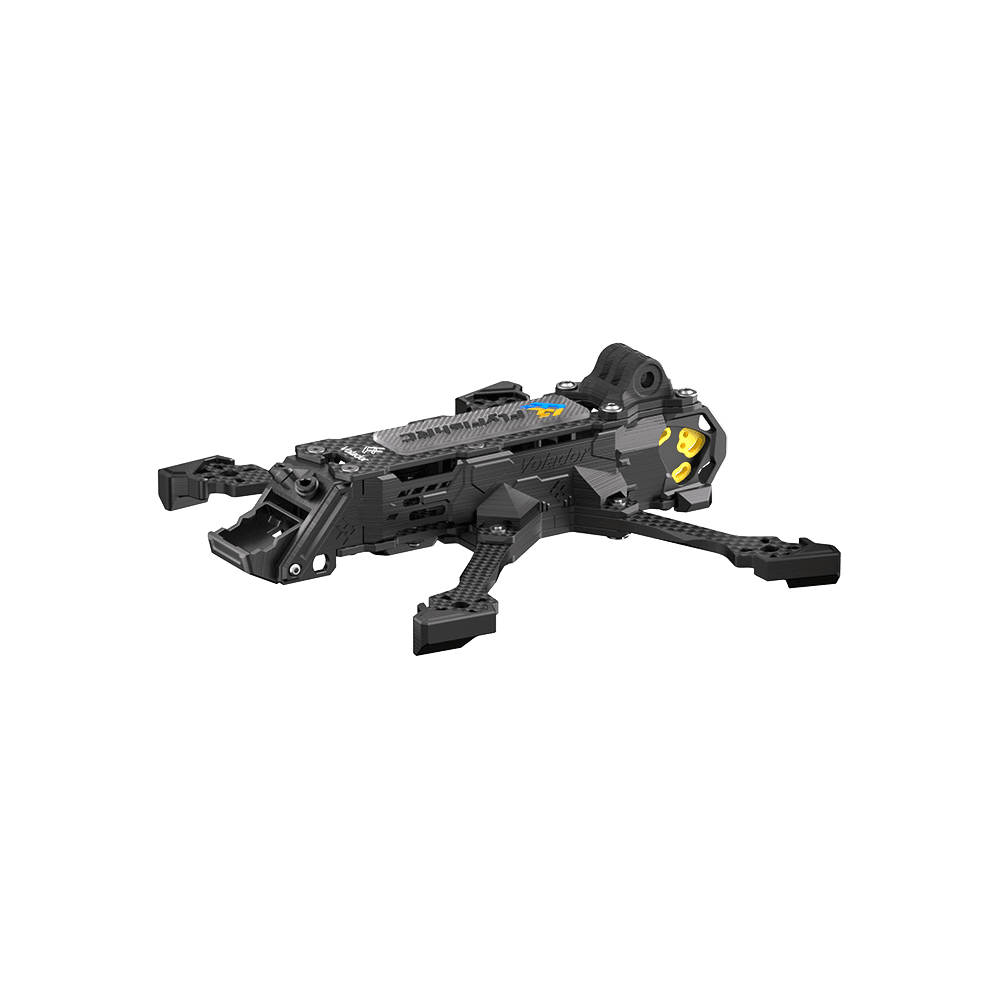

The all-new Flying Fish Volador VD4, weighing 127g, features a DC layout, providing unobstructed flight view without propellers in view. The newly designed CNC side plates paired with a silicone-damped camera mount perfectly match the O4 VTX, completely eliminating jello effect and delivering a smooth FPV experience.

Key Highlights

Strong, Light, Stable, Simple Assembly

The main structure combines T700 carbon fiber with high-strength CNC aluminum alloy. Each edge is precision chamfered, achieving slight weight reduction while protecting cables for a premium, integrated finish. Innovative locking mechanisms physically suppress frame resonance, complemented by custom high-quality TPU components for more robustness and stability.

Versatile Compatibility, Efficient Damping

Dual mounting positions for the stack, VTX, and motors provide more flexibility, easily accommodating various ESCs, FCs and most analog and HD VTX systems on the market. Includes all necessary accessories for both analog and HD builds. Specially designed silicone damping pads for the VTX camera effectively eliminate DVR jello effect.

Get yours now and explore with FlyFishRC!

Specifications:

Arm Thickness: 4mm

Top Plate Thickness: 2mm

Middle Plate Thickness: 2.5mm

Bottom Plate Thickness: 2.5mm

Brace Thickness: 4mm

CNC Side Plate Thickness: 5mm

Propeller Size: 4 inch

Material: T700 Carbon Fiber

FPV Camera Spacing: 19mm/20mm

Weight: Approx. 127g (including printed parts)

Color: Black/Yellow

Frame Dimensions: 195*155*33mm

Wheelbase: 183mm

Flight Stack Mounting Holes: 20*20mm (M3) / 30.5*30.5mm (M3)

Flight Stack Mounting Height: 22mm

VTX Mounting Holes: 20*20mm (M2) / 25.5*25.5mm (M2)

Motor Mounting Holes: 12*12mm (φ2mm) / 16×16mm (φ3mm)

Includes:

1x Volador VD4 O4 Pro Frame Kit
