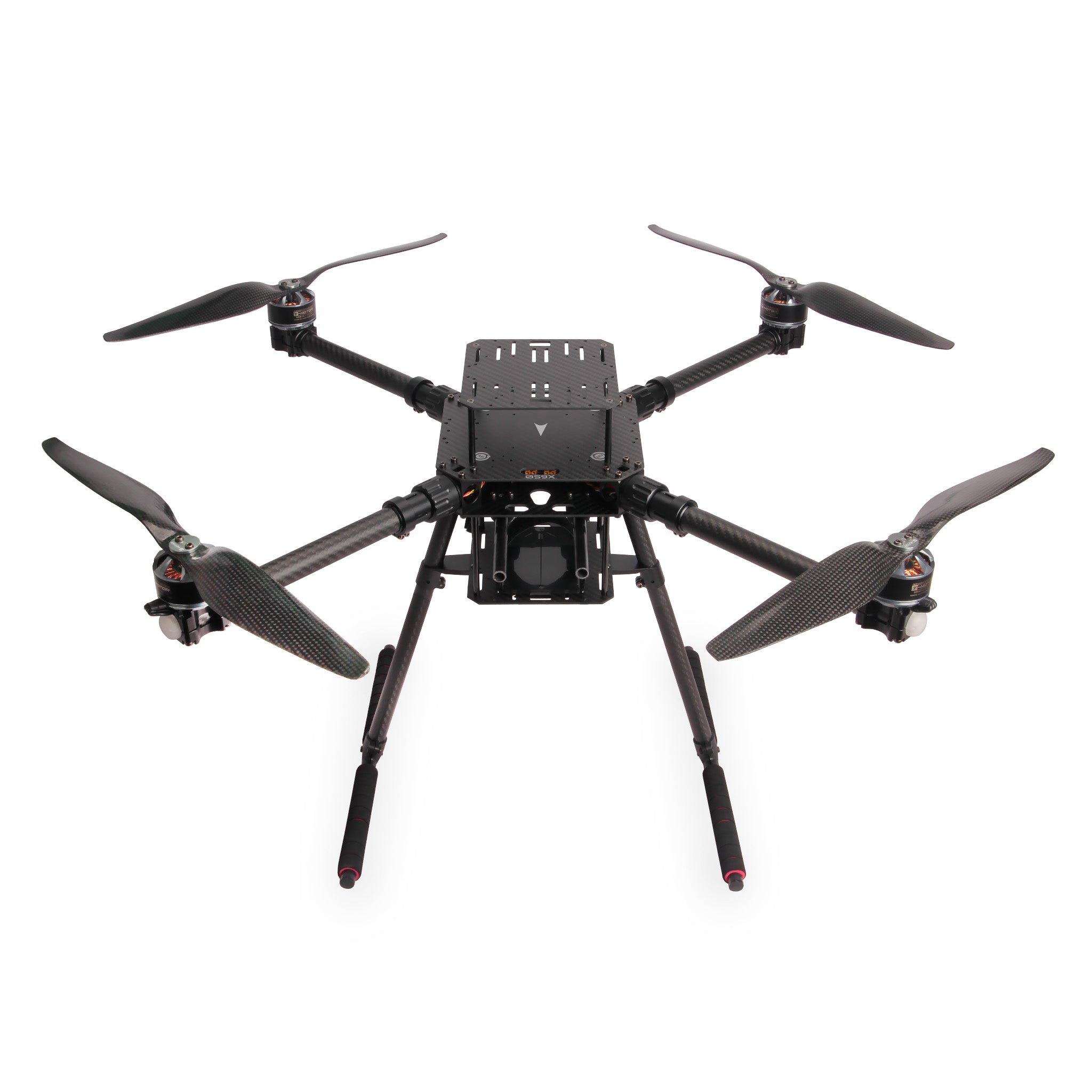

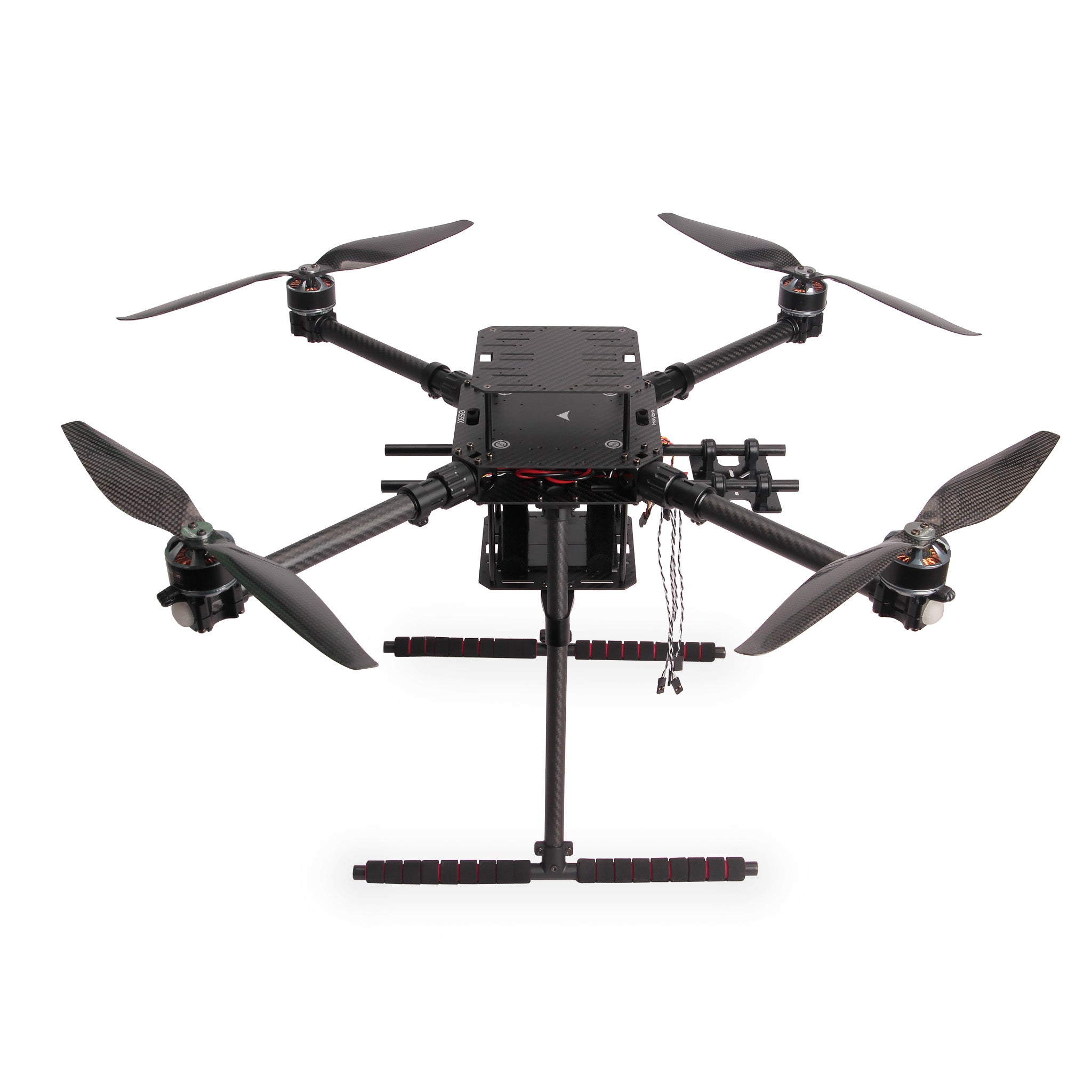

Holybro X650 Kits

Stok kodu: 30179 Kategoriler:

Note: Full X650 Development Kit with Flight Controller, GPS, Telemetry Radio can be purchase here.
Almost Ready-to-Fly (ARF) Kit Feature:

Carbon Fiber frame with foldable aluminum arm connector
New frame design with minimal assembly time, no soldering required
Easy & straightforward installatio

Yurt Dışı Teslimat

Yurtdışı teslimat ürünleri Siparişinizden sonra 3 iş günü içerisinde teslimat tarihi sağlanmaktadır.

Ortalama teslimat süresi 24 iş günüdür.

23,865.60 ₺

Temizle
5 kişi şu anda bu ürünü inceliyor
  • Stoktan Teslim Desteği

Stoktan teslim ürünler 2 iş günü içerisinde kargolanmaktadır.

  • Yurt Dışı Tedarik

Yurt dışı tedarik siparişleriniz 3 iş günü içerisinde teslimat tarihi ile bilgilendirilmektedir.

Ortalama 24 iş günü içerisinde teslimat sağlanmaktadır.

  • DHL UÇAK KARGO

Yurt dışı tedarik ürünlerimiz DHL Uçak kargo yoluyla tedarik edilmektedir. Uçağa teslim edilen ürünler ortalama 7 İş gününde teslim edilmektedir.

  • 1 YIL FABRİKA GARANTİSİ
  • 14 gün içinde İade

Ödeme Seçenekleri

Açıklama

Note: Full X650 Development Kit with Flight Controller, GPS, Telemetry Radio can be purchase here.

Almost Ready-to-Fly (ARF) Kit Feature:

  • Carbon Fiber frame with foldable aluminum arm connector
  • New frame design with minimal assembly time, no soldering required
  • Easy & straightforward installation
  • Spacious platform for easy integration of additional accessories & battery
  • Pre-installed motors, ESCs, and LED with simple XT30 power plugs for PDB
  • Power distribution board (PDB) with XT60 & XT30 plugs
  • Optional depth camera mount for Intel RealSense depth camera
  • Mounting holes ready for Pixhawk Jetson baseboard

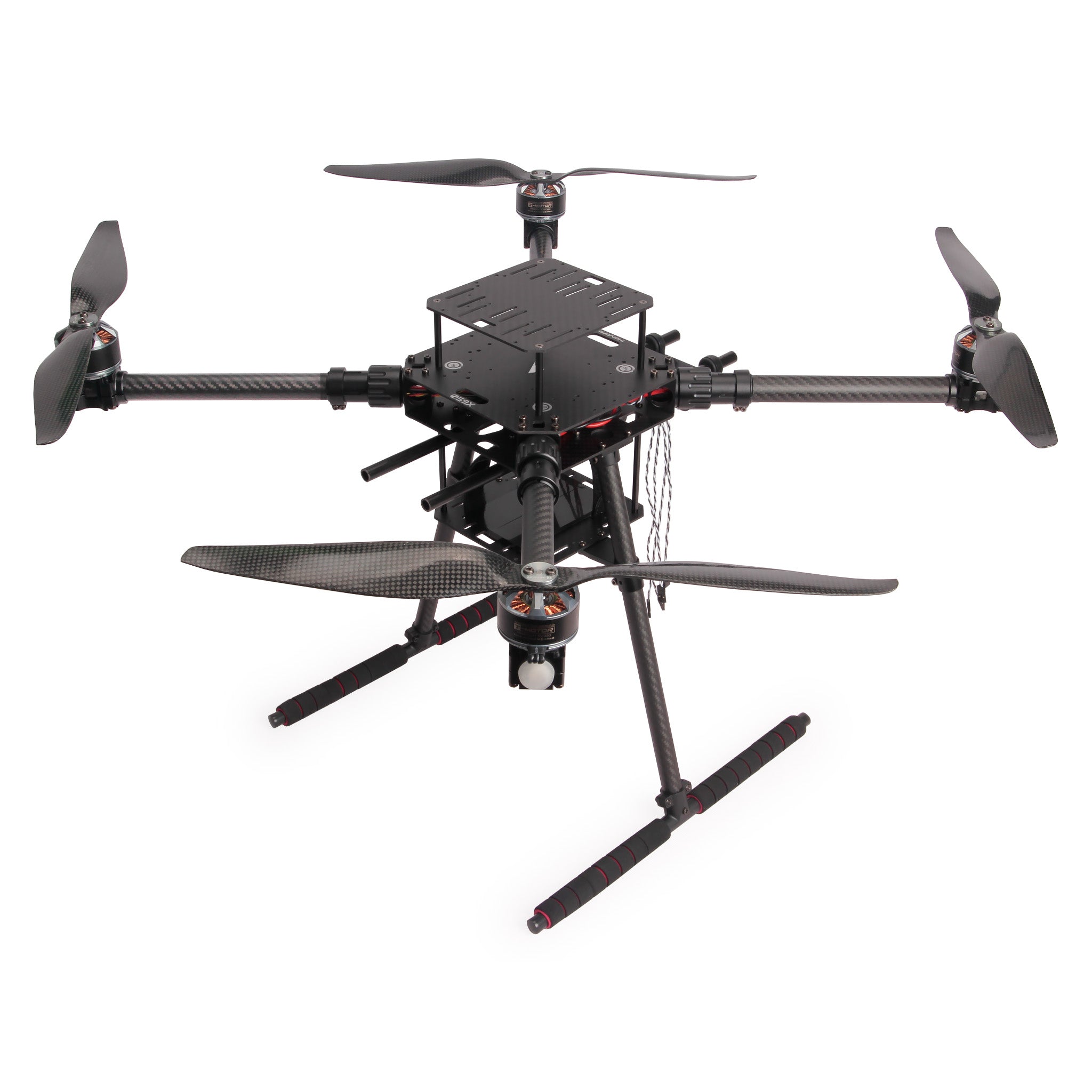

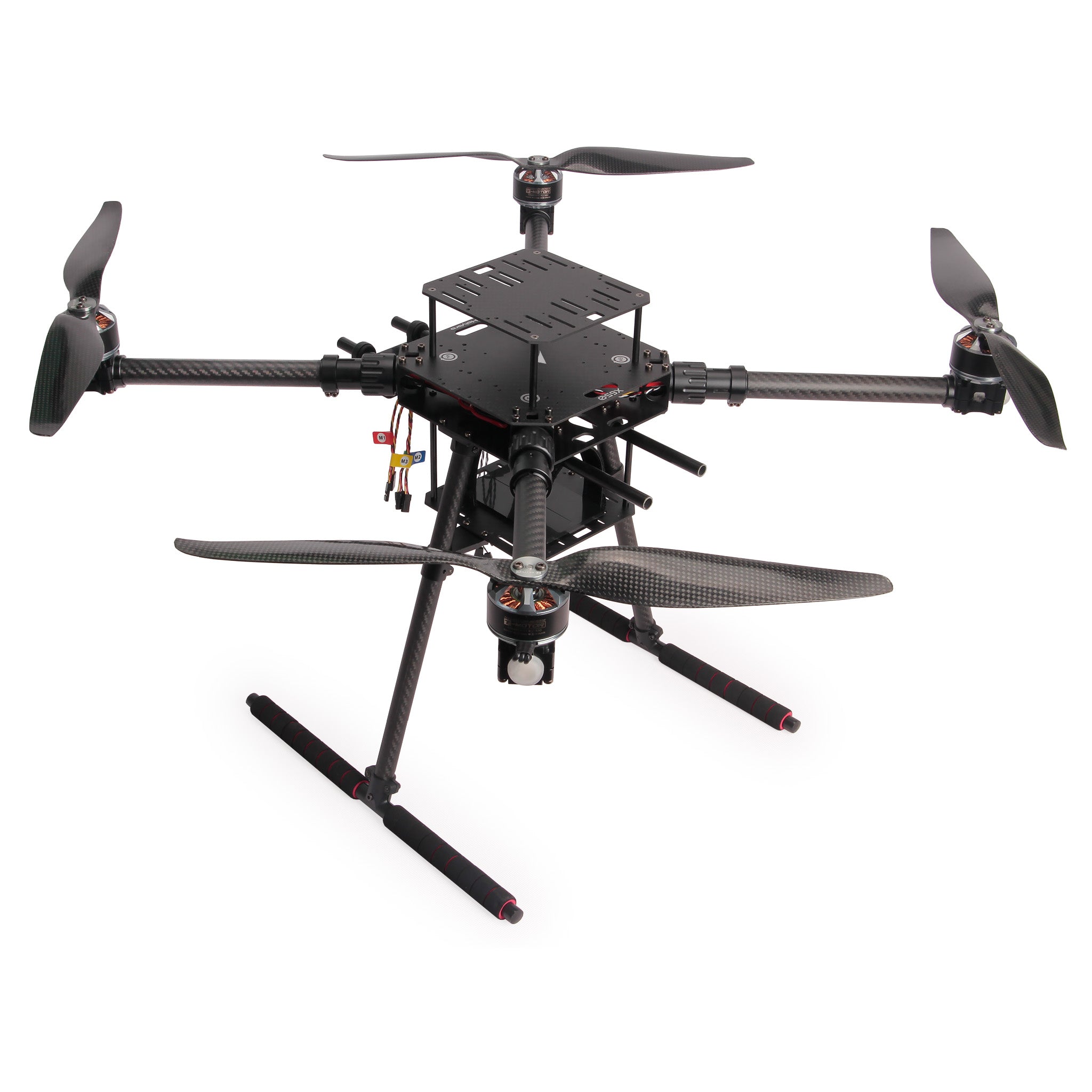

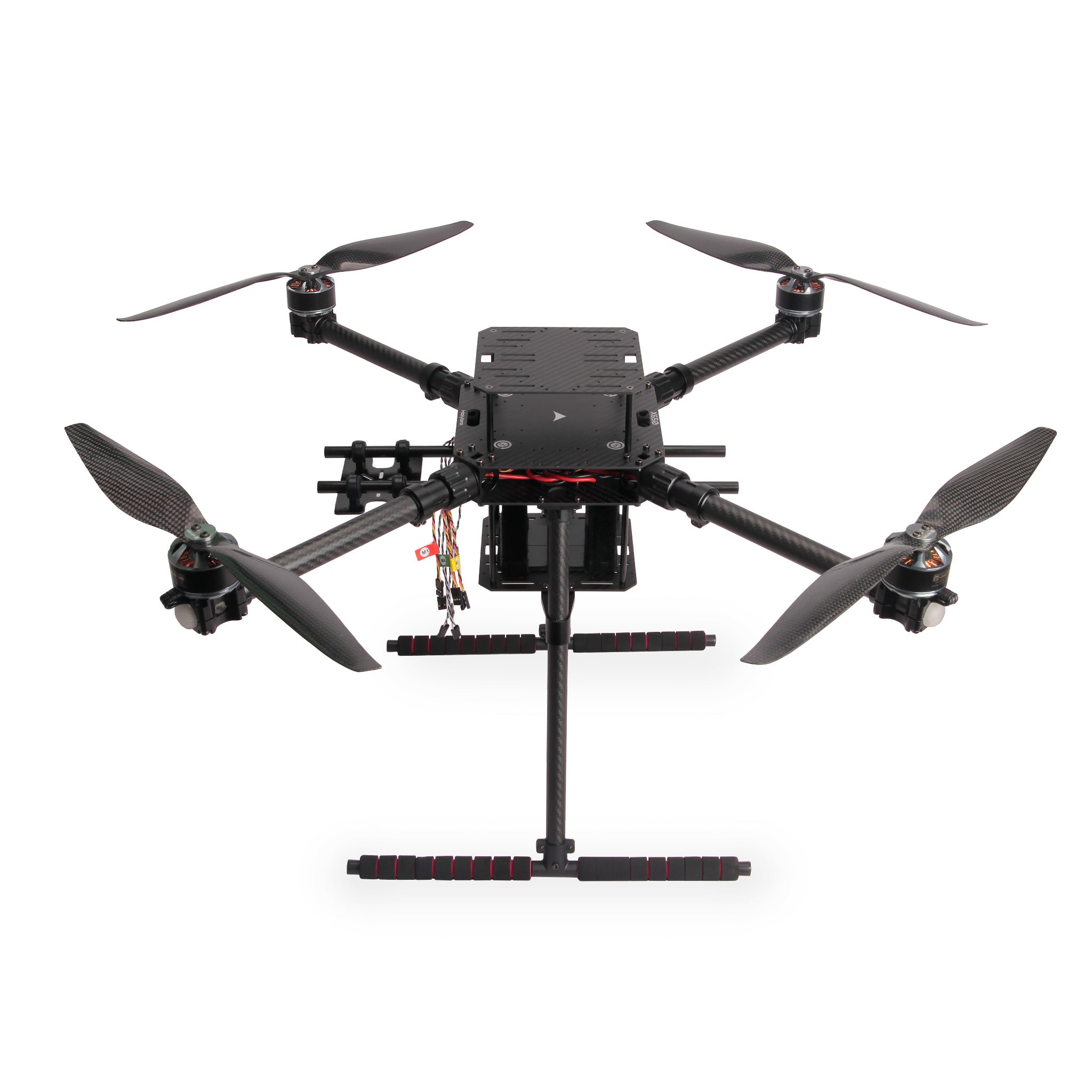

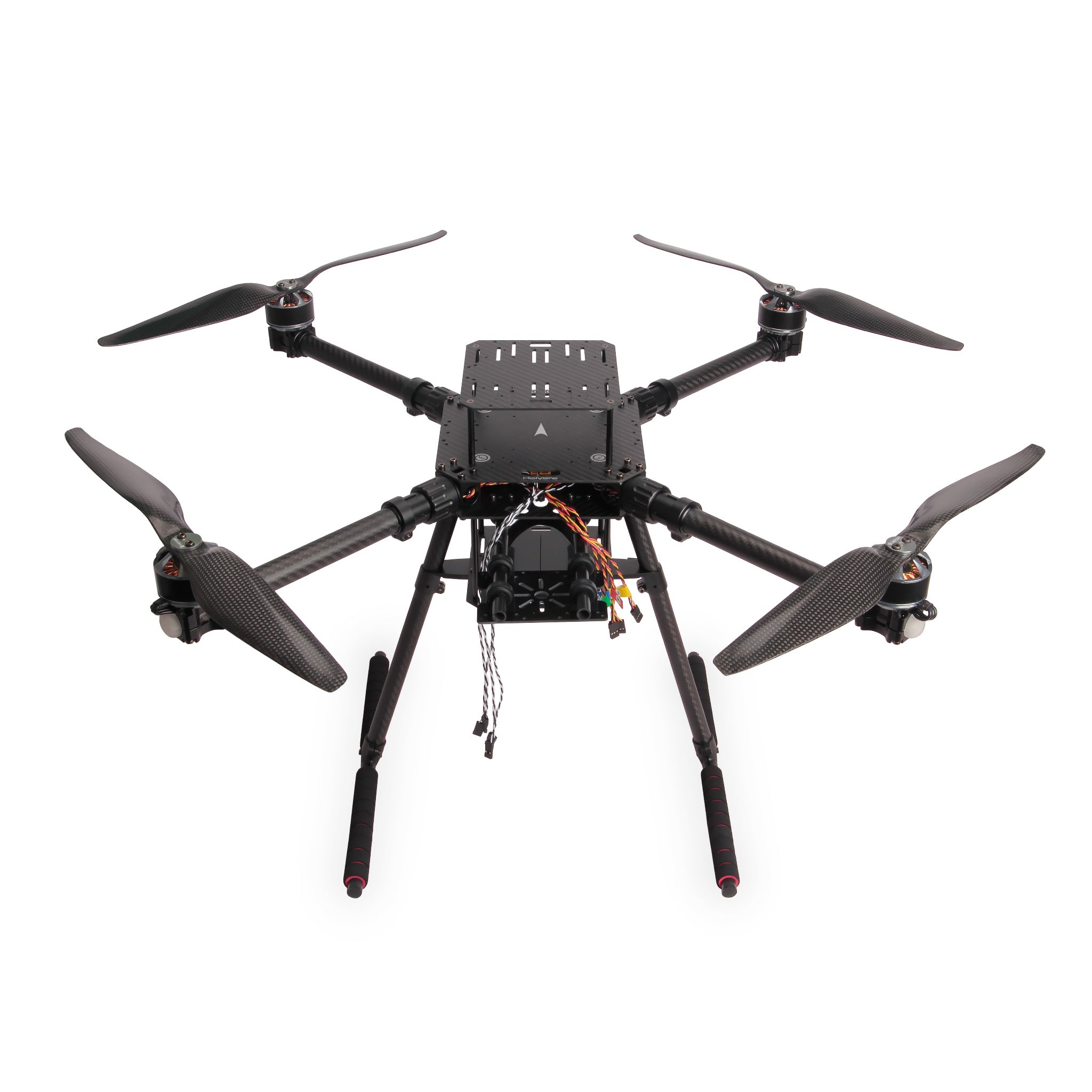

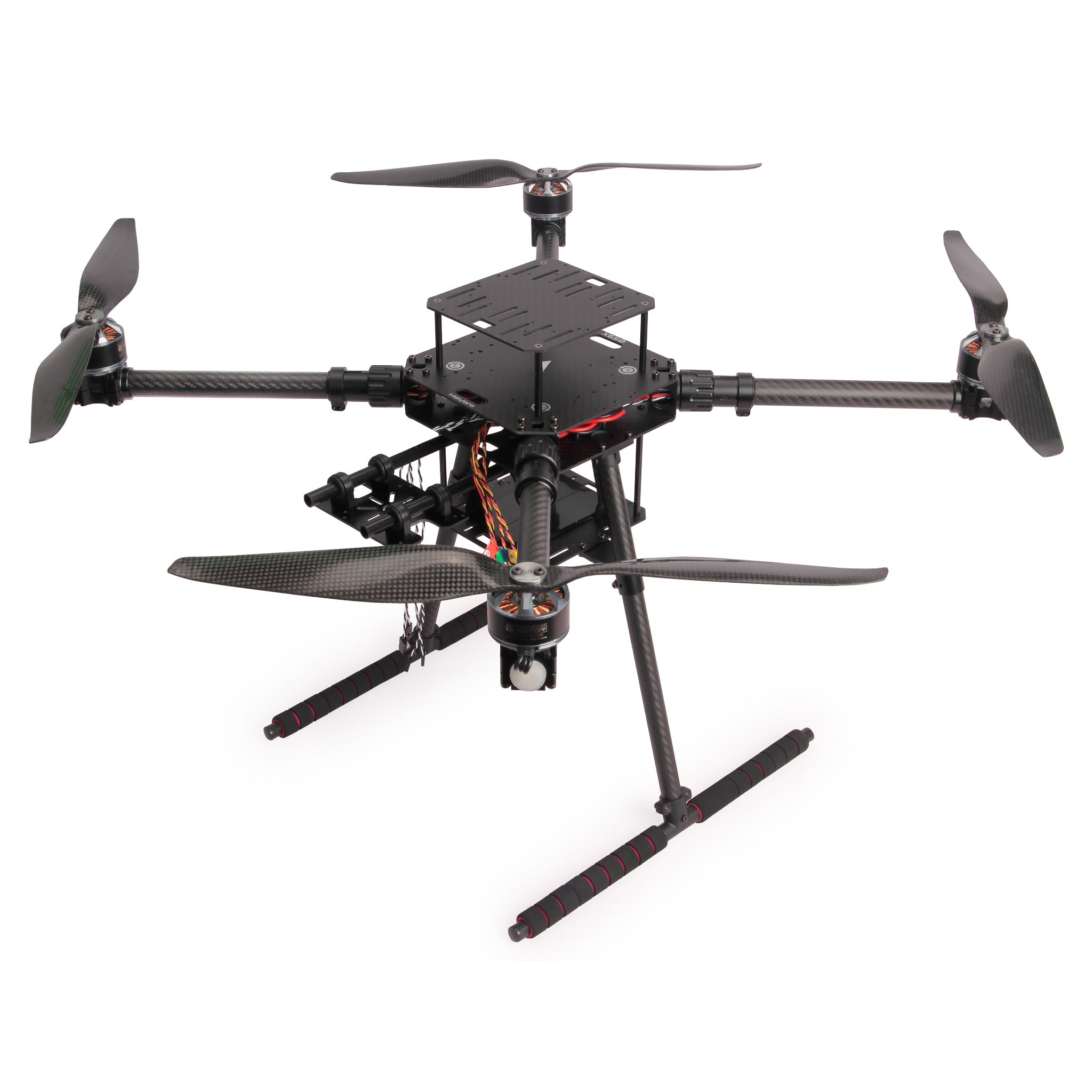

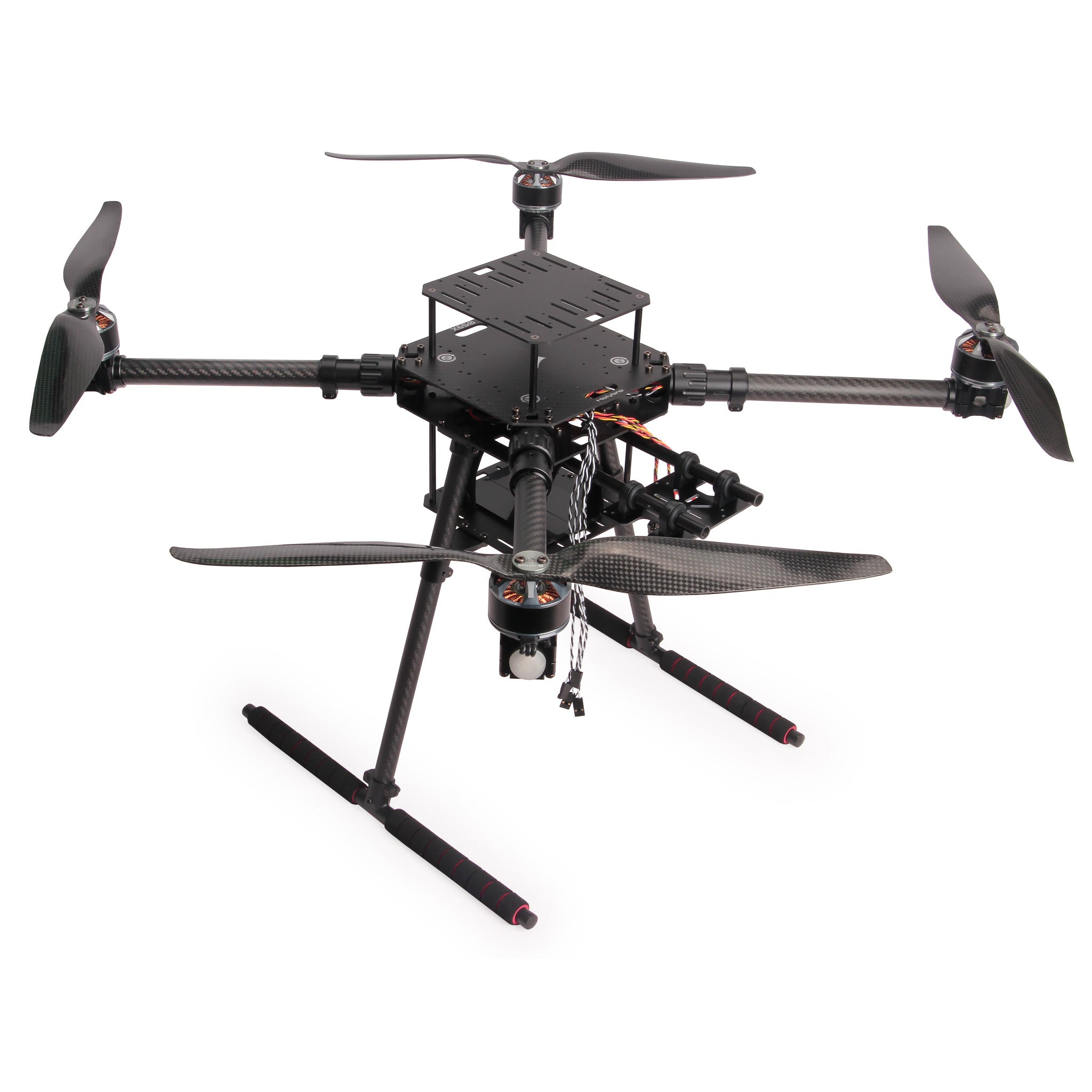

X650 ARF Kit Includes:

  • X650 V2 Frame Kit
  • Preinstalled Items:

    • 4 Motors – Tmotor MN4014 KV330 Motor with XT30 Plug
    • 4 ESCs – Tekko32 F4 45A ESC with XT30 Plugs
    • 4 LED – NeoPixel WS2812 LED (Setup Instruction)
  • Gemfan 1555 Carbon Fiber Propellers (4 pcs)
  • Power Distribution Board (XT60 plug for battery & XT30 plug for ESCs & peripherals)

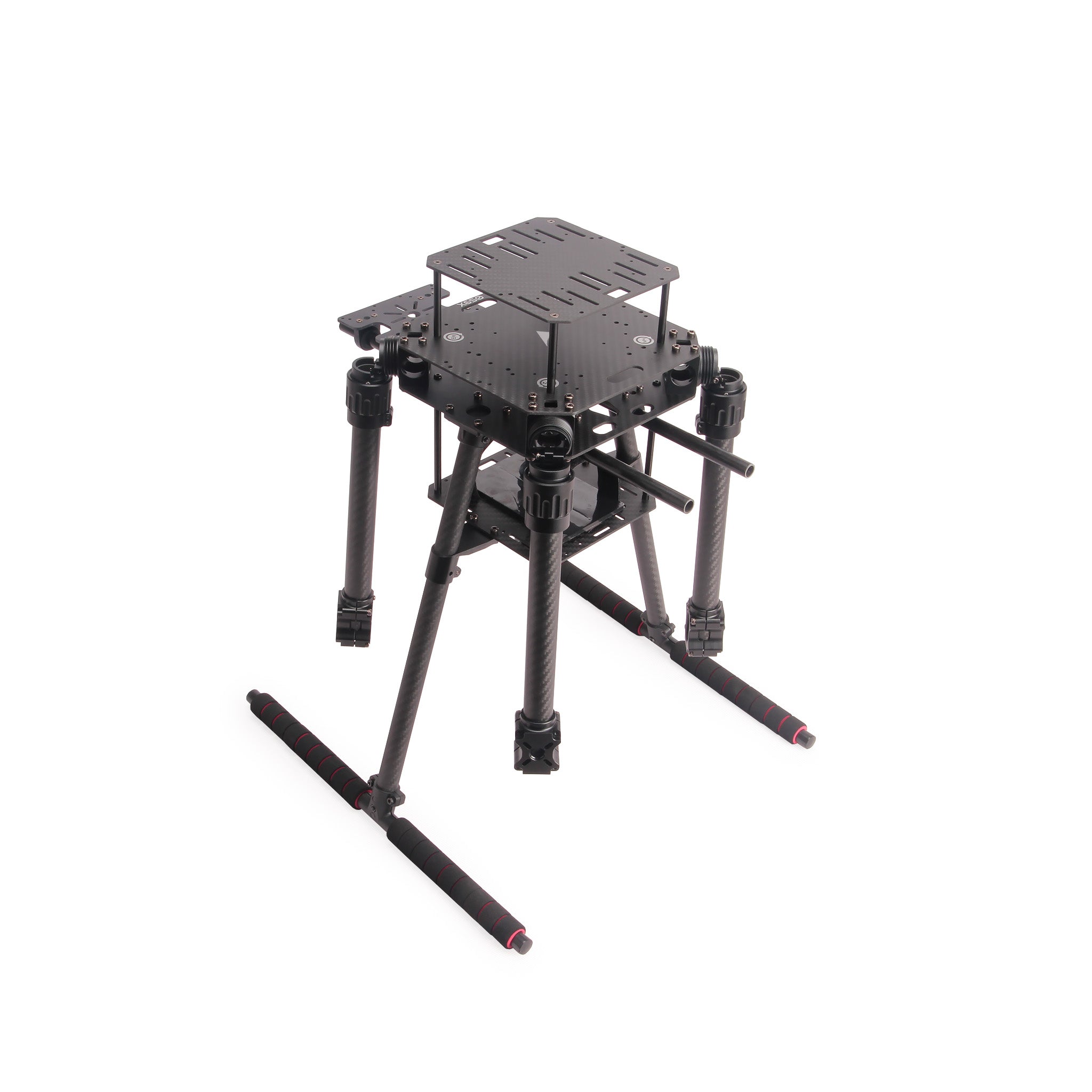

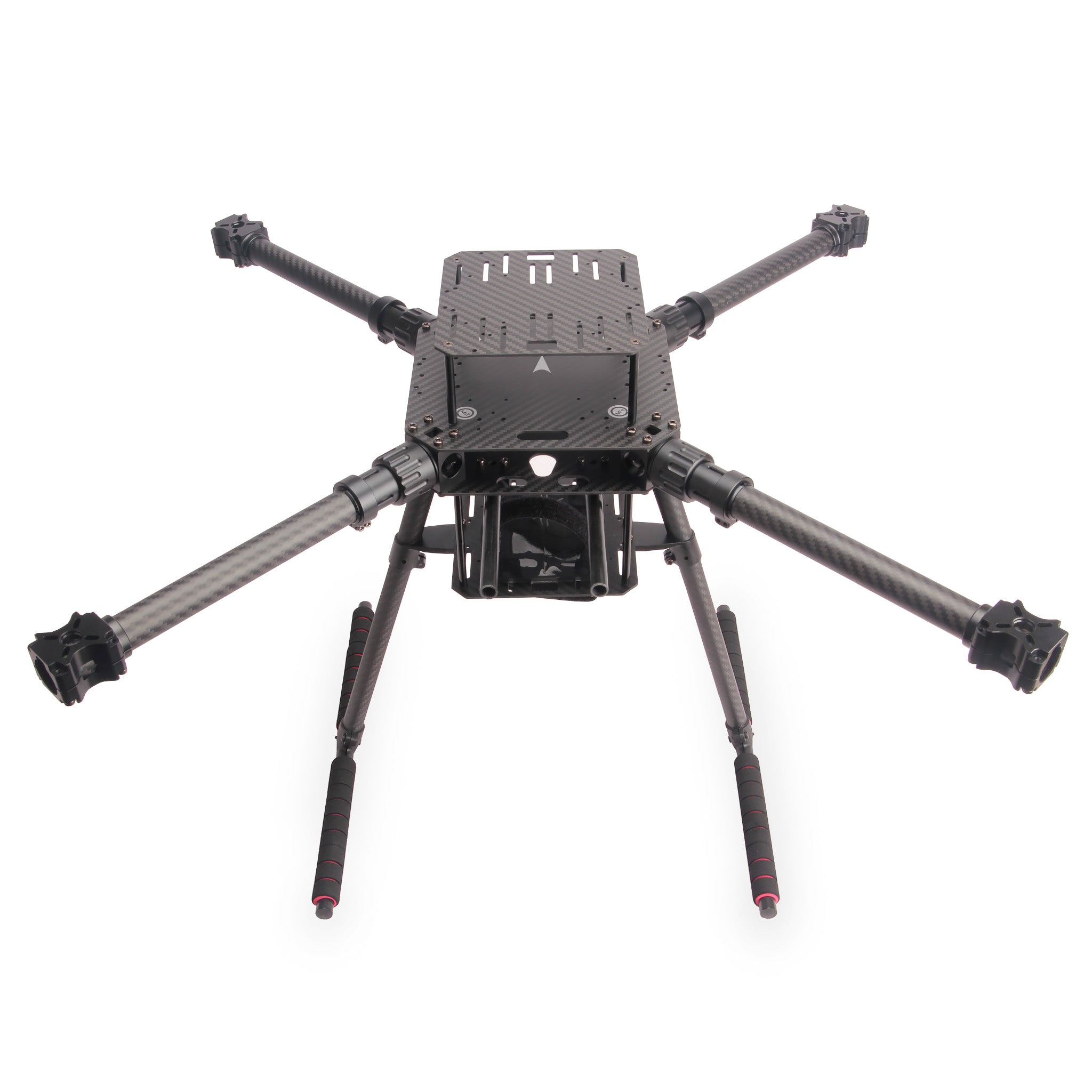

X650 Frame Kit Includes:

  • X650 V2 Frame Only

Frame Details:

  • Wheelbase: 650mm
  • Motor mount

    • Mount pattern: 16-25mm
  • Body – Full Carbon Fiber Top & Bottom plate (160 x 160mm, 2mm thick)
  • Arm – High strength & ultra-lightweight 20mm carbon fiber tubes with newly designed aluminum foldable arm mount
  • Landing gear – 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
  • Upper & Battery Plate – 120mm x 128mm carbon fiber plate for various payload, accessories, or battery.
  • Platform board – With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano
  • Dual 10mm Ø rod x 320 mm long rail mounting system
  • Two battery pads & Straps
  • Hand tools for installation

Flight Time and Payload

  • Flight time: 30 min (Hover with 6S 10000 mAh Battery, no additional payload)
  • Full Kit Weight: 2000g (without battery)
  • Payload:
    • 4.3kg (without battery)
    • 3.5kg (with 5200mAh 750 gram battery)
    • 3.1kg (with 10000mAh 1200 gram battery)
  • Takeoff Weight Limit: 6300g (70% throttle)
  • Battery Recommendation: 6S 5000-12000mAh Lipo Battery with XT60 (Not Included)

Dimension

Recommendation Combination (Not Included):
