Holybro High-Precision Aviation Antenna (HANT-X601A)

Overview

The High-Precision Aviation Antenna (HANT-X601A) is a high-gain, advanced antenna system tailored for professional UAV applications, providing unmatched navigation, tracking, and control across multiple satellite constellations. It supports full-band coverage for GPS (L1/L2/L5), GLONASS (L1/L2/L3), BeiDou (B1/B2/B3), and Galileo (E1/E5a/E5b), ensuring superior global positioning accuracy in diverse operational environments.

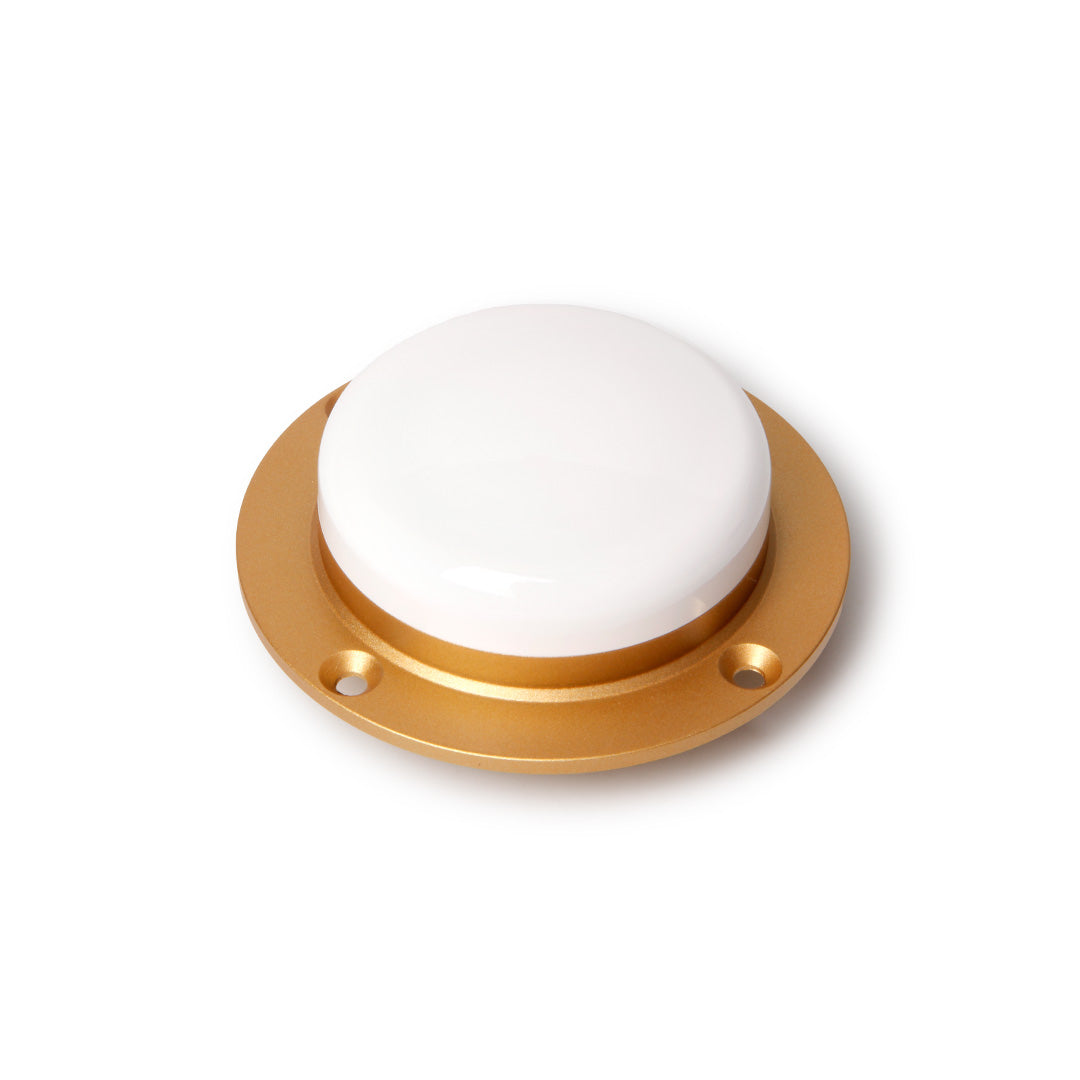

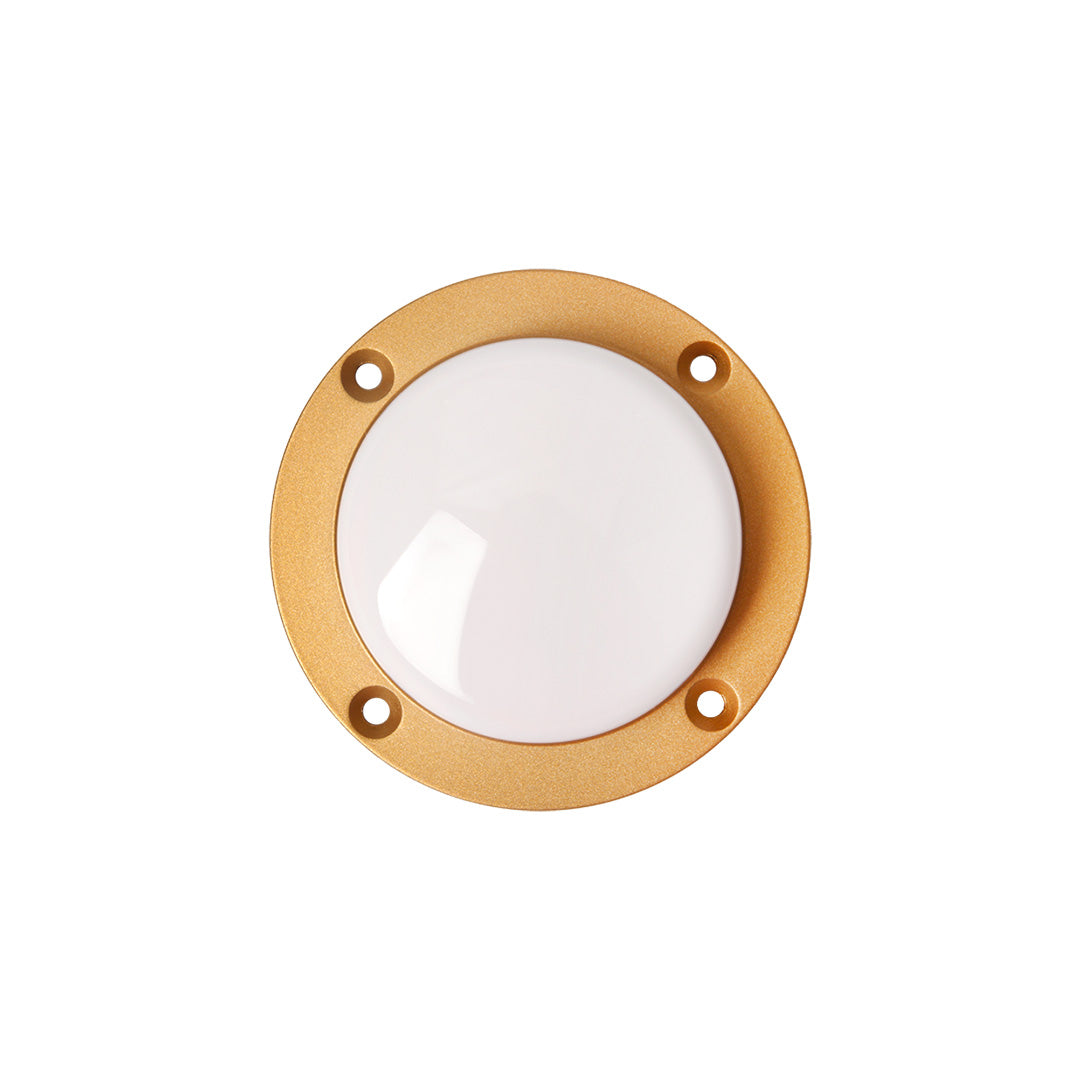

The antenna features a compact aerodynamic design that enables it to be mounted on top of the airframe without significantly increasing drag. 3dBi high-gain patch antenna that outperforms the helical style design. A rubber ring is pre-installed at the base of the antenna plate to create a seal during proper installation, preventing moisture from entering the connector area. Its plastic shell offers high heat resistance, allowing for reliable operation even under prolonged exposure to high temperatures. The internal circuitry is also insulated against heat to ensure optimal performance. Overall, a robust design comes with an IP67 rating, making it suitable for harsh environmental conditions.

Key features

• Multi-Constellation Support: Works with GPS, GLONASS, BeiDou, and Galileo systems for precise global positioning.
• Low Profile Design: The small footprint and disk-shaped outer shell allow this antenna to cut through the air with ease. Provide low drag with great reception performance.
• Wide Frequency Coverage: Offers a broad beam width for consistent performance across various frequencies.
• Advanced LNA Technology: Filters signals effectively, has strong anti-interference capability, and reduces multi-path effects for better signal integrity.

• Durable Design: IP67, built to withstand harsh conditions, offering protection against dust and water for reliable performance in demanding environments.

Typical Applications:

• Drones and UAVs
• Surveying Equipment
• Precision Agriculture
• Autonomous Vehicles
• Geographical Information Systems (GIS)
• High-Precision Navigation Systems

Specification

Antenna

• Frequency range
  • BDS B1/B2/B3, GPS L1/L2/L5
  • GLONASS L1/L2/L3
  • Galileo E1/E5a/E5b
  • L_Band
• Impedance: 50 ohms
• Polarization: right-hand circular polarization
• Antenna axial ratio: ≤3dB
• Horizontal coverage angle: 360°
• Maximum gain: 3dBi

Low Noise Amplifier (LNA)

• Gain: 36±2dB
• Output standing wave ratio: ≤2.0
• Noise figure: ≤2.0dB

Electrical Data

• Working voltage: +3.3V～+12VDC
• Working current: ≤45mA

Mechanical Data

• Antenna size: 75mm75mm26mm (excluding connector cable)
• Weight: ≤200g

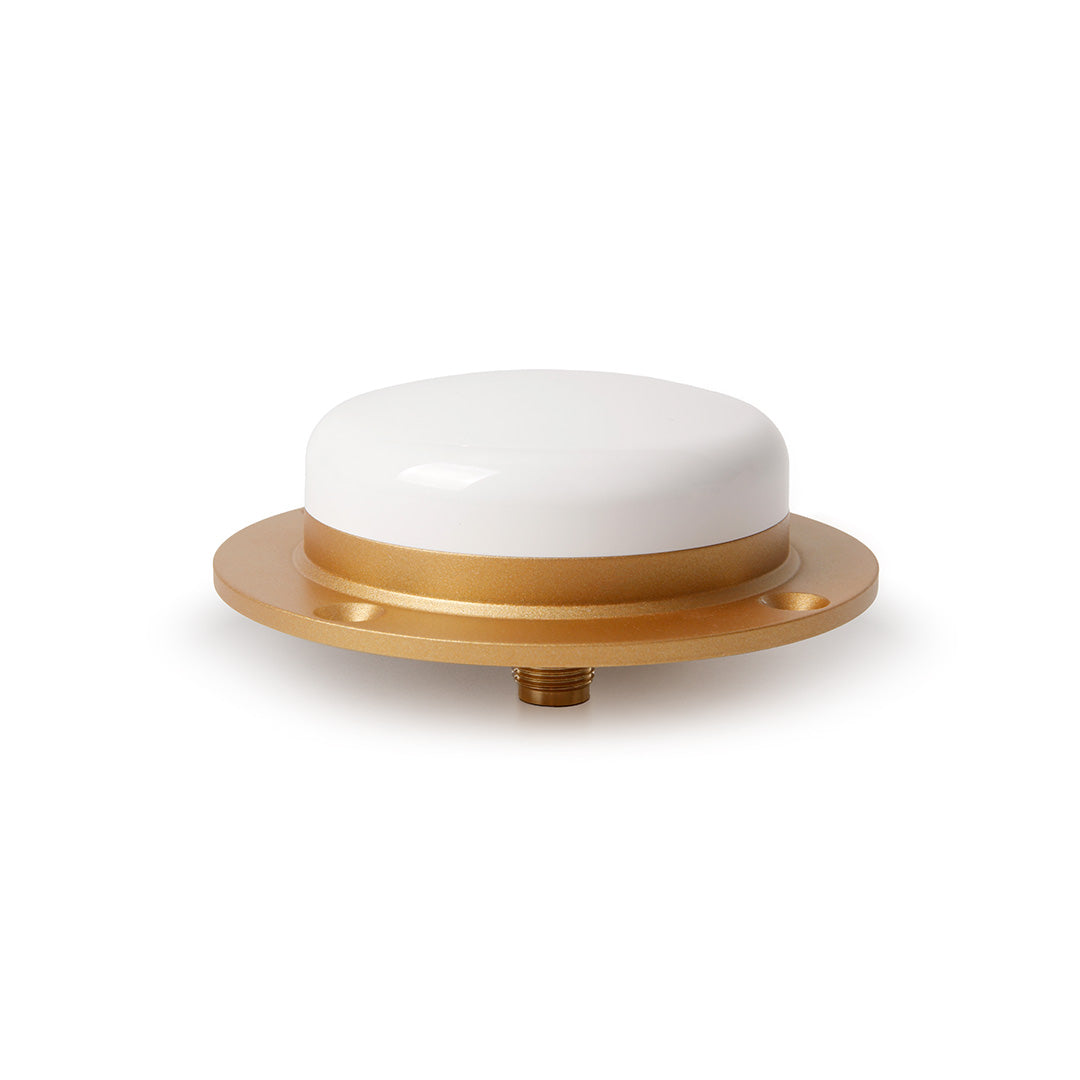

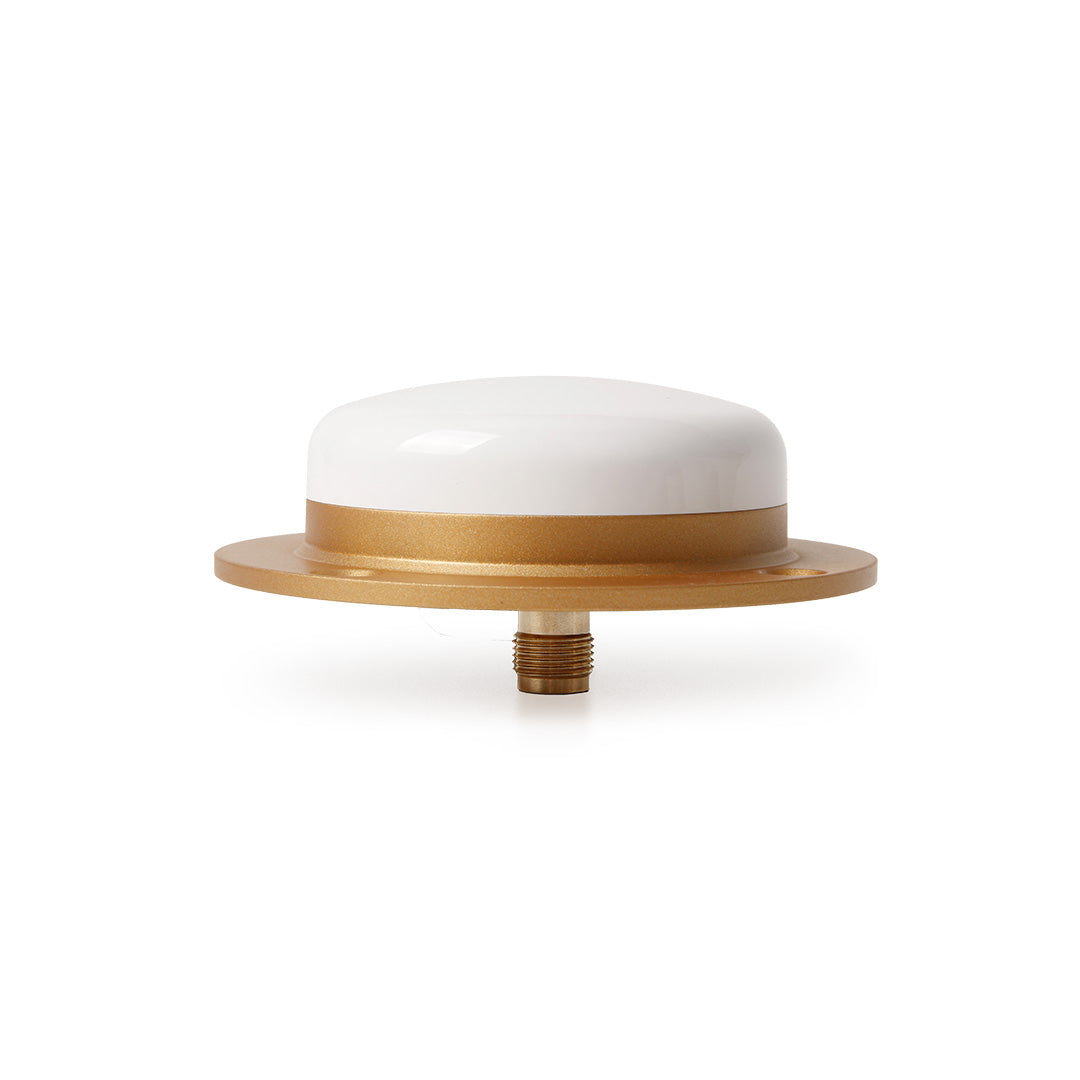

• Connector type: TNC female (Adapter cable with SMA male)
• Working environment:
  • Working temperature: -40℃～+85℃
  • Storage temperature: -55℃～+85℃
  • Humidity: 95% non-condensing
• IP Rating: IP67

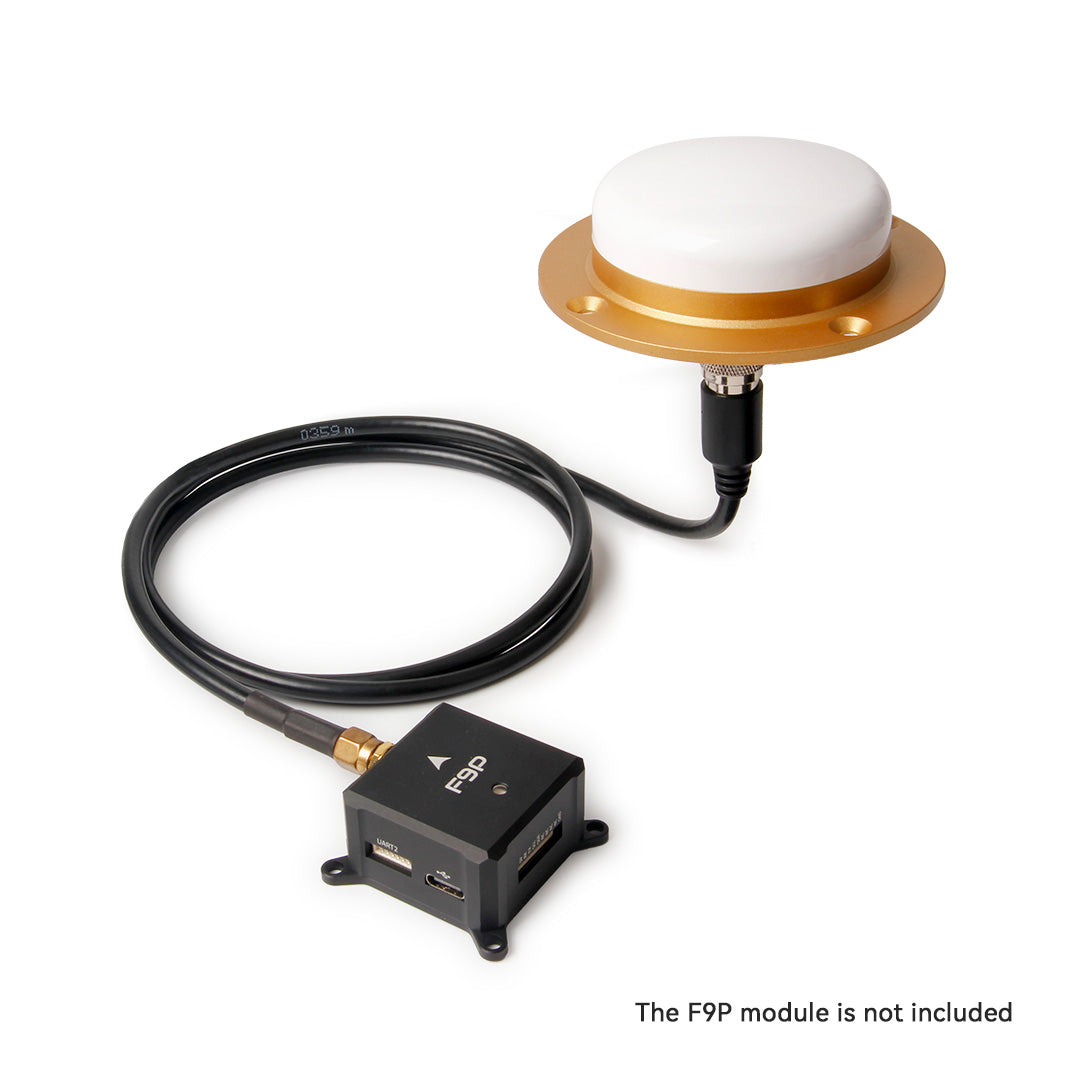

Compatible GNSS Models:

• H-RTK mosaic-H
• H-RTK Unicore UM982
• DroneCAN H-RTK F9P Helical
• H-RTK F9P Helical
• Any GNSS system using similar frequency bands and an SMA connector

Downloads:

• HANT-X601A Datasheet

Package Included:

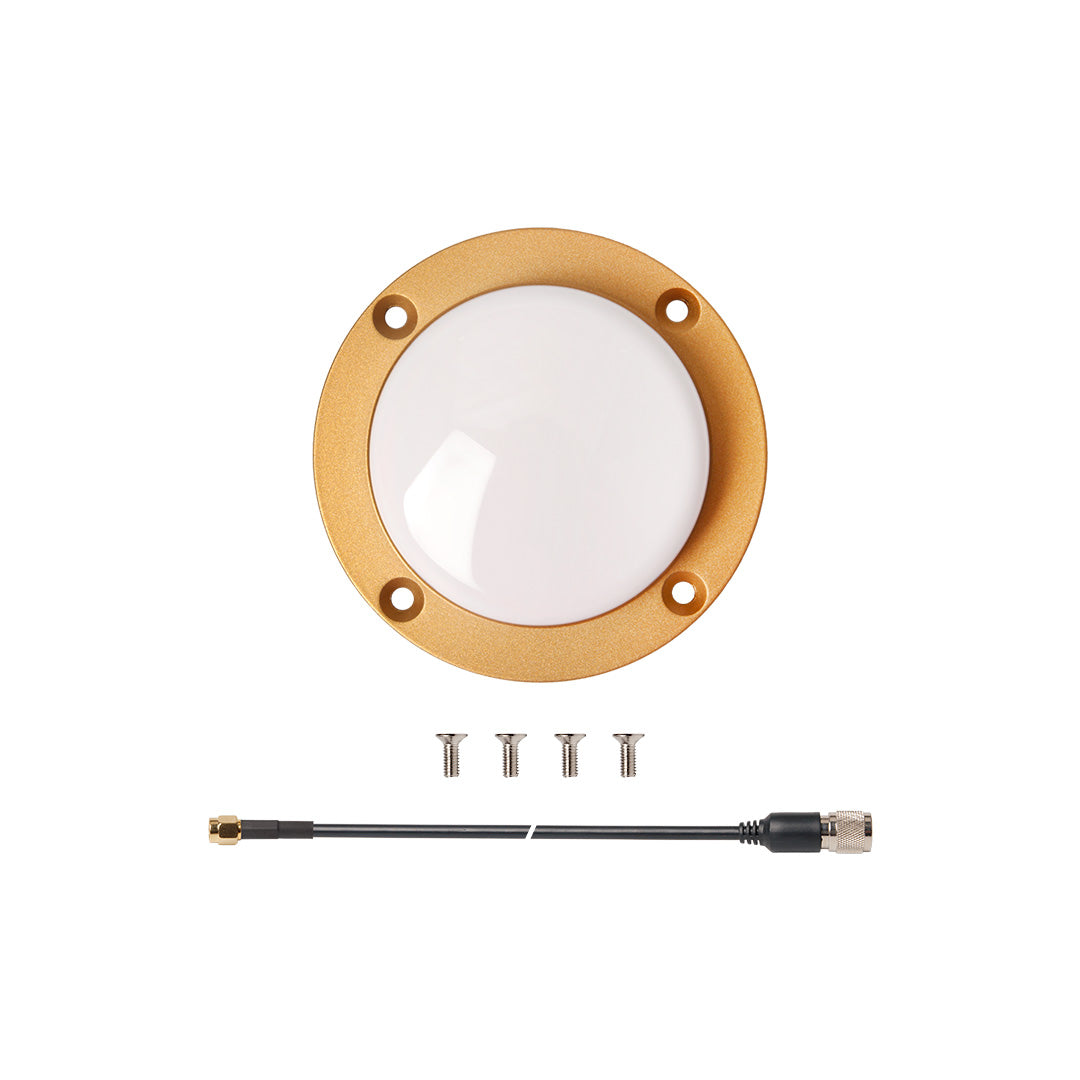

• 1x High-Precision Aviation Antenna

• 4x M4 screws
• 1x SMA male to TNC female coaxial cable
