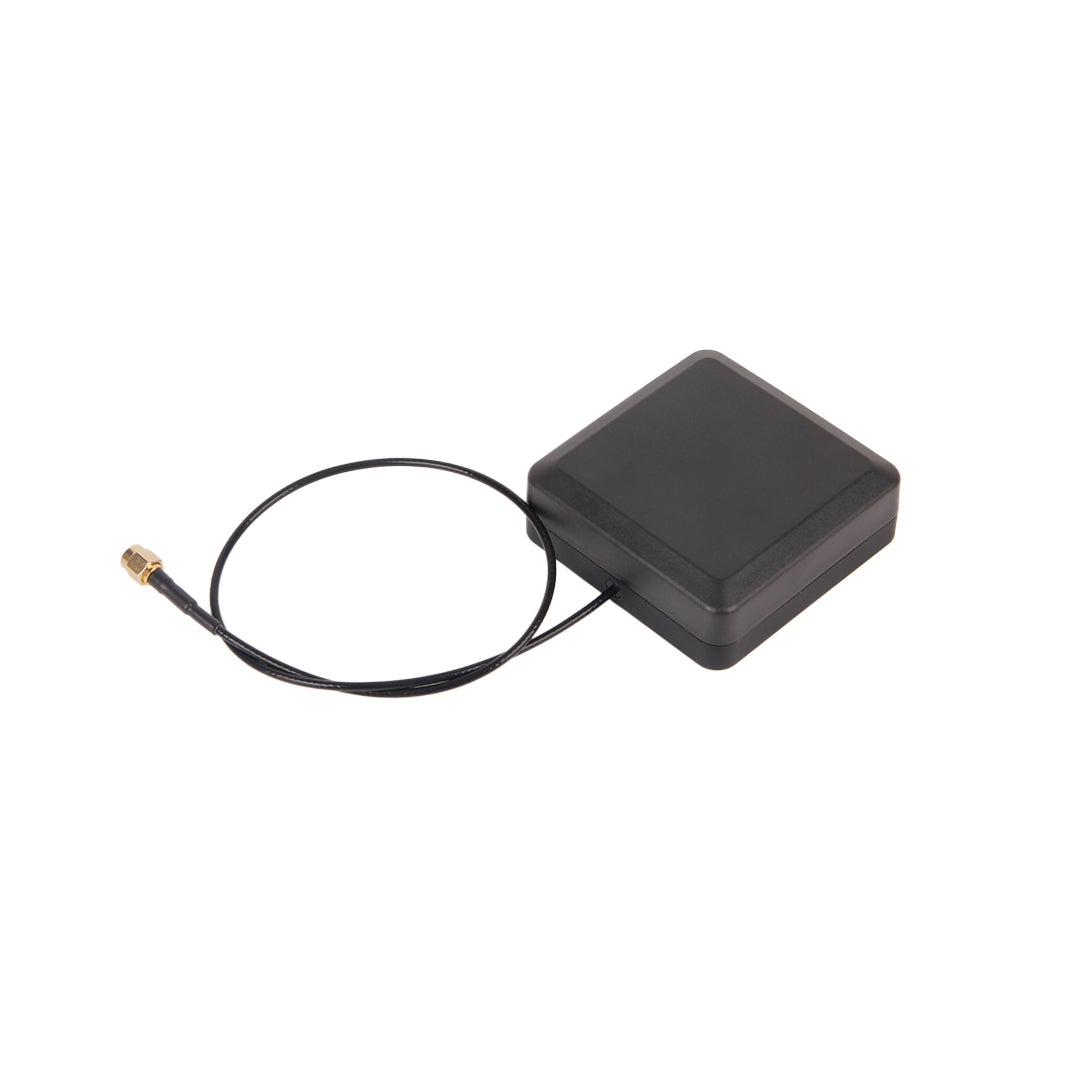

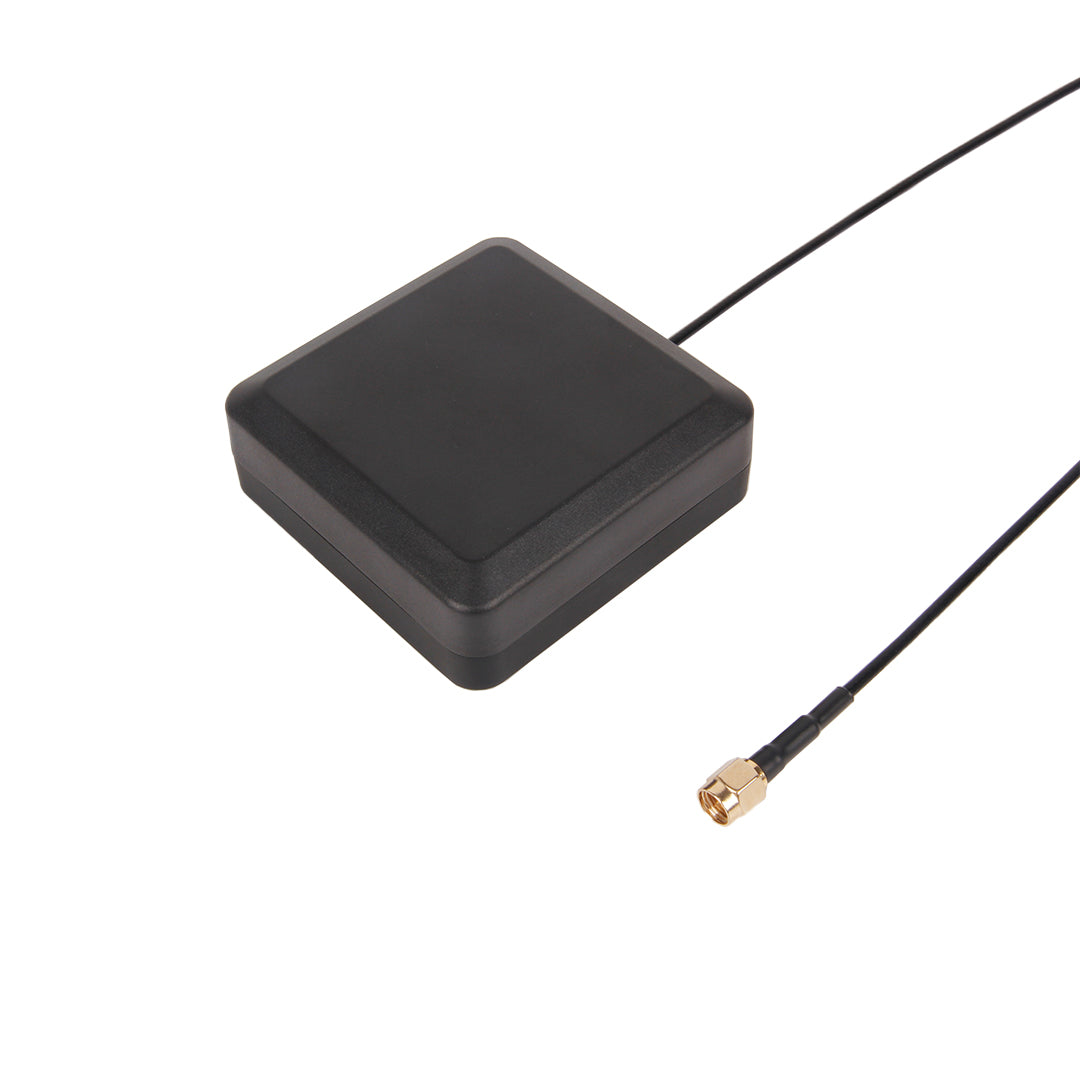

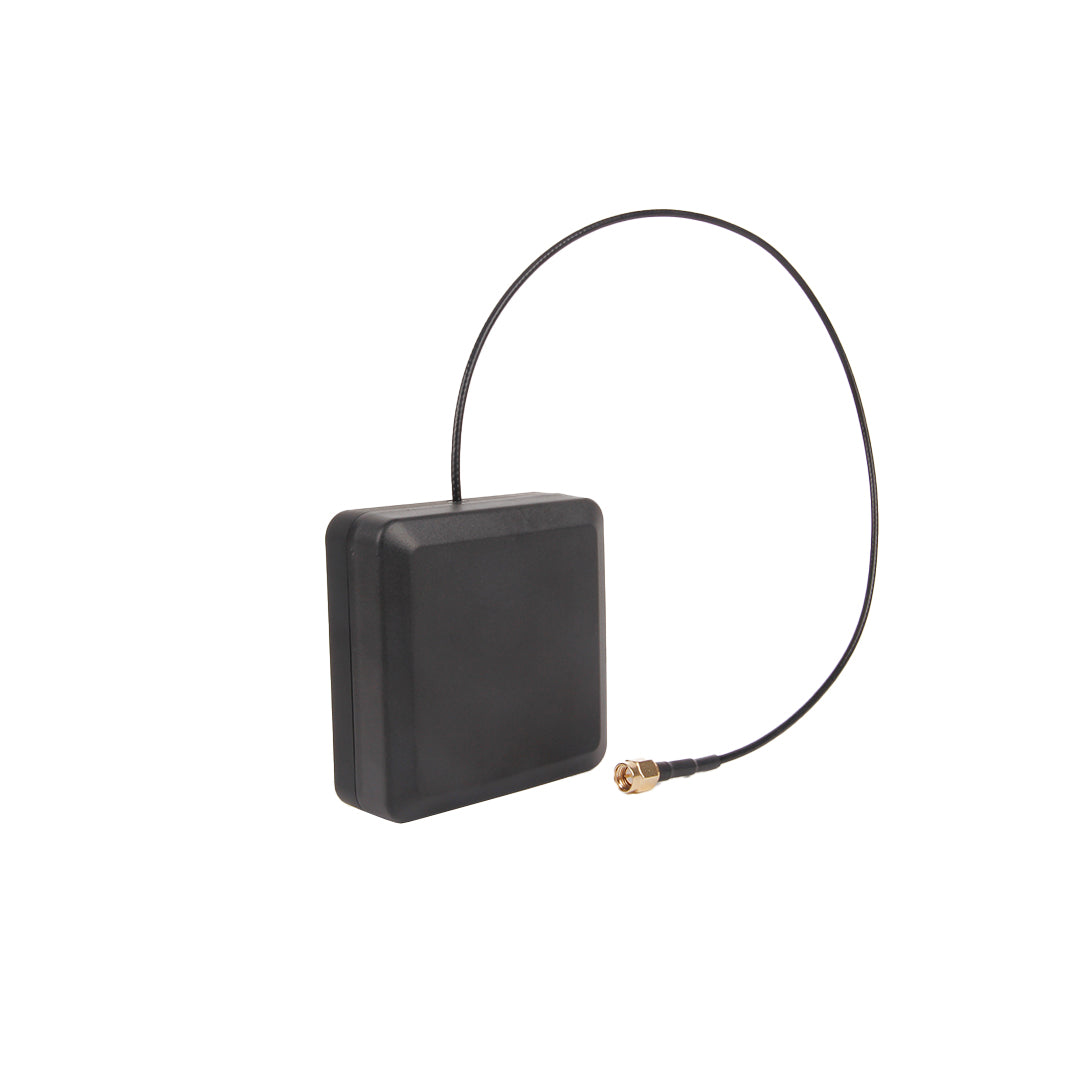

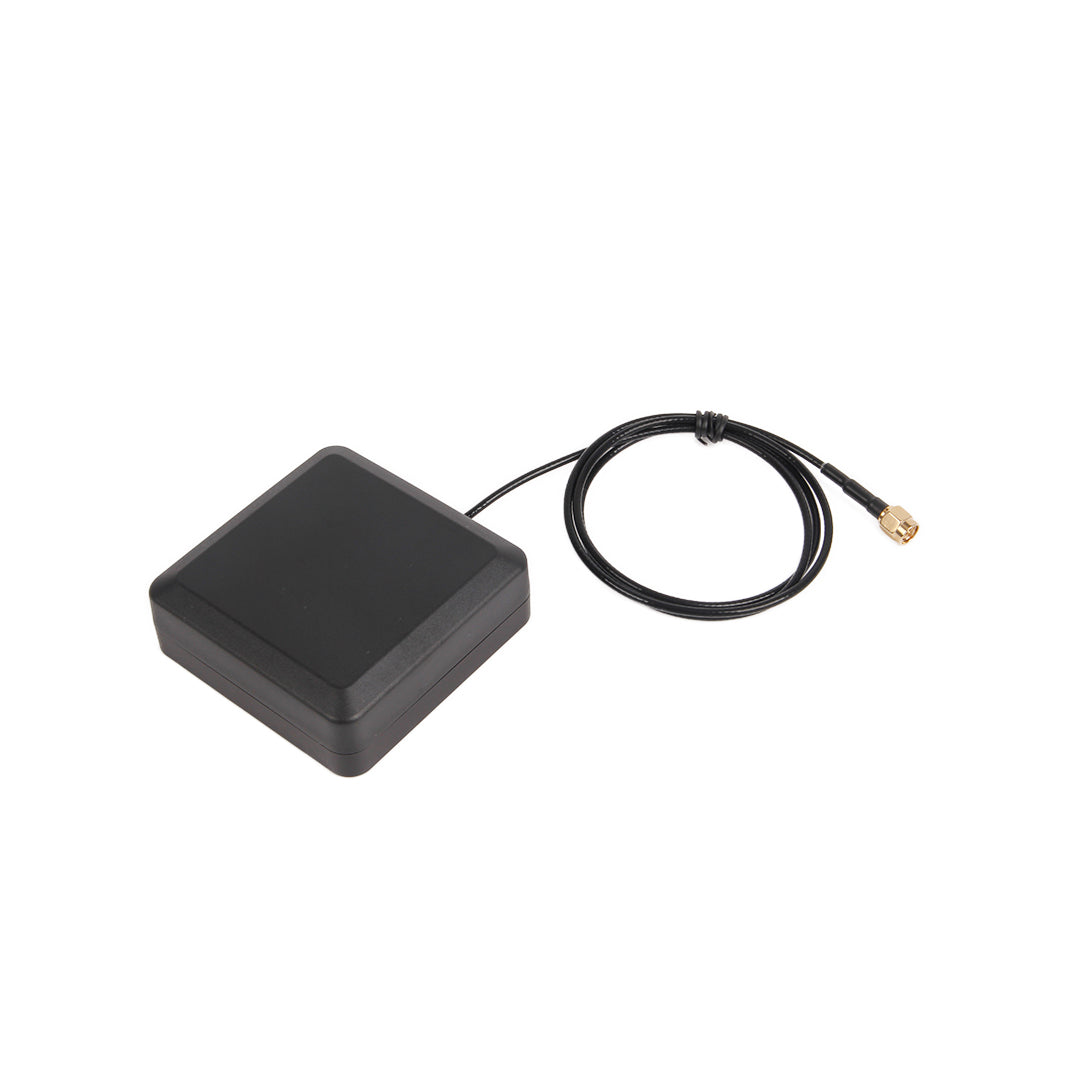

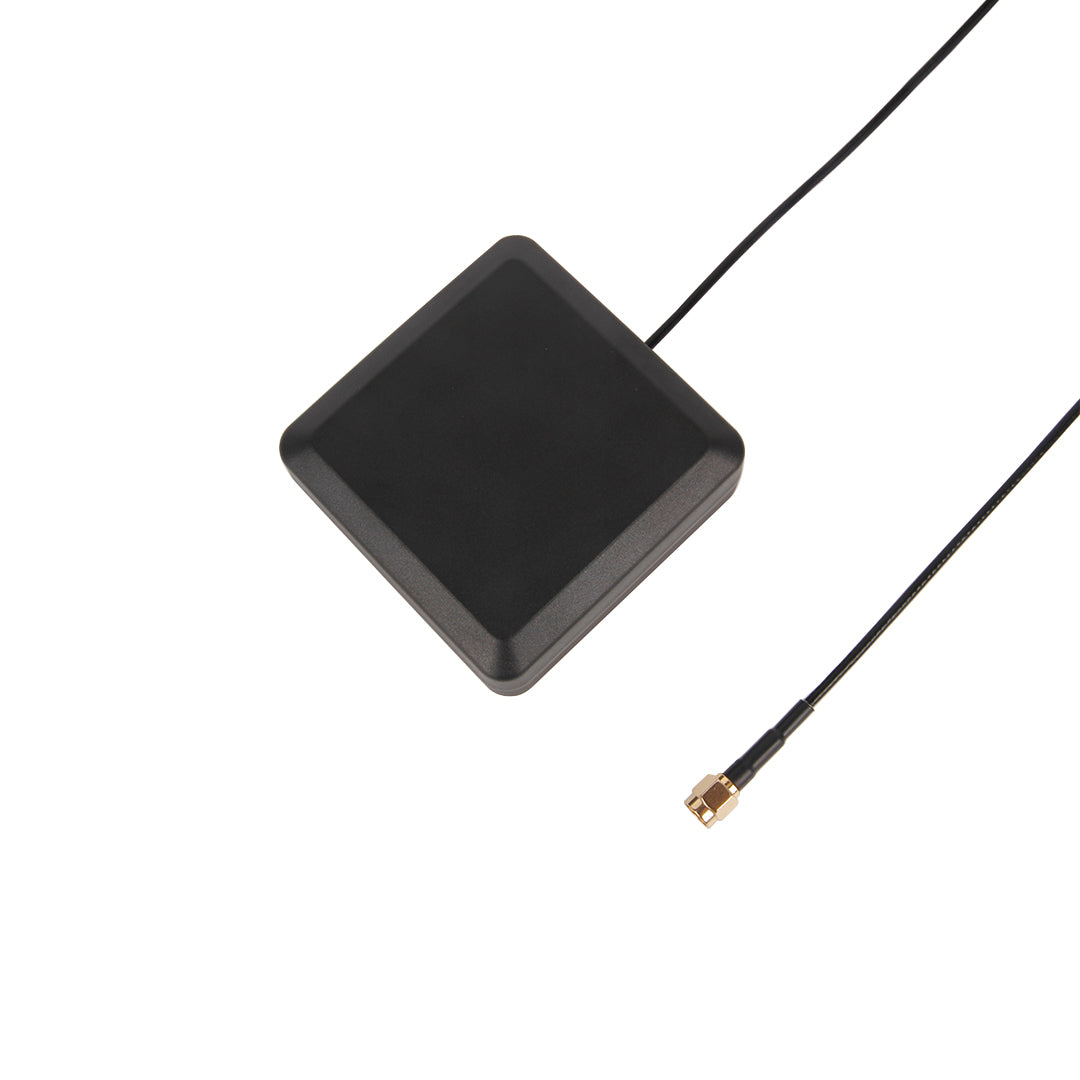

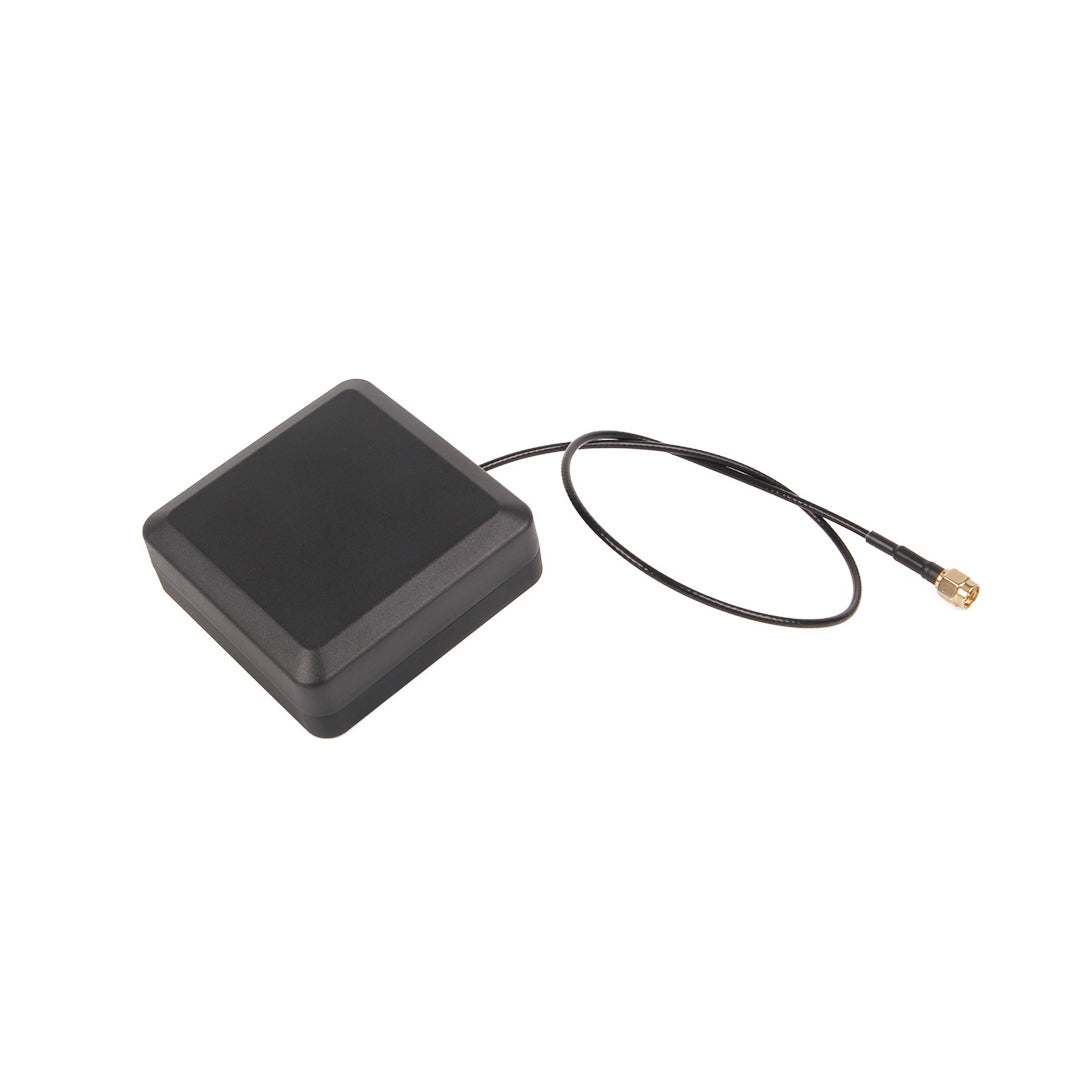

Holybro High-Precision Vertical Array Patch Antennas (IP67)

Overview

The High-Precision Vertical Array Patch Antenna is a high-gain, advanced antenna system tailored for professional UAV applications, providing unmatched navigation, tracking, and control across multiple satellite constellations. It supports full-band coverage for GPS (L1/L2/L5), GLONASS (L1/L2/L3), BeiDou (B1/B2/B3), and Galileo (E1/E5a/E5b/E6), ensuring superior global positioning accuracy in diverse operational environments.

At its core, the system integrates a durable stacked ceramic patch antenna, further enhanced by four precision-crafted vertical antenna arrays positioned on each side. This innovative design maximizes signal reception and accuracy, while effectively minimizing the impact of signal degradation in complex terrains and urban areas.

Delivering 4.5 dBi high-gain performance with ultra-low signal loss, the antenna also boasts a wide beam width that covers a broad frequency range with impressive marginal gain. The advanced Low Noise Amplifier (LNA) features enhanced signal filtering, strong out-of-band rejection, reduced electromagnetic interference, and robust multi-path reduction capability. With its IP67-rated durability, the antenna is designed to perform reliably in the harshest environments, ensuring long-lasting performance in demanding applications.

Key features

• Multi-Constellation Support: Works with GPS, GLONASS, BeiDou, and Galileo systems for precise global positioning.
• Vertical Array Design: Four vertical antennas combined with a centrally stacked ceramic patch enhance signal reception and minimize degradation in challenging environments.
• High-Gain Performance: Delivers 4.5 dBi gain with minimal signal loss, ensuring strong and long-range connectivity.
• Wide Frequency Coverage: Offers a broad beam width for consistent performance across various frequencies.
• Advanced LNA Technology: Filters signals effectively, strong anti-interference capability, and reduces multi-path effects for better signal integrity.

• Durable Design: IP67, built to withstand harsh conditions, offering protection against dust and water for reliable performance in demanding environments.

Typical Applications:

• Drones and UAVs
• Surveying Equipment
• Precision Agriculture
• Autonomous Vehicles
• Geographical Information Systems (GIS)
• High-Precision Navigation Systems

Specification

Antenna

• Frequency range
  • BDS B1/B2/B3, GPS L1/L2/L5
  • GLONASS L1/L2/L3
  • Galileo E1/E5a/E5b/E6
• Impedance: 50 ohms
• Polarization: right-hand circular polarization
• Antenna axial ratio: ≤3dB
• Horizontal coverage angle: 360°
• Maximum gain: 4dBi

Low Noise Amplifier (LNA)

• Gain: 33±2dB
• Output standing wave ratio: ≤2.0
• Noise figure: ≤2.0dB

Electrical Data

• Working voltage: +3.3V～+12VDC
• Working current: ≤60mA

Mechanical Data

• Antenna size: 75mm75mm26mm (excluding connector cable)

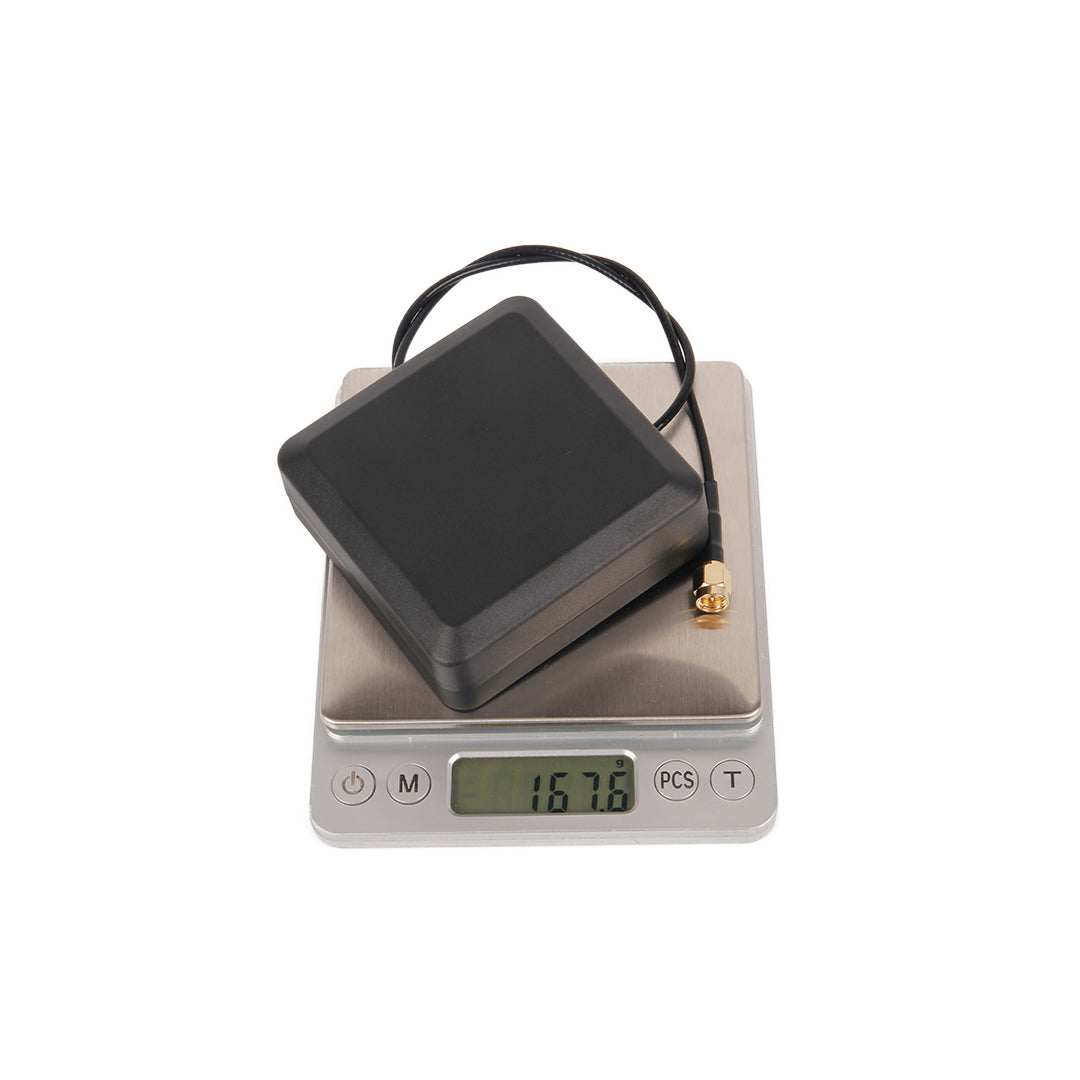

• Weight: ≤180g
• Connector type: SMA-J, RG316 black cable
• Working environment:
  • Working temperature: -40℃～+85℃
  • Storage temperature: -55℃～+85℃
  • Humidity: 95% non-condensing
• IP Rating: IP67

Dimension

Compatible GNSS Models:

• H-RTK mosaic-H
• H-RTK Unicore UM982
• DroneCAN H-RTK F9P Helical
• H-RTK F9P Helical
• Any GNSS system using similar frequency bands and an SMA connector

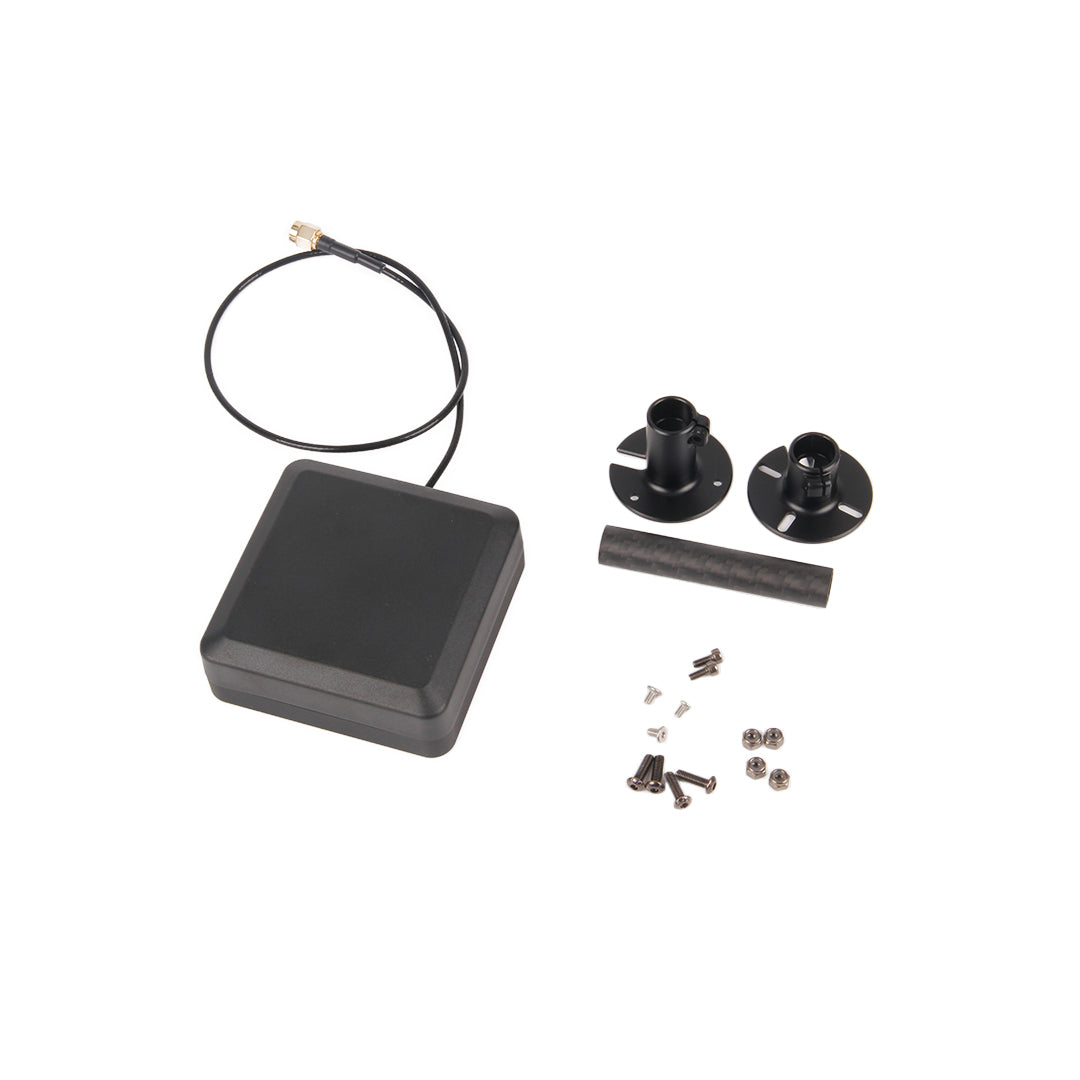

Package Included:

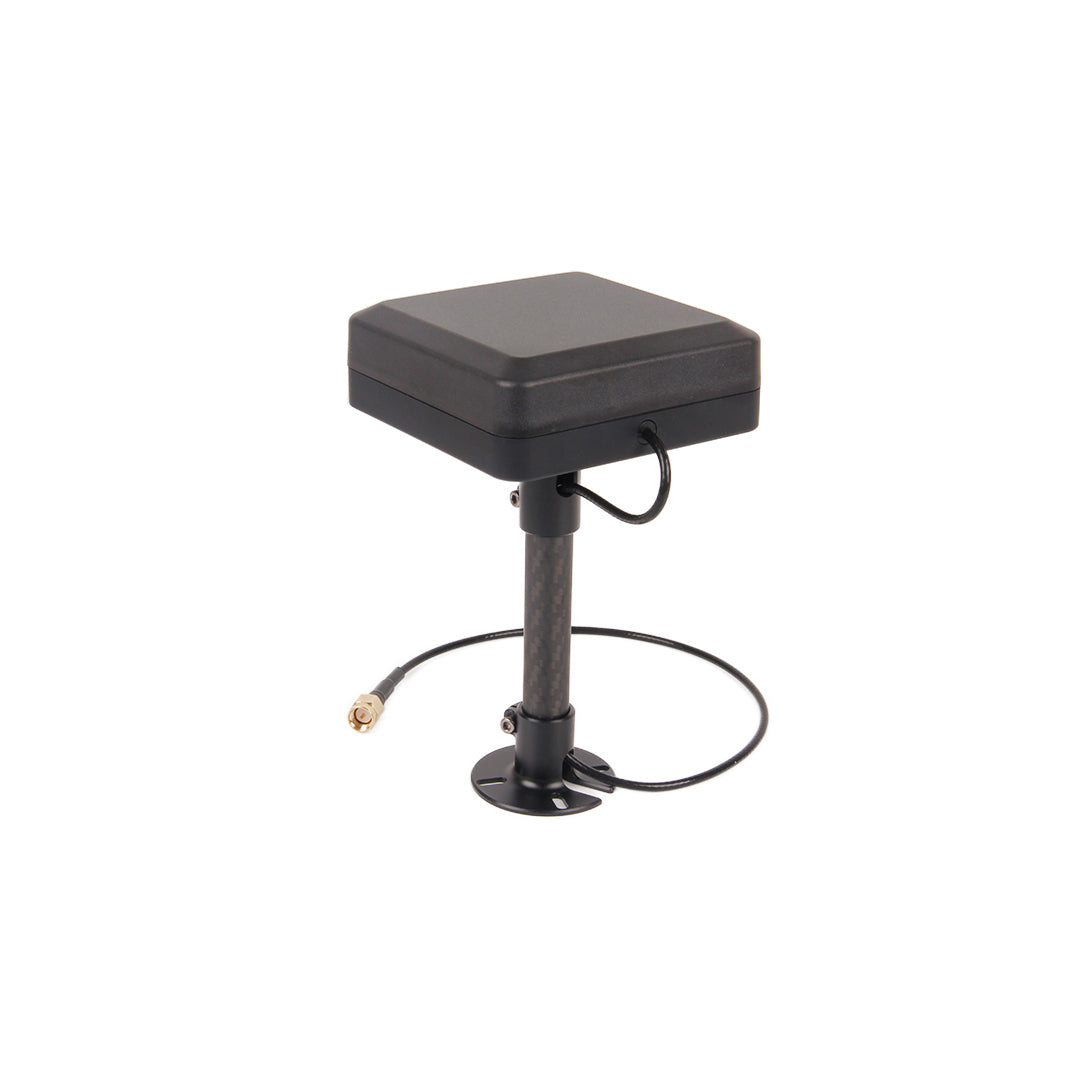

• 1x High-Precision Vertical Array Patch Antennas
• 1x Fixed Carbon Fiber GPS mount
